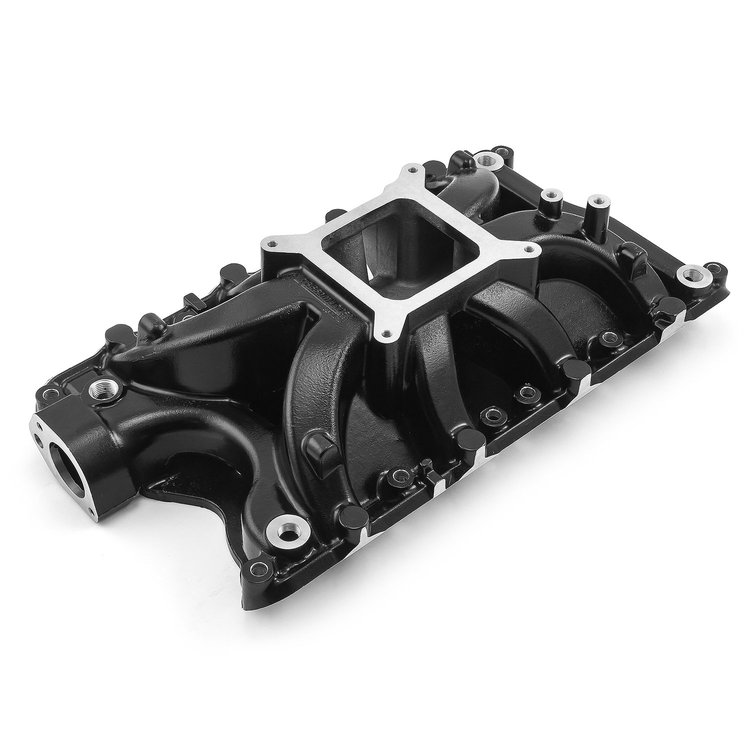

HiRise Intake Manifold Small Block Ford 351W
InfoVehicle Info Needed
SPEEDMASTERPART NUMBER: 746-1-147-027

HiRise Intake Manifold Small Block Ford 351W

$35000
ShippingShips on Sep 04, 2026
Lowest PriceLowest Price Guarantee

Small Block Ford
HiRise Intake Manifold
  • Small Block Ford 351W
  • Single Plane
  • Height: 5.680 in.
  • Non-EGR
  • RPM Range: 3,500-8,000
  • Cast Aluminum
  • Black Finish

    1-147-027 Features:

    • 4-barrel carburetor (4150/4160 base)
    • Square bore flange
    • High-grade aluminum casting
    • Assists with producing more horsepower and torque from large intake runners
    • Large open plenum

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

      • High-RPM Performance Intakes

      Speedmaster cast-aluminum HiRise Intake Manifolds have an open-plenum design that produces maximum power for racing or all-out street performance.

    Part TypeIntake Manifold
    Product LineSpeedmaster HiRise Intake Manifolds
    BrandSPEEDMASTER
    Package Height7.5
    Package Width12.5
    Package Length23.0
    Weight21.41 PG
    Part CategoryPerformance Parts
    Hardware IncludedNo
    Number Of CarbsOne
    Intake MaterialCast Aluminum
    Intake StyleSingle plane
    Gasket Or Seal IncludedNo
    QuantitySold individually
    Intake FinishBlack
    Carburetor QuantityOne
    Engine Make/SizeFord Small Block
    EgrWithout EGR
    Rpm Range3500-8000
    Part FitmentSemi Universal
    Vendor Part Number1-147-027
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
