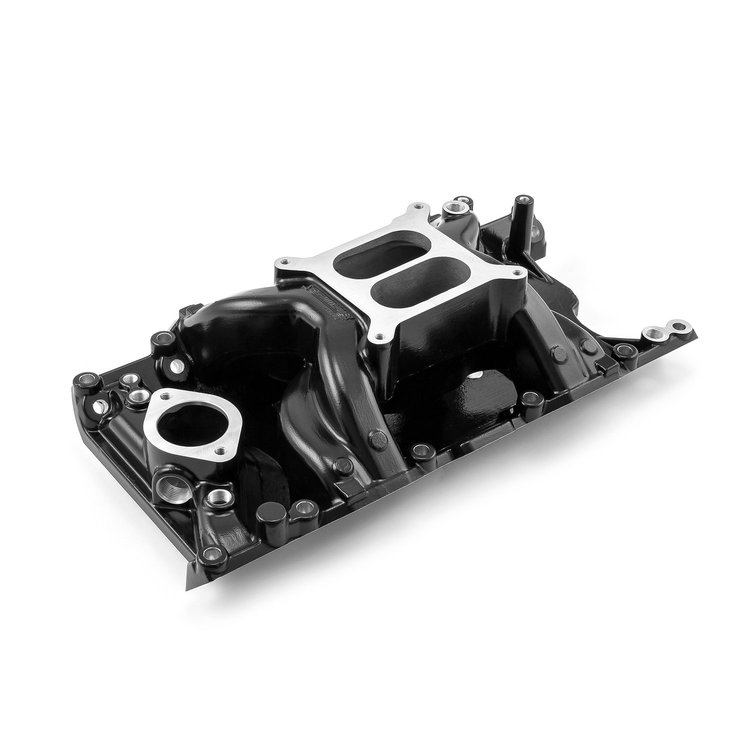

MidRise Air Intake Manifold Small Block Mopar 318/340/360, Magnum V8 - Black Finish
InfoVehicle Info Needed
SPEEDMASTERPART NUMBER: 746-1-147-030

MidRise Air Intake Manifold Small Block Mopar 318/340/360, Magnum V8 - Black Finish

$32400
1 left in stock
ShippingShips on Sep 14, 2026
Lowest PriceLowest Price Guarantee

Small Block Mopar
MidRise Air Intake Manifold
  • Small Block Mopar 318/340/360, Magnum V8
  • Dual Plane
  • Height: 5 in.
  • Non-EGR
  • RPM Range: 1,500-6,500
  • Black Finish

    1-147-030 Features:

    • Includes (12) finishing cap plugs, (3) pipe plugs, and (12) flat washers
    • Matching plenum and runner design to keep air and fuel distribution even
    • An open area underneath the plenum chamber (Air Gap) delivers cooler charge air and less heat transfer
    • High-grade aluminum casting
    • Post-machined intake ports
    • Square bore carburetor mounting flange
    • Casted Nitrous bosses
    • (1) Extra water port at the rear of the manifold
    • The included finishing plugs are to cap off the unused bolt holes

    Notes:

    • Fits 1967 and later 318/360 and Magnum V8 applications only
    • Requires the use of a 1975 or earlier water neck
    • Accepts the standard OEM length mounting bolts

      • Powerful Performance Intakes

      Speedmaster MidRise Intake Manifolds deliver maximum power for your non-pollution-controlled V8 street rod. The dual-plane design of these cast-aluminum intakes will fit a medium horsepower (HP) engine block and produce performance results comparable to the Shootout Racing intake manifold.

    Part TypeIntake Manifold
    Product LineSpeedmaster MidRise Intake Manifolds
    BrandSPEEDMASTER
    Package Height6.3
    Package Width13.78
    Package Length22.44
    Weight20.0 PG
    Part CategoryPerformance Parts
    EgrNo
    Intake MaterialCast Aluminum
    Intake StyleDual plane
    Rpm Range1500-6500
    QuantitySold individually
    Intake FinishBlack
    Part FitmentSemi Universal
    Engine Make/SizeMopar Small Block
    Manifold TypeMid Rise
    Vendor Part Number1-147-030
    Package Qty1
    Package TypeEA
