![LowRise Intake Manifold Small Block Ford 260/289/302W [Machine Polished Finish]](https://www.jegs.com/images/mini_750/700/746/746-1-147-044.jpg)
Vehicle Info NeededSPEEDMASTERPART NUMBER: 746-1-147-044

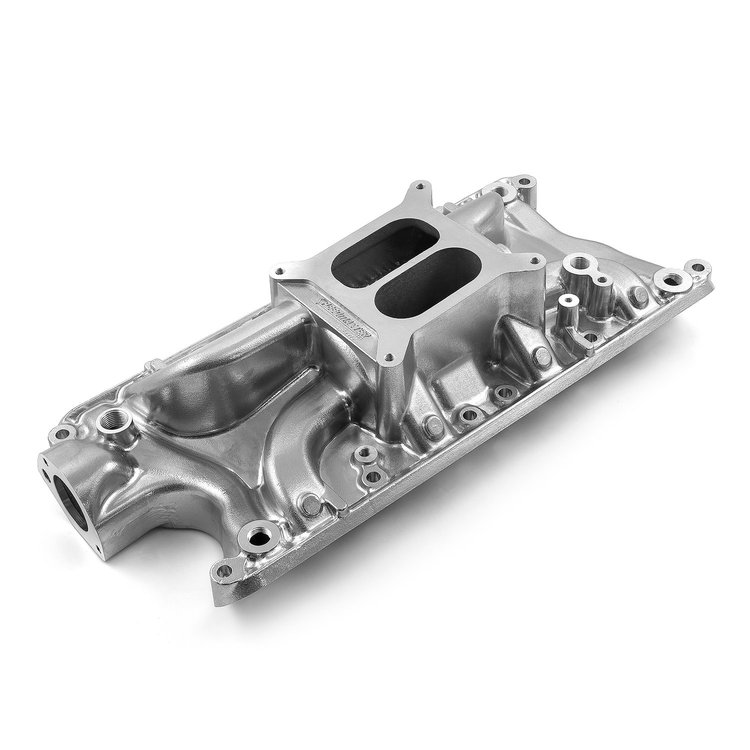

LowRise Intake Manifold Small Block Ford 260/289/302W [Machine Polished Finish]
$32000
Ships Tomorrow
Lowest Price GuaranteeSmall Block Ford
LowRise Intake ManifoldSmall Block Ford 260/289/302W Height: 4.120 in. Dual-Plane Non-EGR RPM Range: 1,500-6,500 Aluminum Machine Polished Finish
1-147-044 Features:
- Includes (1) square bore carburetor adapter plate, (12) mounting studs, (13) nuts, (15) flat washers, (5) pipe plugs, (3) hex bolts, (1) Allen head bolt, (1) threaded adapter fitting, and (1) throttle bracket adapter plate
- Matching plenum and runner design to keep air and fuel distribution even
- Delivers top-end power without sacrificing bottom-end torque
- High-grade aluminum casting
- Post-machined intake ports
- Accepts spread bore carburetors
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Low-Profile, Street-Legal Intake Manifolds
LowRise series intake manifolds by Speedmaster deliver a low profile for ultimate underhood clearance. These manifolds provide a perfect balance between top-end horsepower and low-end torque with their long-runner, dual-plane design, giving you the best of both worlds. Every Speedmaster intake is pressure tested to provide confident, superior performance.
Part TypeIntake Manifold
Product LineSpeedmaster LowRise Intake Manifolds
BrandSPEEDMASTER
Package Height6.5
Package Width11.0
Package Length23.5
Weight20.6 PG
Part CategoryPerformance Parts
Iat Sensor IncludedNo
Engine Block StyleStock/OEM standard deck
Number Of CarbsOne
Intake MaterialAluminum
Intake Gasket IncludedNo
Throttle Body IncludedNo
Intake StyleDual plane
QuantitySold individually
Mounting Hardware IncludedYes
Intake FinishMachine Polished
Injectors IncludedNo
Tps Sensor IncludedNo
Fuel Rails IncludedNo
Engine Make/SizeFord Small Block
EgrNo
Fittings IncludedYes
Rpm Range1500-6500
Part FitmentSemi Universal
Iac Motor IncludedNo
Map Sensor IncludedNo
Manifold TypeLow Rise
Intake Manifold Height4.120 in.
Vendor Part Number1-147-044
Package Qty1
Package TypeEA
