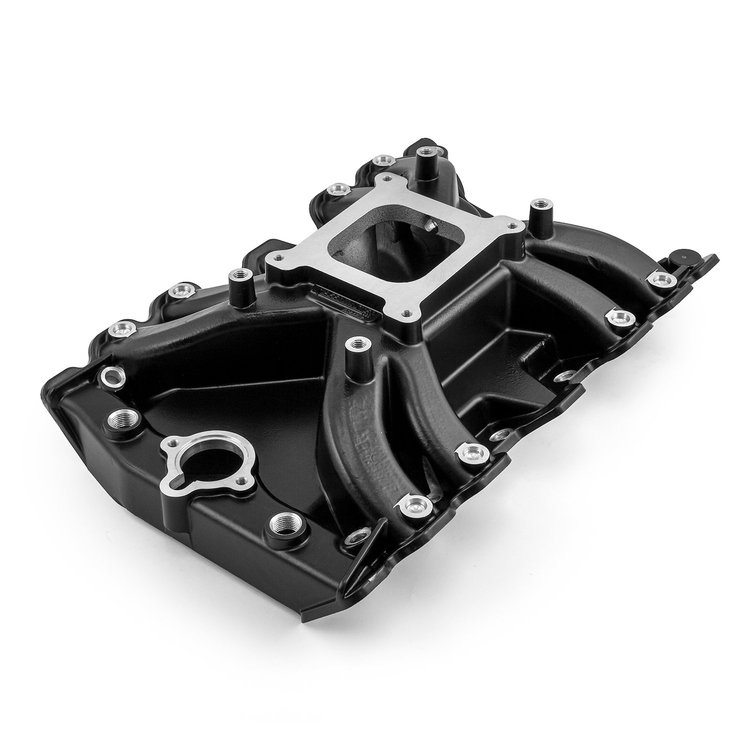

LowRise Intake Manifold Oldsmobile 400/425/455 ci - Black Finish
InfoVehicle Info Needed
SPEEDMASTERPART NUMBER: 746-1-147-099

LowRise Intake Manifold Oldsmobile 400/425/455 ci - Black Finish

$43605
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Oldsmobile
LowRise Intake Manifold
  • Oldsmobile 400/425/455 ci
  • Height: 8.200 in.
  • Single-Plane
  • Non-EGR
  • RPM Range: 4,500-7,500
  • Aluminum
  • Black Finish

    1-147-099 Features:

    • Includes (1) square bore carburetor adapter plate
    • Matching plenum and runner design to keep air and fuel distribution even
    • Delivers top-end power without sacrificing bottom-end torque
    • High-grade aluminum casting
    • Post-machined intake ports
    • Accepts spread bore carburetors

    Notes:

    • Check hood clearance before installation
    • Will NOT fit stock corvette hoods
    • Not compatible with tall deck applications

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeIntake Manifold
    BrandSPEEDMASTER
    Package Height7.25
    Package Width15.3
    Package Length23.6
    Weight23.5 PG
    Part CategoryPerformance Parts
    Iat Sensor IncludedNo
    Engine Block StyleStock/OEM standard deck
    Intake MaterialAluminum
    Throttle Body IncludedNo
    Intake StyleSingle plane
    Gasket Or Seal IncludedNo
    Fuel System TypeCarburetor
    QuantitySold individually
    Mounting Hardware IncludedNo
    Intake FinishBlack
    Injectors IncludedNo
    Carburetor QuantityOne
    Tps Sensor IncludedNo
    Fuel Rails IncludedNo
    Engine Make/SizeOldsmobile V8
    Basic Operating Rpm Range4,500-7,500
    EgrNo
    Part FitmentSemi Universal
    Iac Motor IncludedNo
    Map Sensor IncludedNo
    Manifold TypeLow Rise
    Intake Manifold Height8.2 in (208.28 mm)
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
