Piston Ring Set 4.040 Bore
InfoVehicle Info Needed
SPEEDMASTERPART NUMBER: 746-PCE306.1029

Piston Ring Set 4.040 Bore

$5320
ShippingShips on 09/04/2026
Lowest PriceLowest Price Guarantee

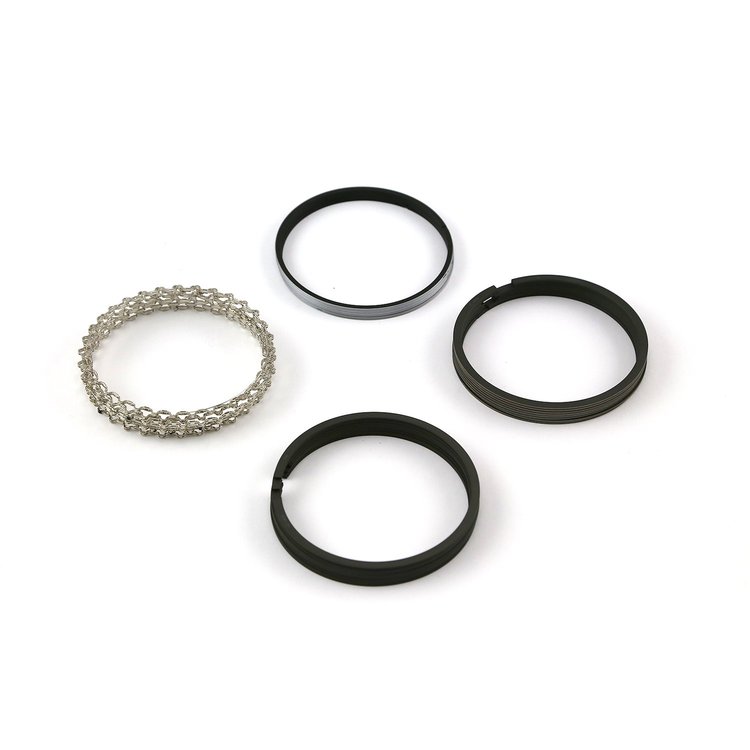

    Piston Ring Set
  • 4.040 Bore
  • Top Ring Thickness: 1/16"
  • Second Ring Thickness: 1/16"
  • Oil Ring Thickness: 1/8"

    Procomp Electronics piston rings are designed to stand up to the rigor of racing and high-performance street use, while providing a long lasting life. Procomp Electronics piston rings feature: Plasma-moly coated, barrel-shaped, ductile iron top rings that seal against blow-by when the piston rocks in its bore; tapered secondary rings that seal against the oil control ring's upper surface for excellent oil control; and 3-piece oil rings with stainless steel expanders that provide accurate tension without the loss of any horsepower.

Part TypePiston Ring
BrandSPEEDMASTER
Package Height2.3
Package Width5.4
Package Length10.9
Weight1.2 PG
Part CategoryPerformance Parts
Top Ring IncludedYes
Oil Ring MaterialStainless steel
Oil Ring IncludedYes
QuantitySold as a set
Oil Ring Thickness0.125 in (3.2 mm)
Second Ring MaterialCast iron
Second Ring IncludedYes
Second Ring Facing MaterialCast iron
GaplessNo
Top Ring Facing MaterialPlasma-moly
Top Ring Thickness0.063 in (1.6 mm)
Top Ring MaterialDuctile iron
Part FitmentSemi Universal
Bore (Mm)102.616
Oil Ring TensionStandard
Second Ring Thickness1/16
Bore4.04 in (102.616 mm)
Vendor Part NumberPCE306.1029
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
