Piston Ring Set 4.040 Bore
InfoVehicle Info Needed
SPEEDMASTERPART NUMBER: 746-PCE306.1034

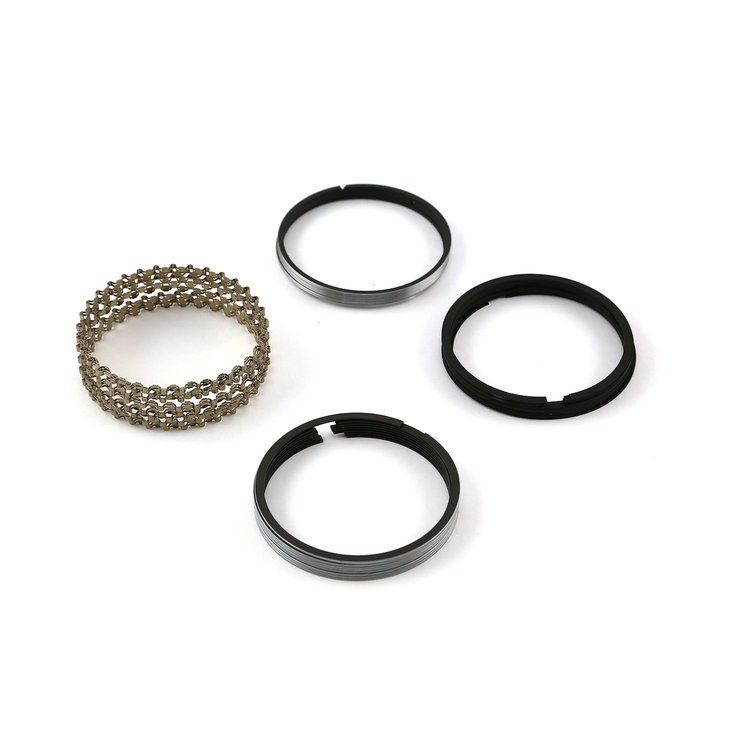

Piston Ring Set 4.040 Bore

$5320
ShippingShips on 10/01/2026
Lowest PriceLowest Price Guarantee

    Piston Ring Set
  • 4.040 Bore
  • Top Ring Thickness: 1/16"
  • Second Ring Thickness: 1/16"
  • Oil Ring Thickness: 3/16"
  • Zero Gap

    Procomp Electronics piston rings are designed to stand up to the rigor of racing and high-performance street use, while providing a long lasting life. Procomp Electronics piston rings feature: Plasma-moly coated, barrel-shaped, ductile iron top rings that seal against blow-by when the piston rocks in its bore; tapered secondary rings that seal against the oil control ring's upper surface for excellent oil control; and 3-piece oil rings with stainless steel expanders that provide accurate tension without the loss of any horsepower.

Part TypePiston Ring
BrandSPEEDMASTER
Package Height2.2
Package Width5.4
Package Length11.1
Weight1.26 PG
Part CategoryPerformance Parts
Top Ring IncludedYes
Oil Ring MaterialStainless steel
Oil Ring IncludedYes
QuantitySold as a set
Oil Ring Thickness0.188 in (4.8 mm)
Second Ring MaterialCast iron
Second Ring IncludedYes
Second Ring Facing MaterialCast iron
GaplessYes
Top Ring Facing MaterialPlasma-moly
Top Ring Thickness0.063 in (1.6 mm)
Top Ring MaterialDuctile iron
Part FitmentSemi Universal
Bore (Mm)102.616
Oil Ring TensionStandard
Second Ring Thickness1/16
Bore4.04 in (102.616 mm)
Vendor Part NumberPCE306.1034
Package Qty1
Package TypeEA
