Spohn Performance 235B Features:

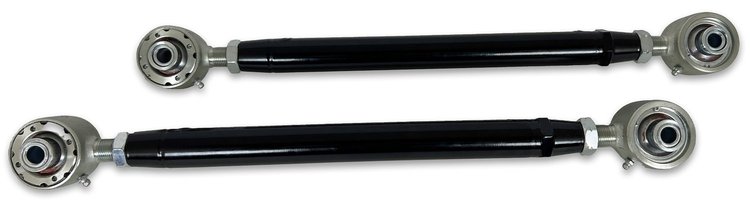

If you've got a big wheeled Donk, or you're laying in the weeds, then these arms have your name written all over them! Replace the factory rear lower control arms on your 1971-1996 GM B-Body with our adjustable units!

These allow for centering the rear end after lowering or lifting your ride height. They also allow for fore and aft alignment of the rear end for clearance when running larger tires and greatly increase the rear end's stability.

These are the best choice for serious performance. The Del-Sphere pivot joints provide for 28-Deg of bind-free articulation, perfect for the enthusiast looking for maximum suspension articulation!

These are oriented to hardcore performance. If your car is mainly street driven, we recommend using our SKU 239 adjustable rear lower control arms with our Vulcan Series vulcanized natural rubber bushings.

Tech Notes:

Adjustability Ranges: Center-Center Lengths - OEM: 22.0 in. - Fully Compressed: 21.125 in. - Maximum Extended: 23.5 in.

Rear Sway Bar: These adjustable rear lower control arms have NO PROVISIONS to mount a rear sway bar. Because the arms mount on an angle on the car, any change in length of the arm changes the positioning of the sway bar mounting holes and the rear sway bar will not line up with the holes. If you tried to adjust the length of the control arm with a rear sway bar mounted to the arm it would just bind up. If you want a rear sway bar you will need to use a rear sway bar that mounts to the chassis, not the control arms.

Rear Upper Control Arms: You will need to use Spohn SKU 634 or 635 adjustable rear upper control arms to maintain proper pinion angle.

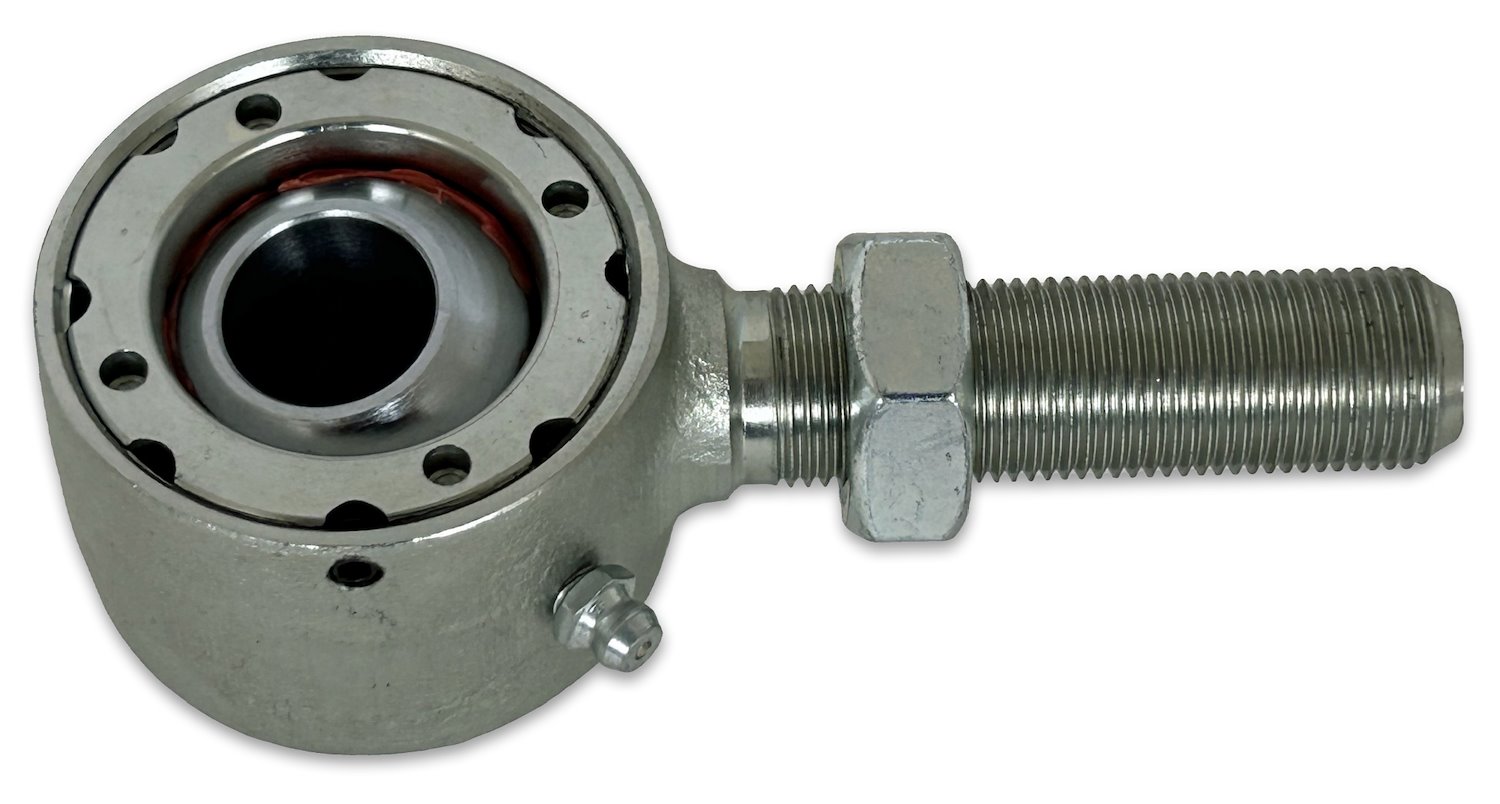

Del-Sphere Pivot Joints: Think of the Del-Sphere pivot joint as a Delrin® bushed spherical rod end. The Delrin® bushing cups absorb shock and road noise so you get the quiet and smooth ride of a bushing as well as 28-Deg of rotation! Unlike a spherical rod end, the Del-Sphere pivot joint is 100% rebuildable.

• 1.50 in. x 0.120 in. wall DOM tubing
• Stronger, yet lighter than stock
• TIG welded 4130N chrome moly threaded tube adapters
• 3/4 in. Del-Sphere pivot joints
• CNC machined through sleeve and silver zinc plated steel spacers keep the Del-Sphere pivot joints perfectly centered inside of the vehicle mounting brackets
• Right hand and left hand threaded ends with wrench flats allow for easy on-the-car adjustment
• Ships fully assembled and jig set at OEM length. Center-Center Lengths - OEM: 22.0 in. - Compressed: 21.125 in. - Extended: 23.5 in.
• No rear sway bar mounting provisions
• Powder coated for a brilliant and durable finish
• Color: Black
• Mounting Hardware Included: No
• Adjustable: Yes
• Construction: Tubular
• Finish: Powder Coated
• Pre-Greased: Yes
• Grease Fitting Included: Yes
• Control Arm Material: Steel
• Grade Type: Performance
• Greaseable: Yes
• Compressed Length: 21.125
• End 1 Type: Del-Sphere Pivot Joint
• End 2 Type: Del-Sphere Pivot Joint
• Extended Length: 23.500
• Mounting Hole Diameter: 14
• OEM Length: 22.000
