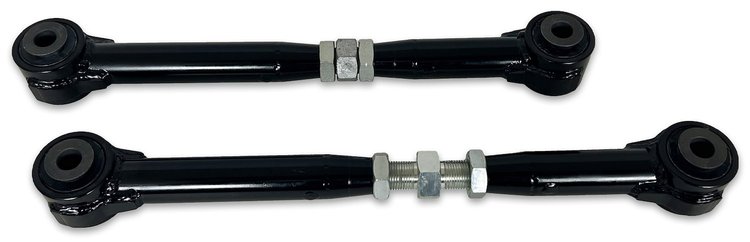

Spohn Performance D00-09-209B Features:

Replace the factory front lower control arms on your Dodge Ram truck with our extreme duty adjustable units! Increase traction and correct front end alignment after lifting the ride height with an easy bolt-on installation.

Our tubular adjustable front lower control arms are built to take a beating, provide for serious handling performance, and greatly increase the front housing's fore and aft stability.

The adjustability feature is designed for lengthening of the control arm, up to 1.50 in. longer than the factory control arm to maintain proper front end alignment after lifting your truck (if lengthening for a lift these should be used in conjunction with our tubular adjustable length front upper control arms).

Our massive forged 4130 chrome moly 1 in.-12 right hand and left hand threaded CNC machined double male adjusters allow for easy on-the-truck adjustments, there's no need to unmount the control arms to make adjustments!

These control arms feature our 100% maintenance-free Vulcan Series extreme-duty vulcanized natural rubber bushings that provide for a ride as smooth and quiet as factory, as well as long term durability.

Front Position Eccentric Cam Bolts Included: We have yet to put these on a truck that we did not have to cut off the front position mounting cam bolts. Due to the design of the factory's front cam bolts, water can enter through the side of the bolt causing it to rust fast to the bolt sleeve inside of the front bushing. This front lower control arm package includes two (2) new Grade 12.9 adjustable eccentric cam bolts, two (2) cam washers, and two (2) flanged top lock nuts. Remember that when looking at our price!

Priced per Pair -- Qty. 1 = 1 Pair

• 1.50 in. x 0.120 in. wall DOM tubing
• 2.50 in. x 0.25 in. wall DOM bushing housing tubes

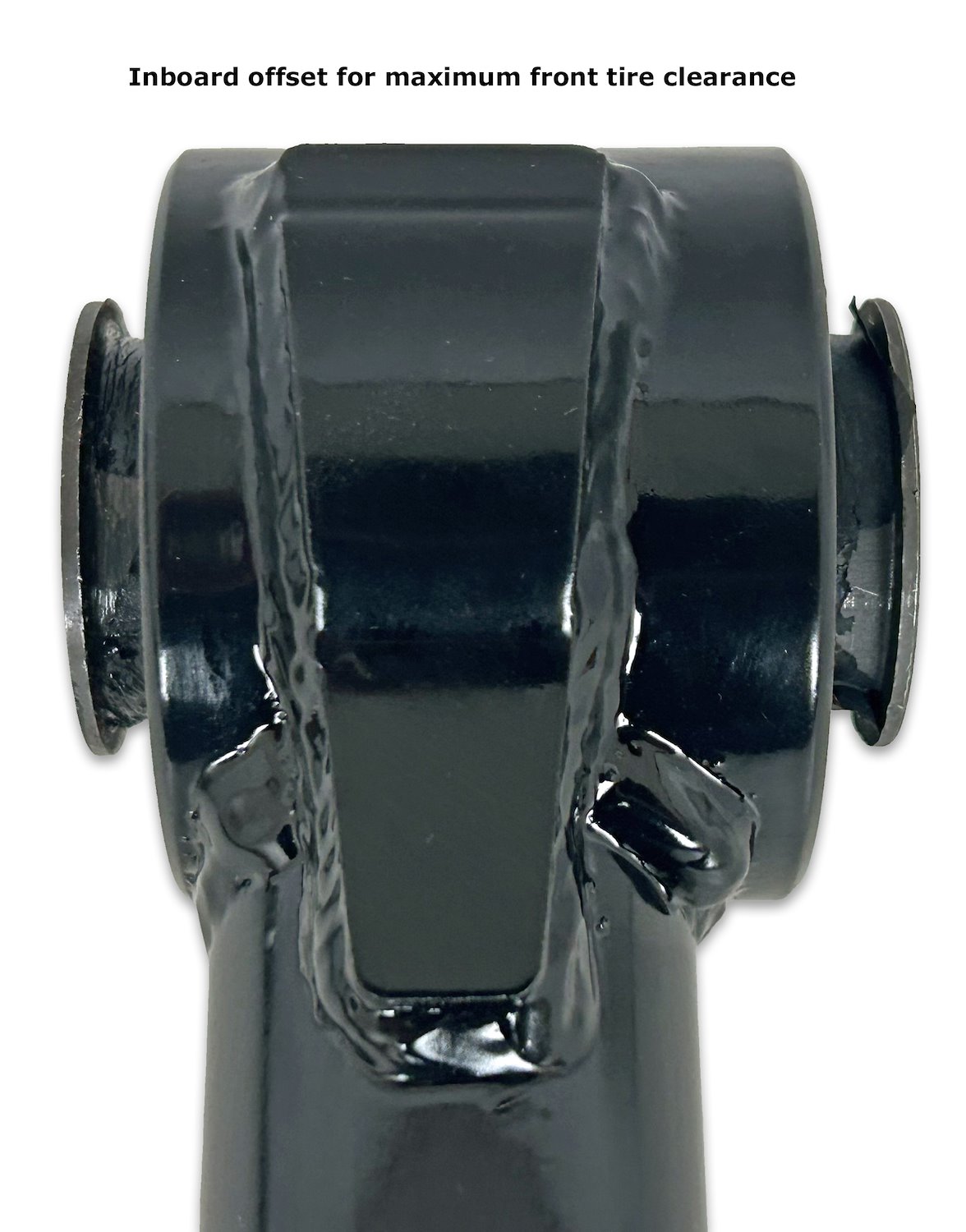

• CNC laser cut and formed 3/16 in. thick steel bushing housing gussets top and bottom for maximum strength and durability
• Vulcan Series extreme-duty vulcanized natural rubber bushings
• Can be safely lengthened up to 1.50 in. to maintain proper front end alignment on lifted trucks
• Massive 1 in.-12 right hand and left hand threaded silver zinc plated forged 4130 chrome moly double male adjusters
• TIG welded 4130 chrome moly threaded tube adapters for maximum thread strength
• Ships fully assembled and jig set at OEM length. Center-Center Lengths - OEM: 18.50 in. - Compressed: 18.00 in. - Extended: 20.00 in.
• These are the highest quality, easiest to adjust on-the-truck front lower control arms on the market!
• Easy 100% bolt-in installation using factory hardware with the use of basic hand tools
• Includes new Grade 12.9 front position adjustable eccentric cam bolts, cam washers, and flanged lock nuts
• Powder coated for a brilliant and durable finish
• Color: Black
• Adjustable: Yes
• Bushing Material: Rubber
• Bushing Color: Black
• Construction: Tubular
• Finish: Powder Coated
• Bushings Included: Yes
• Control Arm Material: Steel
• Grade Type: Performance
• Cam Bolts Included: Yes
• Compressed Length: 18.00
• End 1 Type: Bushing
• End 2 Type: Bushing
• Extended Length: 20.00
• Mounting Hole Diameter: 16
• OEM Length: 18.50
