Spohn Performance D10-CAM-981 Features:

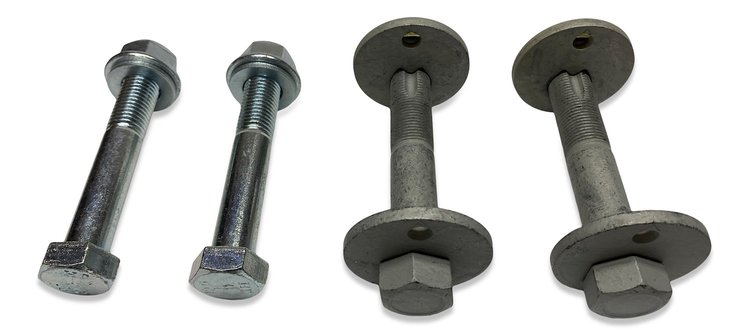

This front lower control arms mounting hardware kit includes the front position adjustable front cam bolts, eccentric washers, and lock nuts as well as the mounting bolts, washers, and flanged lock nuts for the rear position of the front lower control arms. It provides ALL of the mounting hardware required to completely mount the front lower control arms in one convenient package!

We have yet to remove a pair of front lower control arms from a Dodge Ram truck that we did not have to cut off the front cam bolts.

Due to the design of the factory's front mounting cam bolts, water can enter through the side of the bolt causing it to rust fast to the bolt sleeve inside of the front lower control arm's bushing.

This front lower control arm cam bolts package includes two (2) new Grade 10.9 front cam bolts, two (2) new eccentric cam washers, and two (2) new flanged in.Top Lock in. nuts.

This package also includes two (2) Grade 10.9 bolts, two (2) flat washers and two (2) flanged in.Top Lock in. nuts for the rear position of both front lower control arms

All hardware is zinc plated for corrosion protection.

• (2) 18mm Grade 12.9 cam bolts
• (2) Eccentric cam washers
• (2) 18mm lock nuts
• (2) 16mm Grade 10.9 bolts
• (2) 16mm flanged head steel lock nuts
• (2) 16mm flat washers
• Zinc plated finish for corrosion protection
• Cam Bolt Finish: Zinc Plated
• Cam Bolt Grade: 10.9
• Cam Bolt Hex Size: 24
• Cam Bolt Nut Hex Size: 27
• Cam Bolt Nut Type: Top Lock
• Cam Bolt Quantity: Two (2)
• Cam Bolt Thread Pitch: 1.50
• Cam Bolt Thread Size: 18
• Cam Bolt Washer Size: 18
• Cam Bolt Washer Type: Eccentric Cam
• Rear Position Bolt Grade: 10.9
• Rear Position Bolt Hex Size: 24
• Rear Position Bolt Quantity: Two (2)
• Rear Position Bolt Thread Pitch: 2.00
• Rear Position Bolt Thread Size: 16
• Rear Position Hardware Finish: Zinc Plated
• Rear Position Nut Hex Size: 24
• Rear Position Nut Type: Flanged Top Lock
• Rear Position Washer Type: Flat
