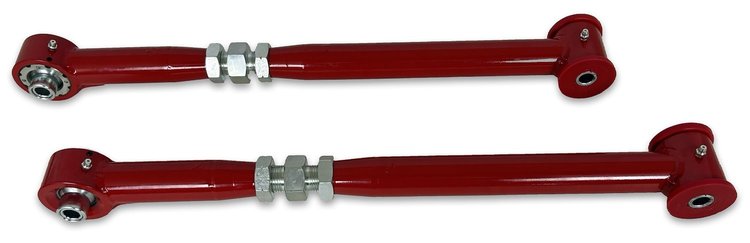

Spohn Performance GMSUV-207R Features:

Replace the factory's weak, stamped steel, flexible rear lower control arms with our heavy duty adjustable set-up! They allow for centering the rear end after lowering or lifting your ride height. They also allow for fore and aft alignment of the rear end for clearance when running larger tires and greatly increase the rear end's stability.

These are the best compromise for a combination of street driving and off road performance. The Del-Sphere pivot joints mount to the rear axle housing and provide for 28-Deg of bind-free articulation, perfect for the off road enthusiast looking for maximum suspension articulation, while the chassis mounted fluted polyurethane bushings isolate noise, vibration, and harshness.

Powder coated for a brilliant and durable finish.

Tech Notes:

- If lowering or lifting your ride height, these should be used in conjunction with our adjustable rear upper control arms.

- If your truck is mainly street driven we recommend using our SKU GMSUV-209 adjustable rear lower control arms with our Vulcan Series vulcanized natural rubber bushings.

Del-Sphere Pivot Joints:

The Spohn Performance Del-Sphere pivot joint solves the shortcomings of the factory rubber and aftermarket polyurethane bushings. Our Del-Sphere pivot joint incorporates a spherical ball which is surrounded by Delrin® bushing cups.

Think of the Del-Sphere pivot joint as a Delrin® bushed spherical rod end. The Delrin® bushing cups absorb shock and road noise so you get the quiet and smooth ride of a bushing as well as 28-Deg of rotation! Designed and manufactured exclusively by Spohn Performance, we have taken street suspension performance to the next level.

Unlike a spherical rod end, the Del-Sphere pivot joint is 100% rebuildable.

• 1.50 in. x 0.120 in. wall DOM tubing
• TIG welded 4130N chrome moly threaded tube adapters

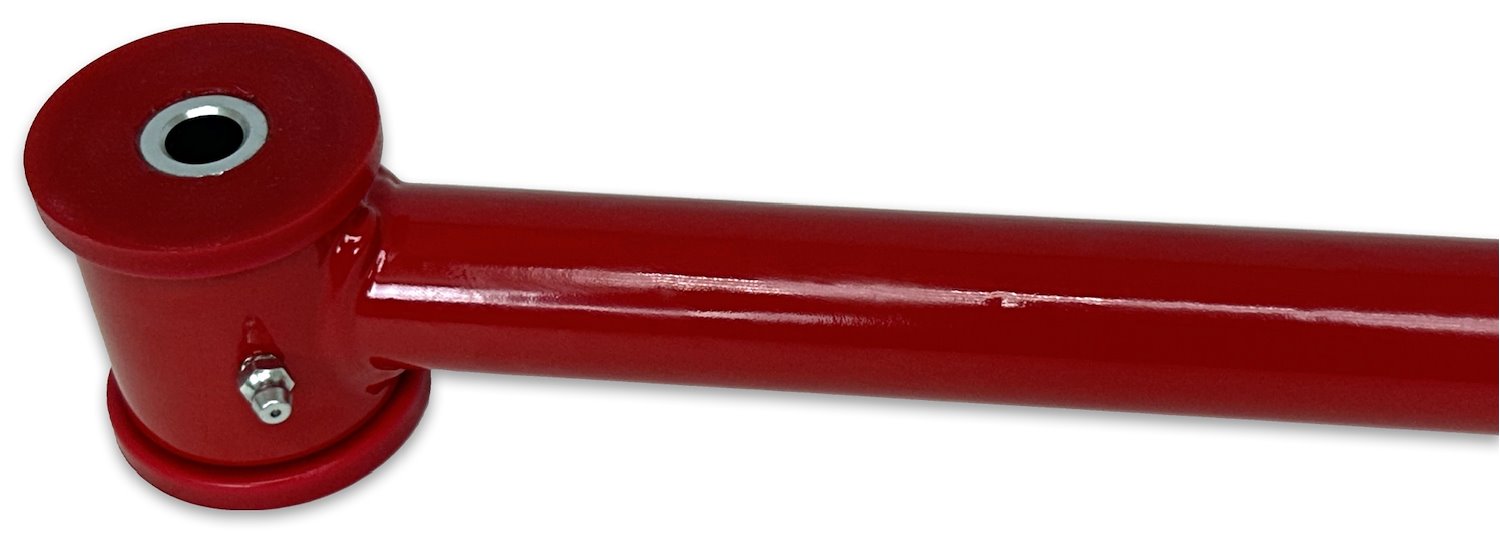

• Polyurethane bushed (fluted) ends equipped with grease fittings for easy lubrication
• 3/4 in. Del-Sphere pivot joints
• CNC machined through sleeve and silver zinc plated steel spacers keep the Del-Sphere pivot joints perfectly centered inside of the vehicle mounting brackets
• Massive 1 in.-12 right hand and left hand threaded silver zinc plated forged 4130 chrome moly double male adjusters
• Ships fully assembled and jig set at OEM length. Center-Center Lengths - OEM: 22.00 in. - Compressed: 21.125 in. - Extended: 23.125 in.
• These are the highest quality, easiest to adjust on-the-truck rear lower control arms on the market!
• Easy 100% bolt-in installation using factory hardware with the use of basic hand tools
• Powder coated for a brilliant and durable finish
• Color: Red
• Mounting Hardware Included: No
• Adjustable: Yes
• Bushing Material: Polyurethane
• Bushing Color: Red
• Construction: Tubular
• Finish: Powder Coated
• Pre-Greased: Yes
• Grease Fitting Included: Yes
• Bushings Included: Yes
• Control Arm Material: Steel
• Grade Type: Performance
• Greaseable: Yes
• Compressed Length: 21.125
• End 1 Type: Del-Sphere Pivot Joint
• End 2 Type: Bushing
• Extended Length: 23.125
• Mounting Hole Diameter: 14
• OEM Length: 22.000
