Spohn Performance HSSA1-DB5364 Features:

The Spohn Performance Mountain Goat Series SKU HSDL-1375 extreme duty high steer drag link allows the drag link to be flipped to the top of the spindle to correct the steering geometry on a lifted Jeep® JK Wrangler. This tapered spindle adapter sleeve is designed to allow you to flip the taper on the spindle without the need to do any reaming to correct the taper.

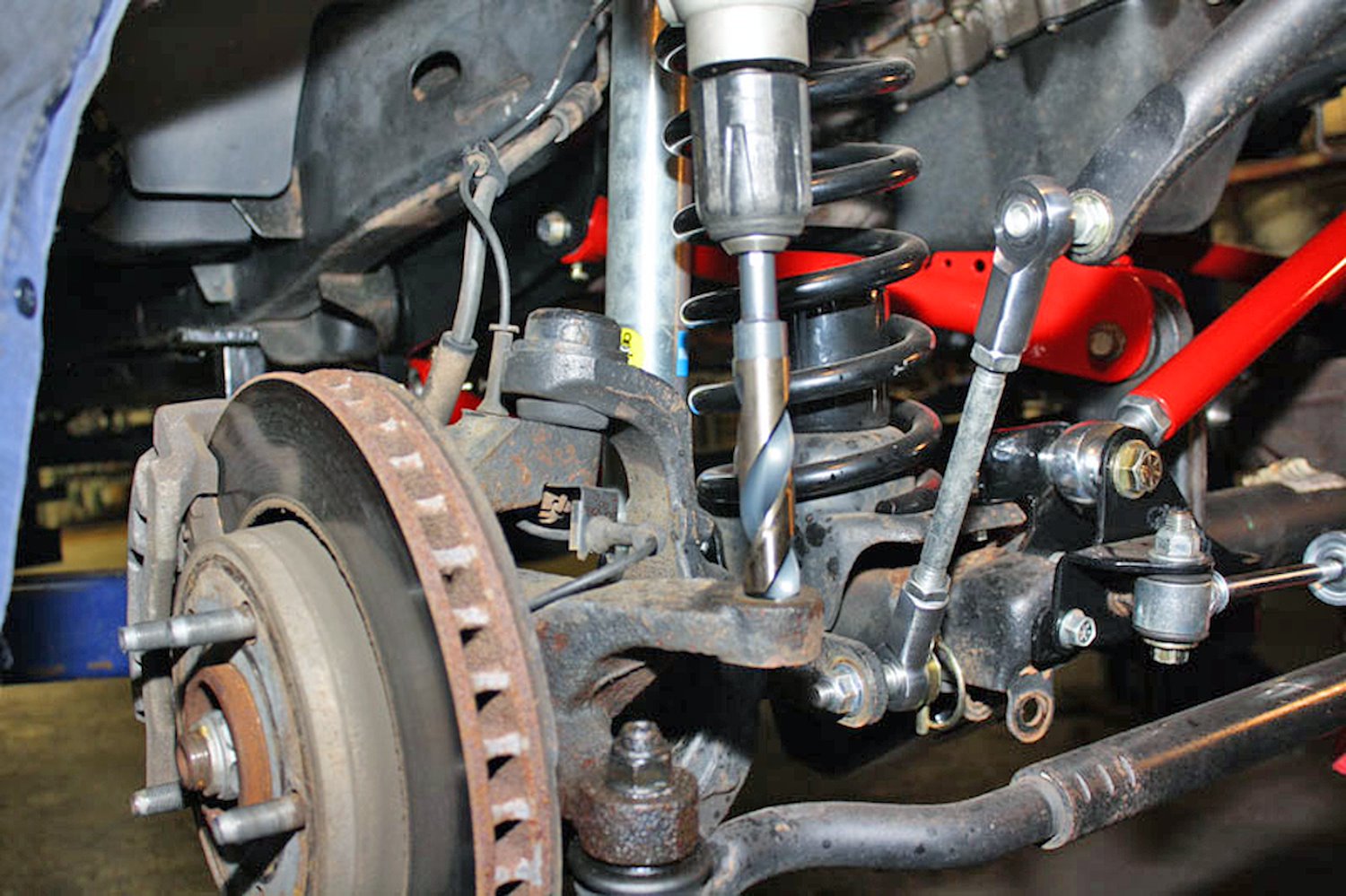

You simply drill out the existing tapered hole in the spindle with the 53/64 in. drill bit that is included in this kit, and then insert this tapered adapter sleeve through the top of the spindle hole. Our tapered spindle adapter sleeve is CNC machined from 304 stainless steel to ensure a long and corrosion free service life.

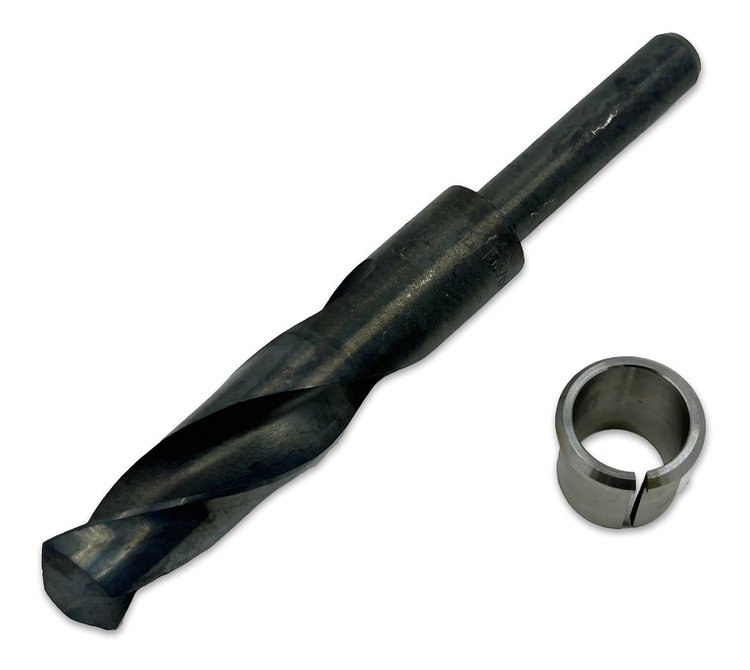

This kit includes one (1) tapered adapter sleeve and one (1) drill bit as only one is required on the passenger's side front spindle.

SKU 5364 Drill Bit: 53/64 in. x 1/2 in. shank drill bit. Use to drill your spindle to install the SKU HSSA1 1 ton tie rod end tapered spindle adapter sleeve. Nobody wants to use a cheap imported drill bit when drilling out their spindle. This is a high quality MADE IN USA drill bit to get the job done accurately.

Universal Builder Applications: This tapered spindle adapter sleeve can be used on MANY applications for those who are building custom flipped drag links equipped with GM 1 ton style tie rod ends, etc. The specifications you need to know are - Spindle Hole Drill Size: 53/64 in., Taper Included Angle: 7.15-Deg (1.5 in./ft.), Overall Length: 0.85 in., Length Under Top Shoulder: 0.75 in., I.D. Major Diameter: 0.76 in., I.D. Minor Diameter: 0.66 in..

Note: This SKU HSSA1 tapered spindle adapter sleeve is included with our SKU JK-HSDL-1375 high steer drag link package. This is offered as an extra, a replacement, or for universal applications.

• Direct fit to the taper of the SKU TRE1T-875-18L Mountain Goat Series Full Metal Jacket 1 Ton Tie Rod End
• Allows the drag link to be flipped to the top of the spindle to correct steering geometry
• Fits a drilled 53/64 in. hole in your spindle (bit included)
• CNC machined 304 stainless steel construction
• Includes the required 53/64 in. diameter x 1/2 in. reduced shank drill bit (Made In USA)
• Drill Bit Coating: Black Oxide
• Drill Bit Material: High Speed Steel (HSS)
• Drill Diameter: 53/64
• Drill Flute Length: 3
• Drill Overall Length: 6
• Drill Shank Size: 1/2
• Sleeve I.D. Major Diameter: 0.76
• Sleeve I.D. Minor Diameter: 0.66
• Sleeve Length Under Top Shoulder: 0.75
• Sleeve Material: 304 Stainless Steel
• Sleeve Overall Length: 0.85
• Sleeve Taper Included Angle: 7.15° (1.5 in./ft.)
• Spindle Hole Drill Size: 53/64
