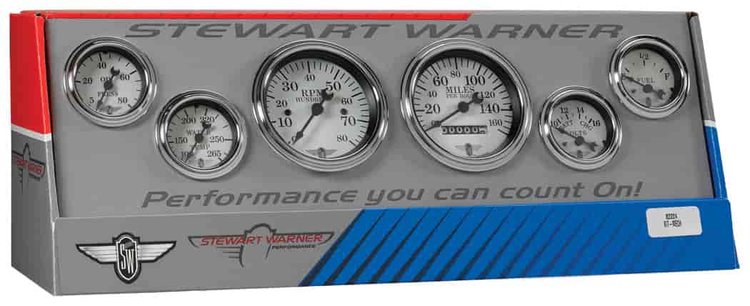

82224 Features:

• Distinctive SW Wings logo
• Teardrop-style pointer with a crescent moon tail
• Convex glass lens
• Superior night-time illumination
• Overvoltage and reverse polarity protection
• Corrosion-resistant and dust-proof housing
• SAE and ISO-standards compliant
• Operating temperature: -40 degree F (-40 C) to + 185 degree F (85 C)
• Speedometer Gauge:
  • Mechanical
  • Size: 3-3/8 in. (86 mm) Diameter
  • 0-160 MPH
  • Full sweep
  • Analog odometer
  • Uses existing mechanical connection to the transmission
• Tachometer Gauge:
  • Electrical
  • Size: 3-3/8 in. (86 mm) Diameter
  • 0-8,000 RPM
  • Full sweep
  • Works with 4, 6, and 8-cylinder engines
  • Uses existing connection
• Oil Pressure Gauge:
  • Mechanical
  • Size: 2-1/16 in. (52 mm) Diameter
  • 0-80 PSI
  • Short sweep
  • 72 in. capillary tube
• Water Temperature Gauge:
  • Mechanical
  • Size: 2-1/16 in. (52 mm) Diameter
  • 100-240 degree F
  • Short sweep
  • 72 in. capillary tube
• Fuel Level Gauge:
  • Electrical
  • Size: 2-1/16 in. (52 mm) Diameter
  • E-1/2-F scale
  • Short sweep
  • 240-33.500 Ohms range
• Voltmeter Gauge:
  • Electrical
  • Size: 2-1/16 in. (52 mm) Diameter
  • 10-16 V DC
  • Short sweep
  • Uses existing connection
