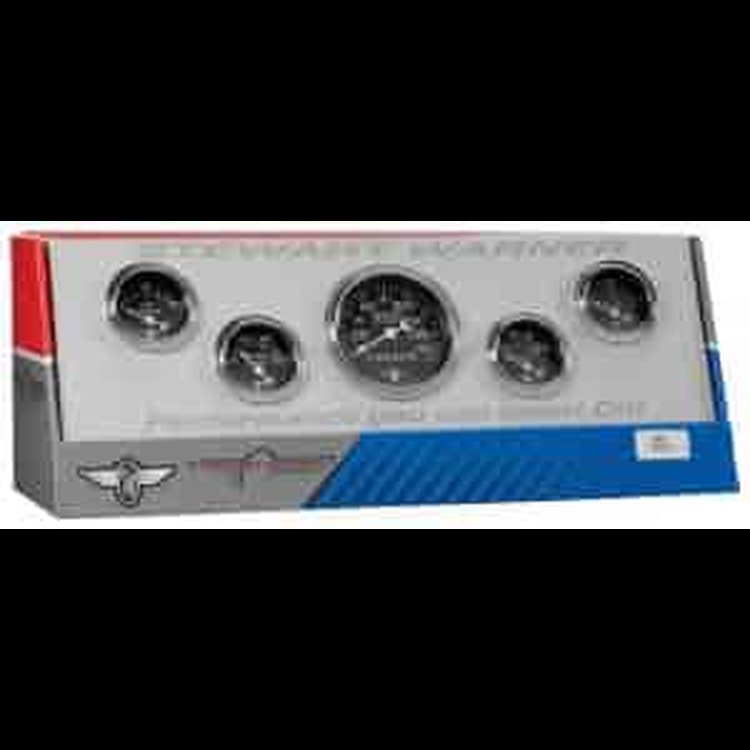

Wing-Series 5-Gauge Kit, Mechanical/Electrical - Black Facedial
InfoVehicle Info Needed
STEWART WARNERPART NUMBER: 728-82227

Wing-Series 5-Gauge Kit, Mechanical/Electrical - Black Facedial

$59324
ShippingShips on 01/15/2027
Lowest PriceLowest Price Guarantee

Items You Need

Wire Crimping Pliers and Stripping Tool

JEGS

Wire Crimping Pliers and Stripping Tool

Part Number : 555-80575
$1399$15.99
You Save$2.00
Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

JEGS

Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

Part Number : 555-80569
$899$9.99
You Save$1.00
61-Piece Heat Shrink Tubing Kit [Black]

JEGS

61-Piece Heat Shrink Tubing Kit [Black]

Part Number : 555-10630
$2699$29.99
You Save$3.00
Digital Multimeter

JEGS

Digital Multimeter

Part Number : 555-W2974
$1599$22.09
You Save$6.10

5-Gauge Kits
Wing-Series 5-Gauge Kit
  • Mechanical and Electrical (12 V)
  • Black Facedial
  • Chrome Bezel
  • Includes:
    • Speedometer
    • Oil Pressure
    • Water Temperature
    • Fuel Level
    • Voltmeter
    • Mounting Hardware

      82227 Features:

      • Distinctive SW Wings logo
      • Teardrop-style pointer with a crescent moon tail
      • Convex glass lens
      • Superior night-time illumination
      • Overvoltage and reverse polarity protection
      • Corrosion-resistant and dust-proof housing
      • SAE and ISO-standards compliant
      • Operating temperature: -40 degree F (-40 C) to + 185 degree F (85 C)
      • Speedometer Gauge:
        • Mechanical
        • Size: 3-3/8 in. (86 mm) Diameter
        • 0-160 MPH
        • Full sweep
        • Analog odometer
        • Uses existing mechanical connection to the transmission
      • Oil Pressure Gauge:
        • Electrical
        • Size: 2-1/16 in. (52 mm) Diameter
        • 0-80 PSI
        • Short sweep
      • Water Temperature Gauge:
        • Electrical
        • Size: 2-1/16 in. (52 mm) Diameter
        • 100-240 degree F
        • Short sweep
      • Fuel Level Gauge:
        • Electrical
        • Size: 2-1/16 in. (52 mm) Diameter
        • E-1/2-F scale
        • Short sweep
        • 240-33.500 Ohms range
      • Voltmeter Gauge:
        • Electrical
        • Size: 2-1/16 in. (52 mm) Diameter
        • 10-16 V DC
        • Short sweep
        • Uses existing connection
    • Retro-Style Gauges with Modern Technology

      The Stewart Warner Wings-Series features nostalgic 1940's inspired English-scale graphic dials with teardrop pointers. Flashy chrome bezels and convex glass lenses pair perfectly with street rods and vintage cars and trucks. They are available with a white-on-black or black-on-white gauge face and in both mechanical or electrical versions.

    Part TypeGauge
    Product LineStewart Warner Wings-Series Gauges
    BrandSTEWART WARNER
    Package Height6.9
    Package Width6.9
    Package Length18.6
    Weight4.75 PG
    Part CategoryPerformance Parts
    Sending Unit IncludedYes
    Liquid-FilledNo
    Warning Lights IncludedNo
    Gauge Face ColorBlack
    Bezel ColorChrome
    Water Temperature Gauge IncludedYes
    QuantitySold individually
    Mph/Kph0-160 MPH
    Fuel Level Gauge IncludedYes
    Bezel FinishPolished
    Mounting Bracket IncludedYes
    Pointer ColorWhite
    Gauge Number ColorWhite
    Speedometer Gauge IncludedYes
    Voltage Gauge IncludedYes
    Oil Pressure Gauge IncludedYes
    Part FitmentUniversal
    Vendor Part NumberM-82227
    Package Qty1
    Package TypeEA
