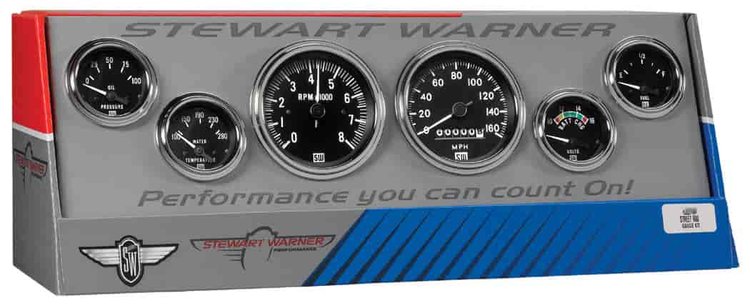

82262 Features:

• An illuminated ring provides easy night-time readability
• Overvoltage and reverse polarity protection
• Fully-sealed bobbin assembly to house the gauge motor
• IP 66 rated front enclosure with dust-proof in the rear
• SAE and ISO-standards compliant
• Operating temperature: -40 degree F (-40 C) to + 185 degree F (85 C)
• Speedometer Gauge:
  • Size: 3-3/8 in. (86 mm) Diameter
  • 0-160 MPH
  • Full sweep
  • Analog odometer
  • Uses existing connection or included Hall Effect sensor
• Tachometer Gauge:
  • Size: 3-3/8 in. (86 mm) Diameter
  • 0-8,000 RPM
  • Full sweep
  • Uses existing electrical tachometer connection
• Oil Pressure Gauge:
  • Size: 2-1/16 in. (52 mm) Diameter
  • 0-100 PSI
  • Short sweep
• Water Temperature Gauge:
  • Size: 2-1/16 in. (52 mm) Diameter
  • 100-280 degree F
  • Short sweep
• Fuel Level Gauge:
  • Size: 2-1/16 in. (52 mm) Diameter
  • E-1/2-F scale
  • Short sweep
  • 240-33.500 Ohms range
• Voltmeter Gauge:
  • Size: 2-1/16 in. (52 mm) Diameter
  • 10-16 V DC
  • Short sweep
  • Uses existing connection
