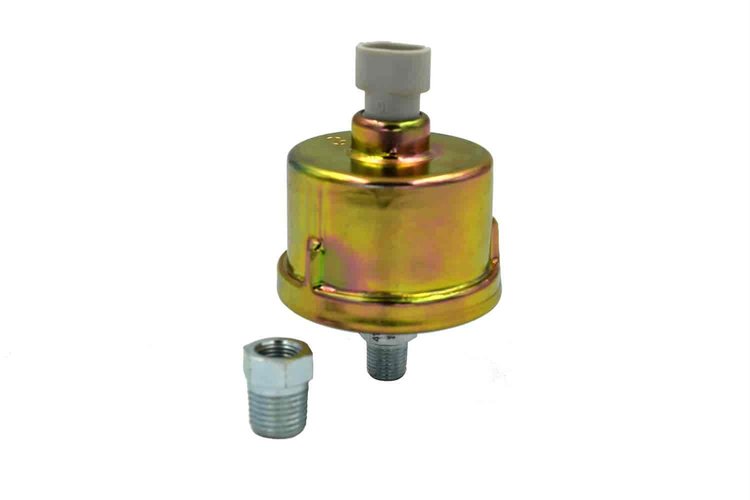

Thick Film Pressure Sender 0-150 PSI
InfoVehicle Info Needed
STEWART WARNERPART NUMBER: 728-82894

Thick Film Pressure Sender 0-150 PSI

$9299
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Pressure Sender Tubing Kit, 6 ft. (72 in.)

STEWART WARNER

Pressure Sender Tubing Kit, 6 ft. (72 in.)

Part Number : 728-82553-F
$2397$33.99
You Save$10.02
Thread Sealing Tape 1/2 in. x 43 ft.

JEGS

Thread Sealing Tape 1/2 in. x 43 ft.

Part Number : 555-75055
$319$3.99
You Save$0.80
123-Piece Tool Set with Carry Case

JEGS

123-Piece Tool Set with Carry Case

Part Number : 555-80427
$3199$51.99
You Save$20.00
Socket Set, 3/8 in. & 1/4 in. Drive [SAE/Metric 52-Piece]

JEGS

Socket Set, 3/8 in. & 1/4 in. Drive [SAE/Metric 52-Piece]

Part Number : 555-81565
$1199$33.99
You Save$22.00

Pressure Senders
Thick Film Pressure Sender
  • 0-150 PSI Scale
  • 240-33 Ohms
  • 1/8 in.-27 NPT Thread
  • Packard Connector
  • Zinc-Coated Steel
  • Sold Individually

    Stewart Warner 82894 Thick Film Pressure Sender Features:

    • Includes 1/4-18 NPT adapter fitting
    • The thick film resistors provides 5X longer life than senders with wire-wound resistors (Thick film technology is the modern standard for factory vehicles)
    • Kapton high-temperature plastic diaphragms are sealed with Viton gaskets for tighter and greater protection against oil leaks
    • 12 V normal operating range ( can be used in circuits up to 36 V with voltage adapter)
    • Suitable for any mounting orientation
    • Operating temperature: -40 degrees F (-40 C) through 300 degrees F (149 C)

    Stewart Warner 82894 Thick Film Pressure Sender Note:

    • Designed for use with 90-degree sweep gauges (Sendor resistance must match the resistance range of the mating gauge or cluster)
    • Gauge Installation and Replacement Components

      Stewart Warner offers various sensors, senders, switches, panels, light kits, and more to ease the addition or the servicing of existing gauges in your vehicle. Each component performs with great accuracy and reliability to provide years of service.

    Part TypeGauge
    Product LineStewart Warner Gauge Sensors, Senders, and Installation Accessories
    BrandSTEWART WARNER
    Package Height3.3
    Package Width3.4
    Package Length4.0
    Weight0.45 PG
    Part CategoryPerformance Parts
    Part FitmentUniversal
    Vendor Part NumberM-82894
    Package Qty1
    Package TypeEA
