This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

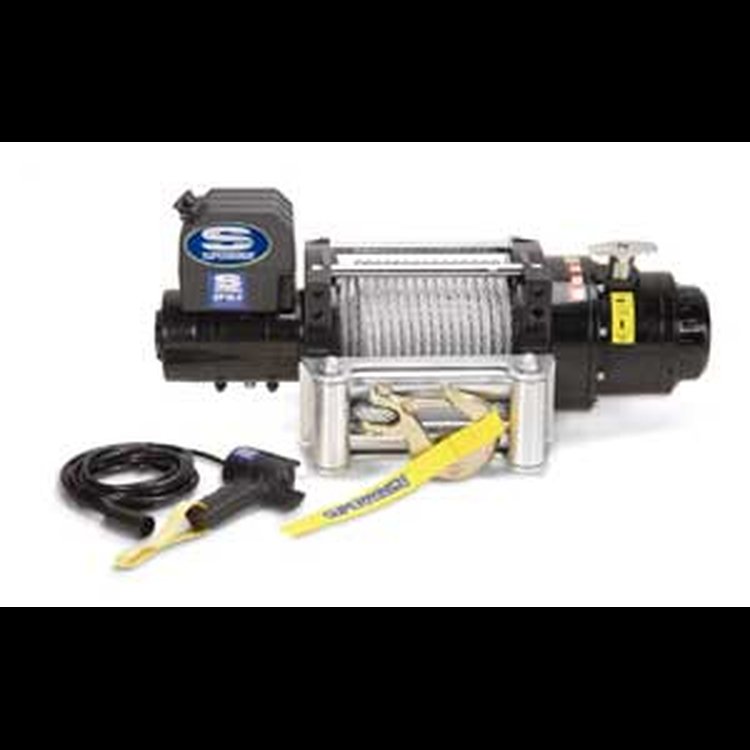

- EP Series 16.5 16500 lb. Winch
| Standard Features |
 | Power In and Power Out |
| |
| Automatic Load Holding Brake | |||
| Quiet, Efficient, Full Metal 3-Stage Planetary Gear Box | |||
| Freespooling Clutch for Fast Wire Rope Payout | |||
| Efficient 5.6 hp Series Wound Motor | |||
| Heavy Duty Sealed Contactor | |||
| Durable Handheld Remote Switch on 15' Lead | |||
| Heavy Duty Roller Fairlead-- Roller fairlead does not attach directly to the winch. | |||
| First and Last 10' of Wire Rope Dyed for Beginning /End Warning |
| Performance 12VDC (1st layer on drum) |
| Line Pull | Line Speed | Motor | Motor | |
| 0 | 28.4 (8.7) | 65 | 43 | ||
| 6,000 (2,722) | 6.3 (1.9) | 190 | 169 | ||
| 10,000 (4,536) | 4.0 (1.2) | 255 | 225 | ||
| 16,500 (7,484) | 1.9 (0.6) | 385 | 260 |
| Specifications |
| Rated Line Pull (Single Line) | 16,500 lb. (7,484 kg) | |
| Motor | 5.6 hp, 90° Rotatable, series wound 12V | ||
| 3.6 hp, 90° Rotatable, series wound 24V | |||
| Gearing | 3 Stage Planetary | ||
| Gear Ratio | 315:1 | ||
| Freespooling Clutch | Lift and turn | ||
| Braking | Automatic 100% Load Holding | ||
| Wire Rope | 7/16" x 90' (11mm x 27m) | ||
| Dimensions | 26.50" l. x 8.50" d. x 11.20" h. | ||
| (573mm l. x 215.9mm d. x 284.5mm h.) | |||
| Drum Diameter | 3.5" (88.9mm) | ||
| Drum Length | 8" (203mm) | ||
| Weight | 150 lb. (68.5 kg) | ||
| Switching Method | 15' (4.5m) Rubber Handheld Remote | ||
| Switching Mechanism | Heavy Duty Sealed Contactor | ||
| Roller Fairlead | Standard | ||
| Pulley Block | Optional P/N/ 7750A | ||
| Color-Coded Wiring | Standard | ||
| Wireless Remote Control | Optional P/N 06702 | ||
| Mounting Plate | Optional P/N 2302287 |
| Recommended Accessories |
| Pulley Block | 7750A | |
| Wireless Remote | 06702 | ||
| Mount Plate | 2302287 |
| Replacement Parts |
| Wire Rope 7/16" x 90' (11.1mm x 27.4m) | 90-33473 | |
| Handheld Remote Switch 15' (4.5m) | 2272 | ||
| Wire Harness Kit | 2302283 | ||
| Wireless Control | 06702 |
| Dimensions |
| commended Accessories |
- EP Series High Performance Recovery Winches
Superwinch EP-Series are packed with the features you want: efficient three-stage planetary gear train, automatic load-holding brake, sealed switching, rugged handheld remote, freespooling, power IN and OUT, and a roller fairlead standard. With the brake mechanism mounted at the end of the gearbox, these winches are ideal for use with synthetic rope. The pre-mounted contactor housing assembly can be easily removed and remote-mounted with ease. Speed, power, and compact design make the EP series a must-have for recovery applications.
EPi Series High Performance Recovery Winches
The Superwinch EPi-Series is loaded with the same features as the EP-Series plus 25 feet additional wire rope and an attractive integrally-mounted sealed contactor bridge.Speed, power and good looks!
