![53-CG Coated Steel Gas Tank for 1953-1954 Chevrolet [Stock Depth, 16 Gallon]](https://www.jegs.com/images/mini_750/200/246/246-53-cg.jpg)
Vehicle Info NeededTANKS INC.PART NUMBER: 246-53-CG

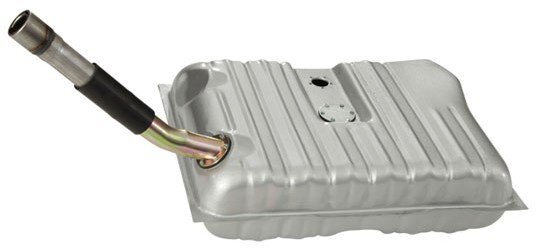

53-CG Coated Steel Gas Tank for 1953-1954 Chevrolet [Stock Depth, 16 Gallon]
$27899
Ships on 09/15/2026
Lowest Price GuaranteeGM
Coated Steel Gas Tank1953-1954 Chevy Stock Depth 16 Gallon Fuel Pump and Sender Not Included
Tanks Inc. 53-CG Features:
- 1953-1954 Chevy Car Gas Tank (Except Wagon & Sedan Delivery)
- Large 3/8 in. NPT Internal Pickup Tube
- Internal Reservoir Tray - Absolute Necessity for Fuel Injection
- Optional In-Tank GPA Series Fuel Pumps - Bolt-in! No Cutting or Welding!
- Block-Off plate for non-fuel-injected cars
- Includes mounting straps, gaskets & O-ring sealed screws
- Accepts All Aftermarket 5-Hole Senders - VDO, SW, Classic, etc. (factory ohm range is 0-30) If using a tube or reed sender, length is 6 in.
- Overall Size: 29-1/4 in. x 21-1/4 in. x 8-1/4 in. (16 Gallons)
- 53-CG uses the TC Cap
- When using this tank with a GPA series pump a 3/8 in. NPT pipe plug will be needed to block off the internal fuel tank pickup tube.
Part TypeFuel Tank
BrandTANKS INC.
Package Height10.9
Package Width25.8
Package Length34.6
Weight28.41 PG
Part CategoryReplacement Parts
Sending Unit IncludedNo
Fuel Pump IncludedNo
Tank Length29.25 in.
Baffled SumpYes
ColorSilver
Outlet Quantity1
Tank Width21.25 in.
QuantitySold Individually
Mounting Hardware IncludedYes
Fitting Attachment 1Female threads
Fuel Tank MaterialSteel
Tank Height8.25 in.
Fuel Tank Capacity16 gallons
Lock Ring Kit IncludedNo
Part FitmentDirect Fit
Mounting Straps IncludedYes
Fuel Sump Welded On TankNo
Fitting Size 13/8 in. NPT
Vendor Part Number53-CG
Package Qty1
Package TypeEA
