Made in USA

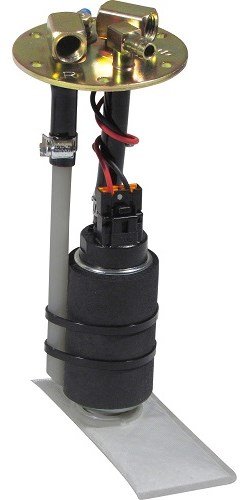

GPA-4-U2 255 LPH GPA Fuel Pump Module For U2&U9 Series Tanks
InfoVehicle Info Needed
TANKS INC.PART NUMBER: 246-GPA-4-U2

GPA-4-U2 255 LPH GPA Fuel Pump Module For U2&U9 Series Tanks

$22999
ShippingShips on Sep 03, 2026
Lowest PriceLowest Price Guarantee

Fuel Pumps
255 LPH GPA Fuel Pump Module
  • For U2&U9 Series Tanks

    Tanks Inc. GPA-4-U2 Features:

    • Heavy 10 gauge no-warp mounting plate
    • 1/4 in. NPT Supply and Return Line
    • Barbed Vent Fitting
    • Oven brazed fittings
    • Up to 100 PSI
    • In-tank wire harness
    • Genuine Walbro Fuel Pumps
    • These Gerotor style pumps cannot be used with Pulse Width Modulation. For pumps that are compatible with PWM click here .
    • If using with a FiTech system be sure to turn off PWM. For instructions click here.
    • Note: Designed for use with Tanks Inc. U2 and U9 Series tanks. Includes gasket, strainer, and wiring harness. -6AN is the largest fittings that can be used due to tight clearance to mounting plate.
    • Tanks Inc. Fuel Pumps — High Flow, Reliable Performance

      Tanks Inc. fuel pumps are engineered for high performance, dependable operation, and flexibility—especially in EFI (Electronic Fuel Injection) applications, high horsepower builds, or when converting older tanks. These pumps are designed to prevent fuel starvation under load, deliver strong flow rates, and handle demanding operating conditions with durability.

      Show More

      When you’re building a high-performance system or upgrading your ride’s fuel delivery, the quality of your pump matters. The Tanks Inc. PA‑Series Fuel Pump Module provides a purpose-built solution engineered by Tanks Inc. for precisely those kinds of demanding applications. With durable, heavy-gauge mounting plates, integrated wiring harnesses, return lines, and in-tank installation designed to prevent the dreaded fuel starvation issue, this kit offers both peace of mind and performance gains.

      Whether you're installing a new system or upgrading your current setup, this kit gives you the flow, pressure, and durability you need. For instance, the PA and GPA series pump modules are rated up to 100 psi, use genuine high-flow pump internals, and incorporate a reservoir tray to keep the fuel delivery consistent during cornering, acceleration and load.

      Let’s take a closer look: Ensures consistent performance under load — so your engine isn’t fighting to get fuel when you push it. Designed for in-tank use — improves cooling, quieter operation, fewer external plumbing issues. Built by a trusted brand with decades of experience in fuel system innovation.

      For enthusiasts, restoration builds, high-horsepower EFI conversions or simply replacing an aging unit — this is a solution that covers all those bases. Whether you refer to it as a tanks inc fuel pump, a tanks inc fuel pump kit or simply an auto fuel pump, it delivers the clarity and confidence you need to click Add to Cart and move ahead with your build.

    Part TypeFuel Pump
    Product LineTanks Inc. Fuel Pumps and Components
    BrandTANKS INC.
    Package Height4.0
    Package Width4.0
    Package Length22.0
    Weight2.05 PG
    Part CategoryReplacement Parts
    Wiring Harness IncludedYes
    Sending Unit IncludedNo
    Pulley IncludedNo
    Outlet Size1/4 in. NPT
    Inlet Size1/4 in. NPT
    Outlet Quantity1
    Fuel Pressure Regulator IncludedNo
    QuantitySold as a Kit
    Mounting Hardware IncludedNo
    RemanufacturedNo
    Inlet AttachmentFemale threads
    Fuel Pump TypeElectric In-tank
    Gasket IncludedYes
    Mounting Bracket IncludedNo
    Flow Rate67 gph/255 lph
    Outlet AttachmentFemale threads
    Voltage12 V
    Inlet Quantity1
    Part FitmentUniversal
    Fuel Pressure100 psi
    Vendor Part NumberGPA-4-U2
    Package Qty1
    Package TypeEA
