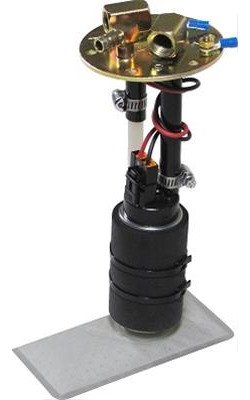

GPA-TBI 109 LPH GPA Fuel Pump Module Use w/ GM Throttle Body
InfoVehicle Info Needed
TANKS INC.PART NUMBER: 246-GPA-TBI

GPA-TBI 109 LPH GPA Fuel Pump Module Use w/ GM Throttle Body

$21499
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Fuel Pumps
109 LPH GPA Fuel Pump Module Use w/ GM Throttle Body

Tanks Inc. GPA-TBI Features:

  • Heavy 10 gauge no-warp mounting plate
  • 1/4 in. NPT Supply and Return Line
  • Barbed Vent Fitting
  • Oven brazed fittings
  • Up to 100 PSI
  • In-tank wire harness
  • Genuine Walbro Fuel Pumps
  • These Gerotor style pumps cannot be used with Pulse Width Modulation. For pumps that are compatible with PWM click here .
  • If using with a FiTech system be sure to turn off PWM. For instructions click here.
  • Note: -6AN is the largest fittings that can be used due to tight clearance to mounting plate.

    Tanks Inc. Fuel Pumps — High Flow, Reliable Performance

    Tanks Inc. fuel pumps are engineered for high performance, dependable operation, and flexibility—especially in EFI (Electronic Fuel Injection) applications, high horsepower builds, or when converting older tanks. These pumps are designed to prevent fuel starvation under load, deliver strong flow rates, and handle demanding operating conditions with durability.

    Show More

    When you’re building a high-performance system or upgrading your ride’s fuel delivery, the quality of your pump matters. The Tanks Inc. PA‑Series Fuel Pump Module provides a purpose-built solution engineered by Tanks Inc. for precisely those kinds of demanding applications. With durable, heavy-gauge mounting plates, integrated wiring harnesses, return lines, and in-tank installation designed to prevent the dreaded fuel starvation issue, this kit offers both peace of mind and performance gains.

    Whether you're installing a new system or upgrading your current setup, this kit gives you the flow, pressure, and durability you need. For instance, the PA and GPA series pump modules are rated up to 100 psi, use genuine high-flow pump internals, and incorporate a reservoir tray to keep the fuel delivery consistent during cornering, acceleration and load.

    Let’s take a closer look: Ensures consistent performance under load — so your engine isn’t fighting to get fuel when you push it. Designed for in-tank use — improves cooling, quieter operation, fewer external plumbing issues. Built by a trusted brand with decades of experience in fuel system innovation.

    For enthusiasts, restoration builds, high-horsepower EFI conversions or simply replacing an aging unit — this is a solution that covers all those bases. Whether you refer to it as a tanks inc fuel pump, a tanks inc fuel pump kit or simply an auto fuel pump, it delivers the clarity and confidence you need to click Add to Cart and move ahead with your build.

Part TypeFuel Pump
Product LineTanks Inc. Fuel Pumps and Components
BrandTANKS INC.
Package Height4.75
Package Width5.05
Package Length12.3
Weight1.69 PG
Part CategoryReplacement Parts
Wiring Harness IncludedNo
Sending Unit IncludedNo
Pulley IncludedNo
Outlet Size1/4 in. NPT
Inlet Size1/4 in. NPT
Outlet Quantity1
Fuel Pressure Regulator IncludedNo
QuantitySold as a Kit
Mounting Hardware IncludedNo
RemanufacturedNo
Inlet AttachmentFemale threads
Fuel Pump TypeElectric In-tank
Gasket IncludedNo
Mounting Bracket IncludedNo
Flow Rate29 gph/110 lph
Outlet AttachmentFemale threads
Voltage12 V
Inlet Quantity1
Part FitmentUniversal
Fuel Pressure15 psi
Vendor Part NumberGPA-TBI
Package Qty1
Package TypeEA
