TANKS INC.PART NUMBER: 246-PA-8

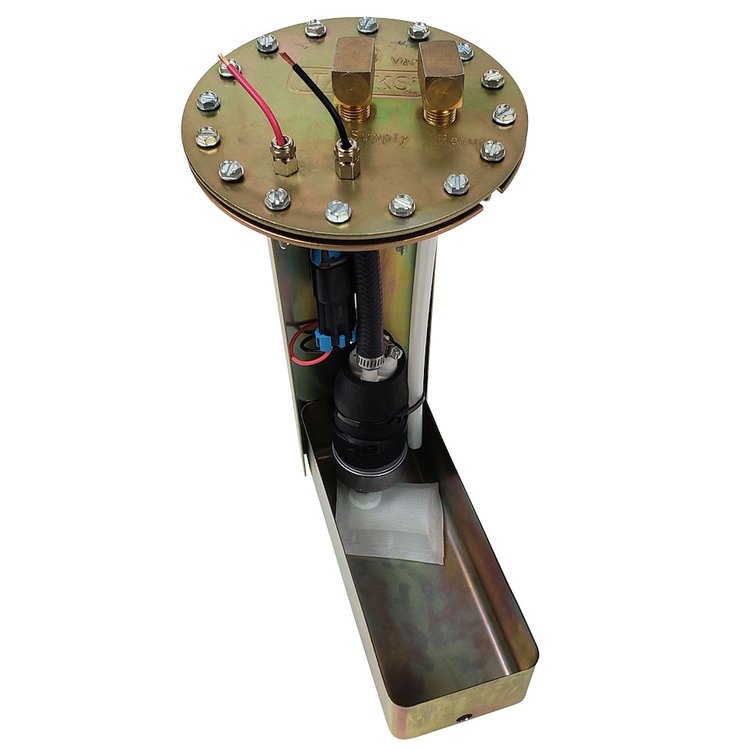

PA-8 PA Series Fuel Pump Module 440 LPH
$32499
Fuel Pumps
PA Series Fuel Pump Module 440 LPH
Tanks Inc. PA-8 Features:
- You assemble to the depth of your tank and install
- All Metal Components are Heavy Gauge (Yellow Zinc Plated Steel)
- Reservoir Tray Included
- 1/4 in. NPT Supply Line
- 1/4 in. NPT Return Line
- 1/4 in. NPT Vent Opening
- In-Tank Fuel Pump Wiring Harness
- Up to 100 PSI Rating
- Threaded Heavy Gauge In-Tank Mounting Ring
- Heavy Gauge Mounting Plate
- Adjustable Height Support Arm
- Genuine Walbro High Flow High Horsepower Fuel Pumps
- Powerful & Quiet Operating DCSS 39/50 Turbine Pumps
- Pumps can be controlled by Pulse Width Modulation
- Optional 1/4 in. NPT Rollover Vent Valve for PA series Pumps. #VV
Part TypeFuel Pump
BrandTANKS INC.
Package Height7.0
Package Width13.0
Package Length19.0
Weight6.0 PG
Part CategoryReplacement Parts
Wiring Harness IncludedNo
Sending Unit IncludedNo
Pulley IncludedNo
Outlet Size1/4 in.
Inlet Size1/4 in.
Outlet Quantity1
Fuel Pressure Regulator IncludedNo
QuantitySold Individually
Mounting Hardware IncludedYes
RemanufacturedNo
Inlet AttachmentFemale threads
Fuel Pump TypeElectric In-tank
Gasket IncludedYes
Mounting Bracket IncludedYes
Flow Rate116 gph/440 lph
Outlet AttachmentFemale threads
Voltage12 V
Inlet Quantity1
Part FitmentUniversal
Fuel Pressure100 psi
Vendor Part NumberPA-8
Package Qty1
Package TypeEA
