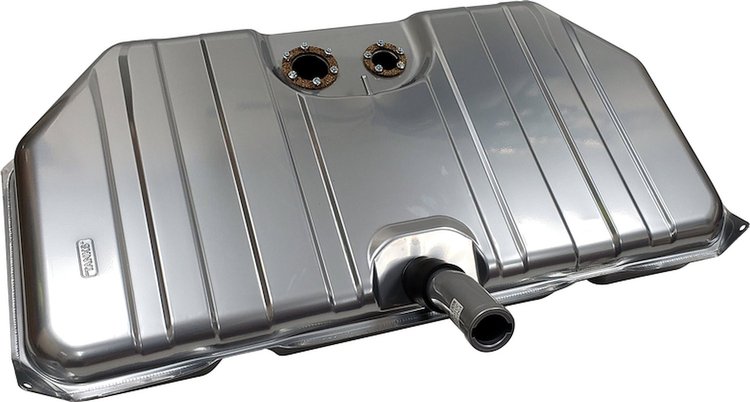

TM420AN-T Gas Tank for Fuel Injection w/Notched Corners for 1970-1973 Chevy Camaro, Pontiac Firebird
InfoVehicle Info Needed
TANKS INC.PART NUMBER: 246-TM420AN-T

TM420AN-T Gas Tank for Fuel Injection w/Notched Corners for 1970-1973 Chevy Camaro, Pontiac Firebird

$33899
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Under Hoist High Lift Jack Stand [2-Ton Capacity]

JEGS

Under Hoist High Lift Jack Stand [2-Ton Capacity]

Part Number : 555-80013
$11099$122.99
You Save$12.00
GPA-4 255 LPH GPA Fuel Pump Module

TANKS INC.

GPA-4 255 LPH GPA Fuel Pump Module

Part Number : 246-GPA-4
$22999
2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

JEGS

2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

Part Number : 555-80006
$24499$269.99
You Save$25.00
6-Ton Jack Stands

JEGS

6-Ton Jack Stands

Part Number : 555-80037
$8099$89.99
You Save$9.00

GM
EFI Fuel Tank
  • 1970-1973 Chevy Camaro, Pontiac Firebird
  • Notched Corners
  • w/2-Piece Filler Neck
  • Fuel Injection Ready
  • Uses GPA Series Fuel Pumps
  • Uses 5-Bolt Sender
  • EFI-Style Baffling
  • 20.5-Gallon
  • Steel
  • Silver Powder Coat

    Tanks Inc. TM42A-T EFI Gas Tank Features:

    • This Notched Corner Tank is Perfect for Mini-Tub Applications
    • Both Corners are Notched 6 in. In and 6 in. Back for Better Tire and Exhaust Clearance
    • 1970-73 Chevy Camaro and Pontiac Firebird EFI Fuel Tank
    • Fuel Injection Ready
    • Utilizes GPA Series Fuel Pumps (Sold Separately), Available in Sizes from 109 to 450 Liters per Hour
    • Uses Aftermarket 5-Bolt Senders (Sold Separately) with Multiple Ohm Ranges to Work with Factory (0-90 Ohm) or Aftermarket Gauges (If Using Tube Sender or Reed Sender, Length is 7 in.)
    • EFI Style Internal Baffling with Extra-Large 4.8 Liter Dual Tube Baffled Fuel Tray to Prevent Fuel Pump Starvation
    • Perfect for Pro-Touring, Autocross, or Road Racing Applications
    • Fuel Pump and Sender are Recessed in the Tank for Easy Installation with No Modification Needed
    • Looks Like an OE Tank When Installed
    • Coated Galvanized Steel then Powder Coated Silver
    • 18-Gallon Capacity
    • 1-3/4 in. Deeper than Stock
    • 39-3/8 in. x 20-7/8 in. x 8-3/4 in.

    Tanks Inc. TM42A-T EFI Gas Tank Includes:

    • 2-Piece Neck Design that Connects with Supplied 2 in. ID Rubber Hose
    • Longer Straps
    • Tanks Inc. Fuel Tanks — Premium Replacements, Built for Restorations and Street Rods

      Tanks, Inc. produces high-quality replacement fuel tanks engineered to deliver top performance and durability for classic cars, street rods, and custom builds. Their tanks are available in steel, stainless steel, and roto-molded polyethylene, with precision stamping, full baffling, and fit-for-use features. Whether you need an exact OE-style fit or want upgraded capacity with modern fuel delivery components, Tanks, Inc. has options built to look good, hold up, and perform.

      Show More

      When it comes to delivering dependable fuel delivery and restoration-grade construction, the Tanks Inc. Universal Coated Steel EFI Gas Tank stands out. Designed by Tanks Inc. — a trusted name in fuel-system innovation since 1980 — this tank is engineered for classic cars, street rods and custom builds where fit, quality and performance all matter.

      Constructed with coated alloy or stainless steel, the design includes precision stamping, full baffling and EFI-ready features so you get worry-free operation in demanding conditions. Whether you’re replacing an aging unit or upgrading for higher performance, this tank allows you to confidently upgrade your complete fuel system.

      Key benefits include: Direct-fit options as well as universal models, making it easier to match your build and minimize fabrication. Corrosion-resistant steel or stainless materials — ideal for years of service and resale value. Internal pickup tubing and baffling reduce fuel slosh and support modern fueling demands, especially under load or cornering. Designed to accept modern senders and fuel equipment, giving you flexibility for your setup.

      No more worrying about a generic “automotive fuel tank” that lacks fitment precision or durability. For premium restoration builds or performance upgrades, this solution meets your needs. Whether you’re sourcing new “automotive gas tanks” for a classic or seeking a high-quality “auto gas tanks” replacement for your ride, don’t compromise — click Add to Cart and take your fuel system to the next level.

    Part TypeFuel Tank
    Product LineTanks Inc. Fuel Tanks and Components
    BrandTANKS INC.
    Package Height10.0
    Package Width27.0
    Package Length46.0
    Weight25.0 PG
    Part CategoryReplacement Parts
    Sending Unit IncludedNo
    Fuel Pump IncludedNo
    Baffled SumpYes
    ColorSilver
    QuantitySold Individually
    Mounting Hardware IncludedNo
    Fuel Tank MaterialSteel
    Fuel Tank Capacity18 gallons
    Lock Ring Kit IncludedNo
    Part FitmentDirect Fit
    Mounting Straps IncludedNo
    Fuel Sump Welded On TankNo
    Vendor Part NumberTM420AN-T
    Package Qty1
    Package TypeEA
