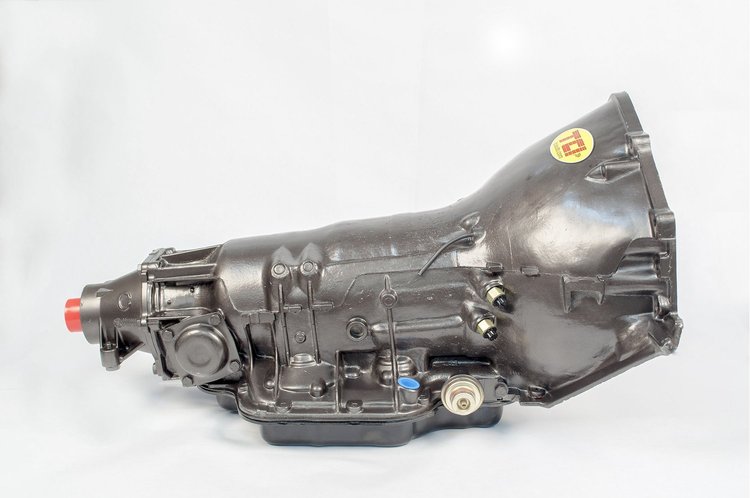

211005 Super StreetFighter Transmission Chevy 1964-91 TH400 (Non Variable Pitch)
InfoVehicle Info Needed
TCIPART NUMBER: 890-211005

211005 Super StreetFighter Transmission Chevy 1964-91 TH400 (Non Variable Pitch)

$2,89595
Truck Freight
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

GM
Super StreetFighter Transmission
Chevy
  • 1964-91 TH400 (Non Variable Pitch)
  • Non Lock-up
  • All Chevy Engines (875 HP)
  • Tailshaft: 4"

    TCI 211005 Features:

    Typical TCI Super StreetFighter transmission features are Red Eagle clutches, Kolene treated steel plates, Red Eagle-lined, extra-wide Powerbands, larger diameter servo assemblies, an improved lubrication system, new sprags/roller clutches (upgraded in certain models), enhanced hard parts where applicable, chrome-plated, TCI-logo transmission pan, increased thrust capacity, higher line pressure for extra firm shifts and greater torque capacity with less slippage, as well as being TCI factory blueprinted, inspected and dyno tested.

    • Perfect for normally aspirated vehicles with engines producing up to 1025 horsepower
    • Manual/automatic valve body means most units allow you to manually shift the vehicle into each gear change or remain fully automatic
    • Upshifts and downshifts right when you move the lever, with no lag or governor override to shave time off your ETs
    • When you select the normal drive position, the transmission retains positive, automatic shifts for the ease of driving

    TCI 211005 Notes:

    • Speedometer drive gear and driven gear not included
    • Beginning in 1978 for Chrysler and 1979 for AMC, a lock-up torque converter was used in many transmissions. You cannot interchange a lock-up converter for a non-lock converter
    • When changing to an aftermarket torque converter, it may be necessary to replace the OEM flexplate and mounting bolts
  • Part TypeAutomatic Transmission
    BrandTCI
    Package Height21.0
    Package Width22.0
    Package Length31.0
    Weight152.95 PG
    Part CategoryPerformance Parts
    Transmission Mfr.GM
    Flexplate Shield Built InNo
    Transmission Drive TypeRWD
    Pan TypeStock
    First Gear Ratio (Automatic Transmissions)2.48
    QuantitySold individually
    Transmission Mfr. CodeTH400
    Yoke StyleSlip On
    Dipstick IncludedNo
    Valve Body StyleAutomatic/Manual
    Trans-Brake IncludedNo
    Tailshaft Length4 in (101.6 mm)
    Input Spline Quantity30 in (762 mm)
    Fluid Fill LocationCase
    Part FitmentSemi Universal
    Case MaterialAluminum
    Transmission Shield Built InNo
    Safety RatingNot SFI Approved
    LockupNo
    Vendor Part Number211005
    Package Qty1
    Package TypeEA
