TCIPART NUMBER: 890-212506

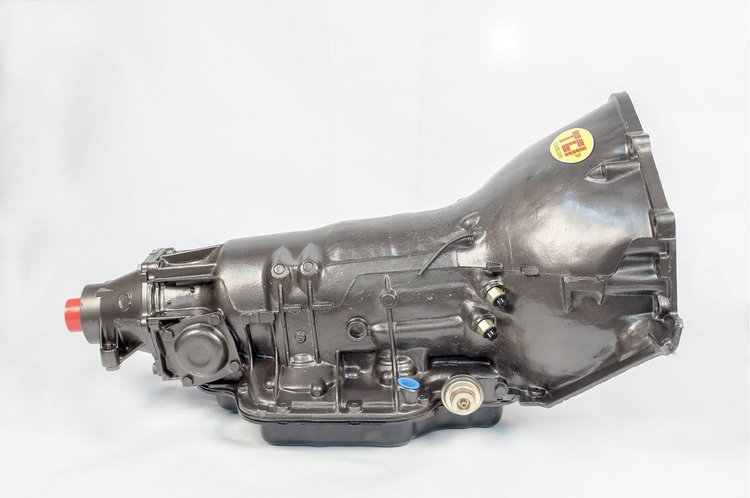

Drag Race Transmission Chevy TH400

Name: Drag Race Transmission Chevy TH400
Brand: TCI
SKU: 890-212506
Price: 3995.95 USD
Availability: InStock

^$3,995⁹⁵

Truck Freight

Ships on Oct 28, 2026

Lowest Price Guarantee

Currently Unavailable

This product is currently not available. Please call customer service for assistance at 1-800-345-4545.

General Motors

TH400
All Chevy
Large Yoke
Reverse Shift Pattern
4'' Tailshaft
Transbrake
Cast aluminum pan (+2 quarts)
Premium Clutches
Modified front drum and 300M input shaft

TCI Drag Race Transmissions are triple tested so you can be confident you're getting a race ready performance transmission that is superior in both form and function.

Features

Performance high gear clutches and bands
No automatic shift features
2nd and 3rd ''quick shift'' (except Powerglide)
Heavy-duty planetaries
Special heat-treated sprag races
Improved lubrication system
Painted transmission pan
More torque and increased thrust capacity
Blueprinted and dyno tested Note: Speedometer drive gear and driven gear not included.

Part TypeAutomatic Transmission

Product LineTCI Drag Race Transmissions

BrandTCI

Package Height22.0

Package Width23.0

Package Length30.5

Weight161.0 PG

Part CategoryPerformance Parts

Transmission Mfr.GM

Flexplate Shield Built InNo

Transmission Drive TypeRWD

Pan TypeDeep cast aluminum

First Gear Ratio (Automatic Transmissions)2.48

QuantitySold individually

Transmission Mfr. CodeTH400

Yoke StyleSlip On

Dipstick IncludedNo

Input StyleVaccu Melt 300 steel billet

Valve Body StyleFull manual

Trans-Brake IncludedYes

Tailshaft Length4 in (101.6 mm)

Input Spline Quantity30 in (762 mm)

Fluid Fill LocationCase

Part FitmentSemi Universal

Case MaterialAluminum

Transmission Shield Built InNo

Safety RatingNot SFI Approved

LockupNo

Vendor Part Number212506

Package Qty1

Package TypeEA
