High Performance Flex Band GM TH400/4L80E
InfoVehicle Info Needed
TCIPART NUMBER: 890-225105

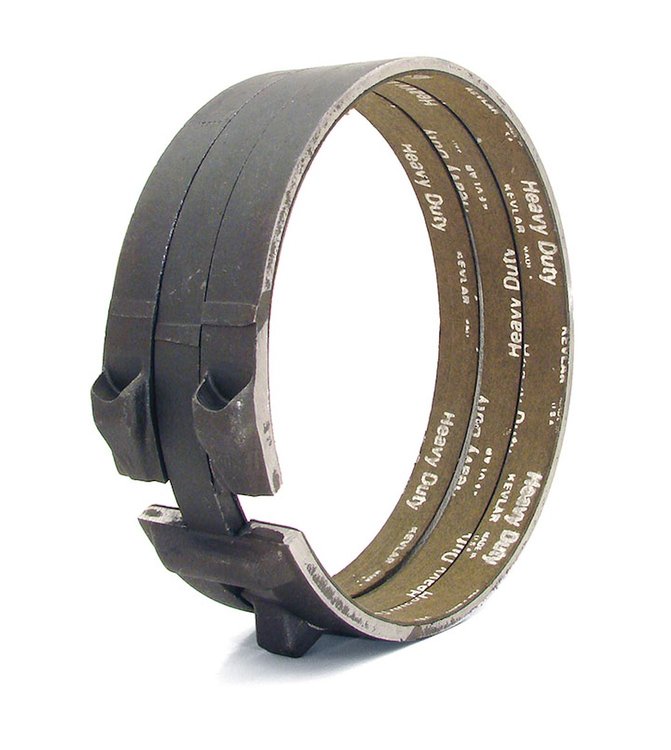

High Performance Flex Band GM TH400/4L80E

$4395
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

123-Piece Tool Set with Carry Case

JEGS

123-Piece Tool Set with Carry Case

Part Number : 555-80427
$3199$51.99
You Save$20.00
Rolling Work Table [200 lb. Capacity]

JEGS

Rolling Work Table [200 lb. Capacity]

Part Number : 555-81420
$4999$120.99
You Save$71.00

GM
    High Performance Flex Band
  • GM TH400/4L80E
  • Reverse
  • Kevlar Lined


    High Performance Flex Bands
    The band lining of TCI's High Performance Flex Bands features a higher coefficient of friction for higher torque capacity, producing quicker, more positive 2nd gear shifts. Maximum kickdown band life is assured with TCI's special band. A must for competitive applications.

    Show More

    TCI's Powerbands
    TCI's Powerbands are made from a Kevlar bullet-proof material and are up to 18% wider than original equipment. Powerbands provide greater torque capacity and more positive 1-2 shifts. The band's anchor area is constructed of extra thick, heat treated, high-carbon steel to resist the stretching and breakage associated with stock bands.

    Automatic Transmission Band Adjustments Chart Below:

    Model

    Intermediate Band AdjustmentLow-Reverse Band Adjustment
     Chrysler
     727 StreetFighter® Tighten 72 in./lbs., Back Off 2 Turns Counterclockwise Tighten 72 in./lbs., Back Off 2 1/2 Turns Counterclockwise
     727 Full Manual Tighten 72 in./lbs., Back Off 2 Turns Counterclockwise Tighten 72 in./lbs., Back Off 2 Turns Counterclockwise
     727 Transbrake Tighten 120 in./lbs., Back off 1 3/4 Turns Counterclockwise Tighten 120 in./lbs., Back Off 1 1/2 Turns Counterclockwise
     904 StreetFighter®  Tighten 72 in./lbs., Back off 2 Turns Counterclockwise

     Single Wrap Band:  Tighten 72 in./lbs., Back Off 3 1/4 Turns Counterclockwise

     Double Wrap Band: Tighten 72 in./lbs., Back Off 4 Turns Counterclockwise

     904 Full Manual Tighten 72 in./lbs., Back off 2 Turns Counterclockwise Tighten 72 in./lbs., Back off 2 Turns Counterclockwise
     904 Transbrake Tighten 120 in./lbs., Back off 1 3/4 Turns Counterclockwise Tighten 120 in./lbs., Back Off 1 1/2 Turns Counterclockwise
     Ford
     C4 Except Transbrake Tighten 120 in./lbs., Back off 1 3/4 Turns Counterclockwise Tighten 120 in./lbs., Back off 3 Turns Counterclockwise
     C4 Transbrake Tighten 120 in./lbs., Back off 1 1/2 Turns Counterclockwise Tighten 120 in./lbs., Back off 2 Turns Counterclockwise
     C6 Tighten 120 in./lbs., Back off 1 1/2 Turns Counterclockwise                                     ----
     GM
     Powerglide Tighten 72 in./lbs., Back off 4 Turns Counterclockwise                                     ----

     Note:  No external band adjustments on Ford AOD, AODE/4R70W, 5R55S & E4OD transmissions and GM TH350, TH400, 4L80E, 2004R & 700R4 transmissions.

Part TypeAutomatic Transmission Band
Product LineTCI High Performance Flex Bands
BrandTCI
Package Height1.7
Package Width6.1
Package Length7.1
Weight1.8 PG
Part CategoryPerformance Parts
Automatic Transmission Band MaterialKEVLAR«
QuantitySold as a set
Vendor Part Number225105
Package Qty1
Package TypeEA
