This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

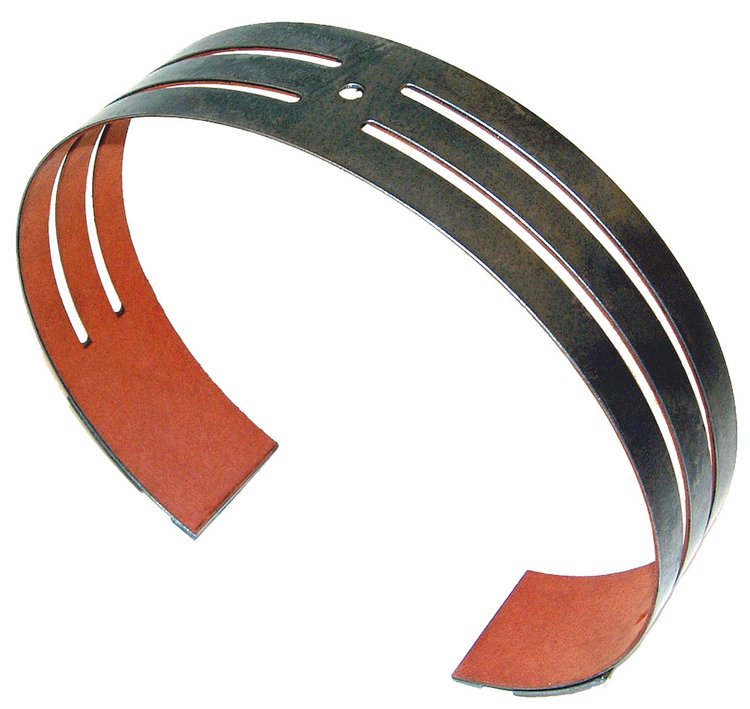

- High Performance Flex Band
- Ford AOD/AODE/4R70W
- Reverse
- Kevlar Lined
High Performance Flex Bands
The band lining of TCI's High Performance Flex Bands features a higher coefficient of friction for higher torque capacity, producing quicker, more positive 2nd gear shifts. Maximum kickdown band life is assured with TCI's special band. A must for competitive applications.
Show More
TCI's Powerbands
TCI's Powerbands are made from a Kevlar bullet-proof material and are up to 18% wider than original equipment. Powerbands provide greater torque capacity and more positive 1-2 shifts. The band's anchor area is constructed of extra thick, heat treated, high-carbon steel to resist the stretching and breakage associated with stock bands.
Automatic Transmission Band Adjustments Chart Below:
Model | Intermediate Band Adjustment | Low-Reverse Band Adjustment |
| Chrysler | ||
| 727 StreetFighter® | Tighten 72 in./lbs., Back Off 2 Turns Counterclockwise | Tighten 72 in./lbs., Back Off 2 1/2 Turns Counterclockwise |
| 727 Full Manual | Tighten 72 in./lbs., Back Off 2 Turns Counterclockwise | Tighten 72 in./lbs., Back Off 2 Turns Counterclockwise |
| 727 Transbrake | Tighten 120 in./lbs., Back off 1 3/4 Turns Counterclockwise | Tighten 120 in./lbs., Back Off 1 1/2 Turns Counterclockwise |
| 904 StreetFighter® | Tighten 72 in./lbs., Back off 2 Turns Counterclockwise | Single Wrap Band: Tighten 72 in./lbs., Back Off 3 1/4 Turns Counterclockwise Double Wrap Band: Tighten 72 in./lbs., Back Off 4 Turns Counterclockwise |
| 904 Full Manual | Tighten 72 in./lbs., Back off 2 Turns Counterclockwise | Tighten 72 in./lbs., Back off 2 Turns Counterclockwise |
| 904 Transbrake | Tighten 120 in./lbs., Back off 1 3/4 Turns Counterclockwise | Tighten 120 in./lbs., Back Off 1 1/2 Turns Counterclockwise |
| Ford | ||
| C4 Except Transbrake | Tighten 120 in./lbs., Back off 1 3/4 Turns Counterclockwise | Tighten 120 in./lbs., Back off 3 Turns Counterclockwise |
| C4 Transbrake | Tighten 120 in./lbs., Back off 1 1/2 Turns Counterclockwise | Tighten 120 in./lbs., Back off 2 Turns Counterclockwise |
| C6 | Tighten 120 in./lbs., Back off 1 1/2 Turns Counterclockwise | ---- |
| GM | ||
| Powerglide | Tighten 72 in./lbs., Back off 4 Turns Counterclockwise | ---- |
Note: No external band adjustments on Ford AOD, AODE/4R70W, 5R55S & E4OD transmissions and GM TH350, TH400, 4L80E, 2004R & 700R4 transmissions.
