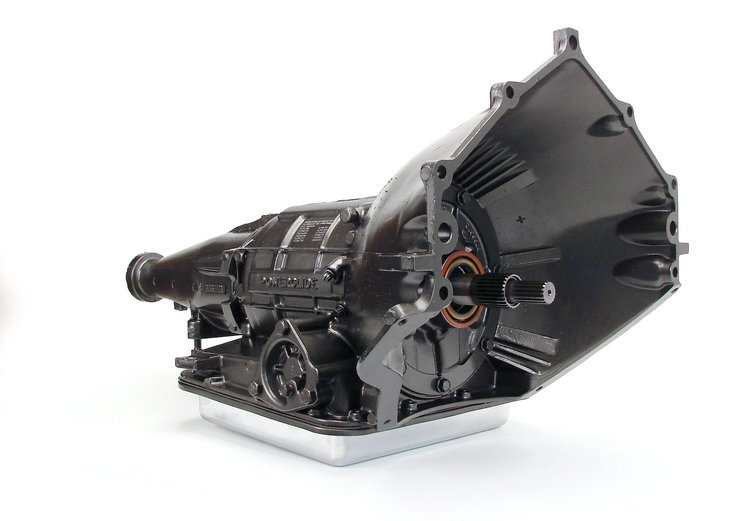

TCI Circlematic Transmission
InfoVehicle Info Needed
TCIPART NUMBER: 890-711182

TCI Circlematic Transmission

$1,89595
Truck Freight
ShippingShips on 12/21/2026
Lowest PriceLowest Price Guarantee

Items You Need

Automatic Transmission Fluid High-Temp ATF

RED LINE OIL

Automatic Transmission Fluid High-Temp ATF

Part Number : 816-30204
$1879
Quick Shift Automatic Transmission Fluid [1-gallon]

JEGS

Quick Shift Automatic Transmission Fluid [1-gallon]

Part Number : 555-28071
$4274$51.99
You Save$9.25
Automatic Transmission Fluid D4 ATF 1 Quart

RED LINE OIL

Automatic Transmission Fluid D4 ATF 1 Quart

Part Number : 816-30504
$1879
Powerglide Overflow Tank 2" H x 11-1/4" W x 2" D

JEGS

Powerglide Overflow Tank 2" H x 11-1/4" W x 2" D

Part Number : 555-60390
$12799$138.99
You Save$11.00

    Circlematic Transmission
    Transmission: Powerglide
    Length: 27-9/16''
    Low Gear Ratio: 1.82 to 1
    Valve Body: Manual Shift, Reverse Pattern
    Drum & Hub: Steel Drum, Steel Hub

    Recommended for all classes, can be raced in low or high gear, shift on the fly. Must be used with a functional converter.

TCI Circlematic Transmissions are specifically designed for use in oval track racing applications. Featured inside each transmission, you'll find high performance clutches, bands and a steel clutch hub. The Powerglide transmissions contain a modified planetary gear set. On average, lightweight Circlematic Transmissions are 50 to 60 pounds lighter than manual 4-speed transmissions, and cost $500-$600 less for a basic automatic setup. These track-tested automatic Circlematic Transmissions are more responsive off the turns, have quicker engine picks, and have excellent throttle response in corners and on restarts, resulting in consistent performance improvements over a standard 4-speed setup. This consistency eliminates the need to have the clutch adjusted before each event. Each transmission is triple tested including the valve body, static hydraulic pressure, and final dyno testing to ensure the best performance for your circle track needs.

Show More

On the outside, you'll find a standard capacity steel or aluminum pan. Requires either a hollow torque converter or front pump drive (both available separately) and an external cooler is highly recommended.

Features

  • Weight and Cost Savings
  • Performance Improvements Include: Response Off Turns, Quicker Engine Pick-up, Increased Throttle Response
  • No Clutch Adjustment Needed
  • Powerglide Modified Output Shafts
  • 500-650 HP
Part TypeAutomatic Transmission
Product LineTCI Circlematic Transmissions
BrandTCI
Package Height22.0
Package Width23.0
Package Length38.0
Weight130.0 PG
Part CategoryPerformance Parts
Flexplate Shield Built InNo
Pan TypeStock
First Gear Ratio (Automatic Transmissions)1.82
QuantitySold individually
Yoke StyleSlip On
Dipstick IncludedNo
Input StyleVaccu Melt 300 steel billet
Valve Body StyleFull manual
Trans-Brake IncludedNo
Tailshaft Length11.5 in (292.1 mm)
Input Spline Quantity17 in (431.8 mm)
Fluid Fill LocationCase
Part FitmentSemi Universal
Case MaterialAluminum
Transmission Shield Built InNo
Safety RatingNot SFI Approved
LockupNo
Vendor Part Number711182
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
