CIRCLEMATIC 7442 5283 S LEV UP
InfoVehicle Info Needed
TCIPART NUMBER: 890-742018

CIRCLEMATIC 7442 5283 S LEV UP

$2,89595
Truck Freight
ShippingShips on 10/13/2026
Lowest PriceLowest Price Guarantee

GM Powerglide

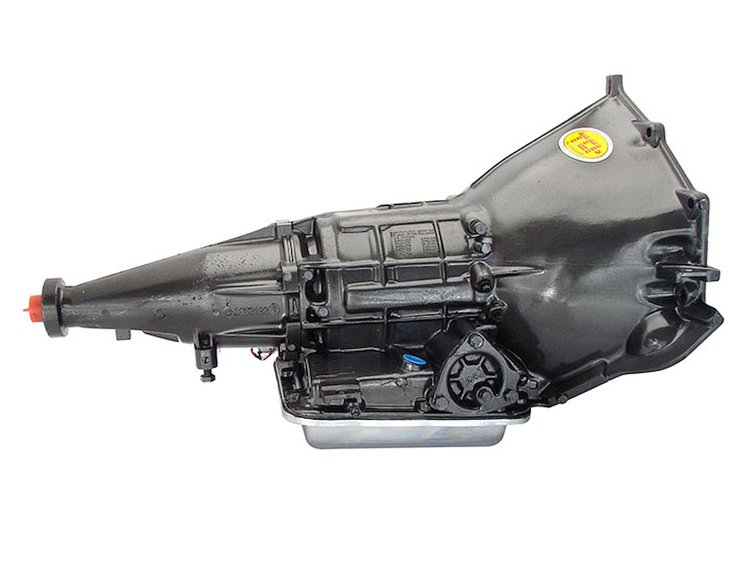

    GM Powerglide Circlematic Transmission
    Length: 27-9/16"
    Low Gear Ratio: 1.82:1
    Valve Body: Manual Shift, Forward Pattern for Working Converter
    Drum & Hub: Steel
    Oil Pan: Aluminum/Standard Capacity

  • Full manual design
  • Can be raced in low or high gear
  • Use with FastLap converter

TCI Circlematic Transmissions are specifically designed for use in oval track racing applications. Featured inside each transmission, you'll find high performance clutches, bands and a steel clutch hub. The Powerglide transmissions contain a modified planetary gear set. On average, lightweight Circlematic Transmissions are 50 to 60 pounds lighter than manual 4-speed transmissions, and cost $500-$600 less for a basic automatic setup. These track-tested automatic Circlematic Transmissions are more responsive off the turns, have quicker engine picks, and have excellent throttle response in corners and on restarts, resulting in consistent performance improvements over a standard 4-speed setup. This consistency eliminates the need to have the clutch adjusted before each event. Each transmission is triple tested including the valve body, static hydraulic pressure, and final dyno testing to ensure the best performance for your circle track needs.

Show More

On the outside, you'll find a standard capacity steel or aluminum pan. Requires either a hollow torque converter or front pump drive (both available separately) and an external cooler is highly recommended.

Features

  • Weight and Cost Savings
  • Performance Improvements Include: Response Off Turns, Quicker Engine Pick-up, Increased Throttle Response
  • No Clutch Adjustment Needed
  • Powerglide Modified Output Shafts
  • 500-650 HP
Part TypeAutomatic Transmission
Product LineTCI Circlematic Transmissions
BrandTCI
Package Height20.25
Package Width22.0
Package Length30.0
Weight110.0 PG
Part CategoryPerformance Parts
Flexplate Shield Built InNo
Pan TypeAluminum
First Gear Ratio (Automatic Transmissions)1.82
QuantitySold individually
Yoke StyleSlip On
Dipstick IncludedNo
Clutch HubSteel
Valve Body StyleFull manual
Trans-Brake IncludedNo
Tailshaft Length11.5 in (292.1 mm)
Input Spline Quantity17 in (431.8 mm)
Fluid Fill LocationCase
Part FitmentSemi Universal
Case MaterialAluminum
Transmission Shield Built InNo
Safety RatingNot SFI Approved
LockupNo
Vendor Part Number742018
Package Qty1
Package TypeEA
No Questions
No Reviews
