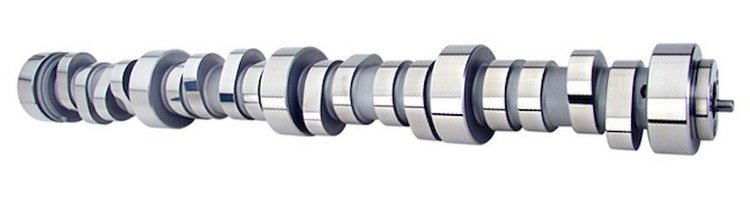

Turbo Stage-2 Camshaft
• GM 4.8L & 5.3L Engines
• Duration: 219 Int/223 Exh
• Lift: .617 in. Int/.595 in. Exh
• LSA: 114+3



  Tick Performance TPT002TR Features:

  This camshaft is NEW for 2015! Tick Performance proudly offers Tick Performance Elite Series of Camshafts designed specifically for 4.8L & 5.3L Engines! Using the latest and greatest technology available, we've put together a complete line of Camshafts that are designed to meet every goal, from mild to wild. Tick Performance Elite Series of Camshafts are all manufactured by Cam Motion and are updated with a new version every time an advancement in valvetrain technology becomes available, so they're ALWAYS cutting-edge! Although Tick Performance suggest measuring for piston-to-valve clearance during ANY camshaft install, every Elite Series Camshaft is designed to fit in a stock engine & stock heads with adequate clearance unless otherwise noted. These cams are designed to maximize power, reliability and valvetrain longevity.

  Tick Performance Turbo Stage 2 Camshaft for 4.8L & 5.3L Engines
  219/223 | .617"/.595" | LSA114+3

  Designed for: All 4.8L & 5.3L engines, including LR4, LM7, L59, LM4, L33, etc.
  Basic Operating RPM Range: 2000-6400
  Expected Horsepower Gains: 60-70RWHP over the stock camshaft in a well-optimized setup (the higher the boost, the higher the gains!)
  Stall Converter Required: Yes, 2800-3200RPM+
  Rear Gear Upgrade Required: Yes, 3.08 is the minimum suggested
  Works Well with Nitrous: No, designed for turbocharged applications
  Will Pass Most Smog Emissions: Yes
  Turbocharger Size Recommendation: Single 72mm-76mm turbochargers and twin 58mm-62mm turbochargers. Heavier vehicles (4,000LBS+) using single 76mm-80mm turbochargers or twin 62mm-70mm turbochargers should highly consider this camshaft for added low-end torque. 4.8L engines with larger single 76-80mm turbochargers and twin 62mm-70mm turbochargers should highly consider this camshaft due to their smaller displacement and shorter stroke. This is the largest camshaft Tick Performance recommend for a turbocharged 4.8L. Certain 4.8L racing applications may need more duration, but it is unusual for this size engine. If you're unsure what you need, please contact us directly.

  Our Tick Performance Turbo Stage 2 Camshaft for 4.8 & 5.3 liter engines is designed for those who want to make more power than possible with the Stage 1 camhaft and are doing so with a larger turbocharger. This camshaft is intended for use with single 72mm-76mm turbochargers and twin 58mm-62mm turbochargers. Those with 4.8 liter engines in lighter vehicles utilizing single 76mm-80mm turbochargers or twin 62mm-70mm turbochargers should highly consider this camshaft due to their smaller displacement and shorter stroke. Those with 5.3 liter engines in heavier applications (4000LBS+) utilizing single 76mm-80mm turbochargers and twin 62mm-70mm turbochargers should highly consider this camshaft for additional low end torque. Idle quality will be slightly rougher than stock with a noticeable lope. Tick Performance strongly suggest the use of Tick Performance Tick/PAC Dual Valvesprings and hardened pushrods with this camshaft (sold separately.) Hundreds of hours were spent developing this camshaft to perform precisely the way Tick Performance advertise, so as a result, changes to the LSA or any other specification of this camshaft are not available.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
