TOTAL SEALPART NUMBER: 901-M9190-130

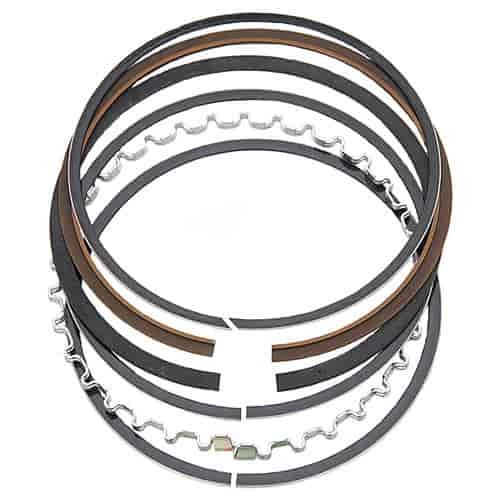

Gapless Max Seal Piston Ring Set Bore Size: 4.380"
$38884
4.320"-4.630" Bore
- Gapless Max Seal Piston Ring Set
- Bore Size: 4.380"
- Top Ring: 1/16"
- Second Ring: 1/16"
- Oil Ring: 3/16"
Gaps open as standard piston rings wear, allowing more combustion gases to escape (blow-by). Total Seal Gapless rings solve this problem with two-part interlocking rings to close gaps and to improve piston-cylinder seals. As gapless rings wear, the gaps stay sealed giving you better over all performance that lasts.
Features:
- Ideal For Naturally Aspirated, Forced Induction, Or Mild Nitrous Applications (Such As Hot Street, Drag & Road Race, Circle & Dirt Track, Tractor Pull)
- Provides Increased Horsepower & a Wider Torque Curve
- Gives You 5" to 6" in./lbs More Engine Vacuum
- Allows For Better Oil Control
Part TypePiston Ring
Product LineTotal Seal Gapless Max Seal Piston Rings
BrandTOTAL SEAL
Package Height2.1
Package Width5.0
Package Length9.9
Weight1.2 PG
Part CategoryPerformance Parts
Top Ring IncludedYes
Oil Ring MaterialStainless steel
Oil Ring IncludedYes
File FitYes
QuantitySold as a set
Oil Ring Thickness0.188 in (4.8 mm)
Second Ring MaterialCast iron
Oil Ring Tension Rating23 lb
Second Ring IncludedYes
Second Ring Facing MaterialCast iron
GaplessYes
Top Ring Facing MaterialDuctile iron
Top Ring Thickness0.063 in (1.6 mm)
Top Ring MaterialDuctile iron
Part FitmentSemi Universal
Bore (Mm)111.125
Oil Ring TensionStandard
Second Ring Thickness1/16
Bore4.375 in (111.125 mm)
Vendor Part NumberM9190 130
Package Qty1
Package TypeEA
