Trail-Gear 300680-1-KIT Features:

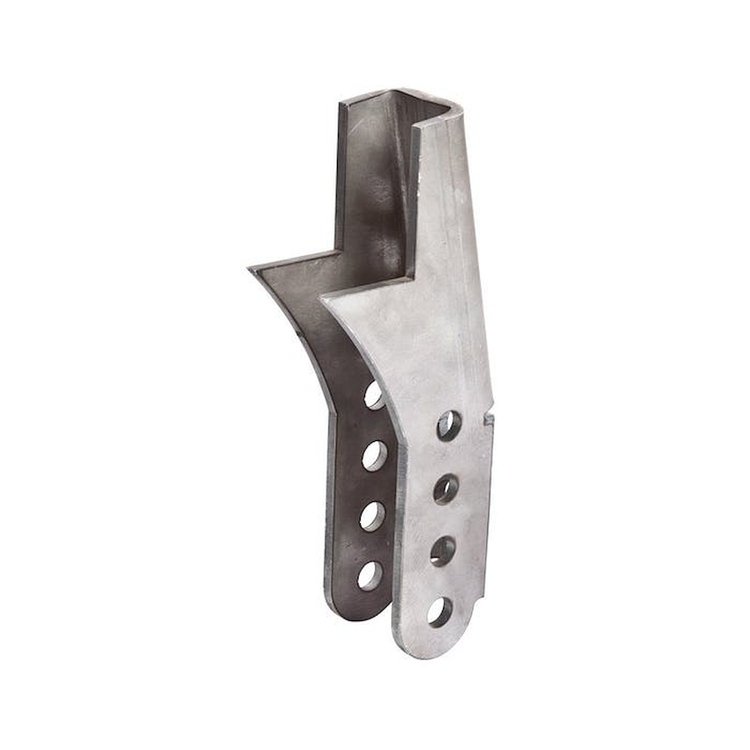

Due to recent customer demand Trail-Gear now offers an adjustable panhard bracket. Laser cut and formed in the USA using ¼" steel. Trail-Gear’s adjustable panhard includes four sets of holes to mount the panhard to give the user more freedom in mounting suspension. The center distance between the holes is 1-1/4" giving a total of 3-3/4" of adjustment. The bracket is shipped raw and un-welded so the bracket can be easily trimmed down to the desired length.

This bracket was designed to work with ¾ inch rod ends using misalignment spacers with an inside width of 1-3/4" and a 9/16" thru hole.

• Laser cut and formed using ¼” steel
• Center distance between the holes is 1-1/4” giving a total of 3-3/4” of adjustment
• Shipped raw and un-welded so the bracket can be easily trimmed down to the desired length
• Designed to work with ¾ inch rod ends using misalignment spacers with an inside width of 1-3/4” and a 9/16” thru hole
• NOT DESIGNED TO WORK WITH HIGH STEER

Fits:

• 1979-1995 Toyota Pickup (All Engines)
• 1985-1995 Toyota 4Runner (All Engines)
