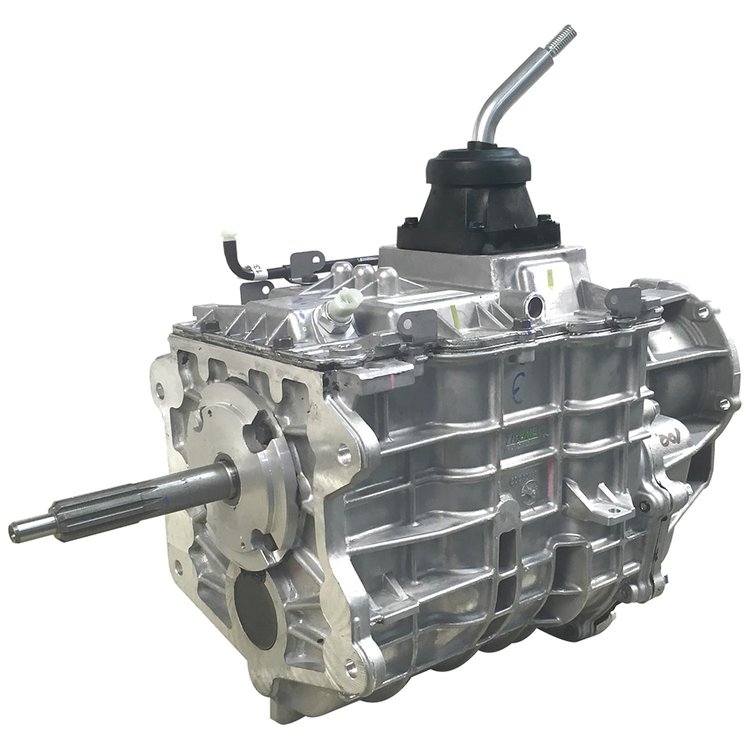

TDET17341 TR-4050 5-Speed Manual Transmission, 4WD Vehicles, 1.125 in. Input Shaft Diameter, 10-Spline [600 ft.-lbs. TQ Capacity
InfoVehicle Info Needed
TREMECPART NUMBER: 702-TDET17341

TDET17341 TR-4050 5-Speed Manual Transmission, 4WD Vehicles, 1.125 in. Input Shaft Diameter, 10-Spline [600 ft.-lbs. TQ Capacity

$3,29500
Truck Freight
ShippingShips on 11/23/2026
Lowest PriceLowest Price Guarantee

Items You Need

Low-Profile Transmission Jack 1000 lb. Capacity

JEGS

Low-Profile Transmission Jack 1000 lb. Capacity

Part Number : 555-79012
$12299$225.99
You Save$103.00
Transmission Teardown Work Station [1/2-Ton Capacity]

JEGS

Transmission Teardown Work Station [1/2-Ton Capacity]

Part Number : 555-81432
$49999$574.99
You Save$75.00
Lo Boy Creeper 250 lb. Capacity

JEGS

Lo Boy Creeper 250 lb. Capacity

Part Number : 555-81154
$5999$65.99
You Save$6.00
Flywheel and Flexplate Turning Tool

JEGS

Flywheel and Flexplate Turning Tool

Part Number : 555-60129
$1499$16.99
You Save$2.00

4WD
TR-4050 5-Speed Manual Transmission
  • 4WD Vehicles
  • Aluminum Case
  • 1.125 in. Input Shaft Diameter
  • 10-Spline
  • 600 ft.-lbs. TQ Capacity

    Tremec TDET17341 Features:

    The TREMEC TR-4050 5-speed manual transmission is designed for longitudinal engine vehicles and is particularly suited for light and medium-duty trucks. It includes a single overdrive and a lightweight aluminum housing. All forward gears are fully synchronized and use a carbon friction material for improved shift quality. Tapered roller bearings are used to minimize noise, vibration, and harshness (NVH) and improve efficiency. A standard six-bolt Power Take-Off (PTO) located on the right side of the transmission offers users the ability to run a variety of hydraulic accessories.

    • Based on TR-4050 used in current OEM production
    • Die-cast aluminum case saves weight while offering considerable rigidity
    • All gears synchronized
    • Multiple shift locations provide design and installation flexibility
    • First Gear Ratio: 6.16:1
    • Second Gear Ratio: 3.11:1
    • Third Gear Ratio: 1.71:1
    • Fourth Gear Ratio: 1.00:1
    • Fifth Gear Ratio: 0.76:1
    • Reverse Gear Ratio: 6.03:1
  • Part TypeManual Transmission
    BrandTREMEC
    Package Height36.0
    Package Width36.0
    Package Length40.0
    Weight215.0 PG
    Part CategoryPerformance Parts
    Fourth Gear Ratio1.00:1
    Fifth Gear Ratio0.76:1
    Yoke IncludedNo
    Number Of Gears5
    Reverse Gear Ratio6.03:1
    Torque Capacity (Ft/Lbs.)600
    Second Gear Ratio3.11:1
    QuantitySold Individually
    First Gear Ratio6.16:1
    Bell Housing IncludedNo
    Input Shaft Diameter1.125 in.
    Part FitmentSemi Universal
    Shifter IncludedYes
    Case MaterialAluminum
    Third Gear Ratio1.71:1
    Input Shaft Spline Quantity10
    Vendor Part NumberTDET 17341
    Package Qty1
    Package TypeEA
