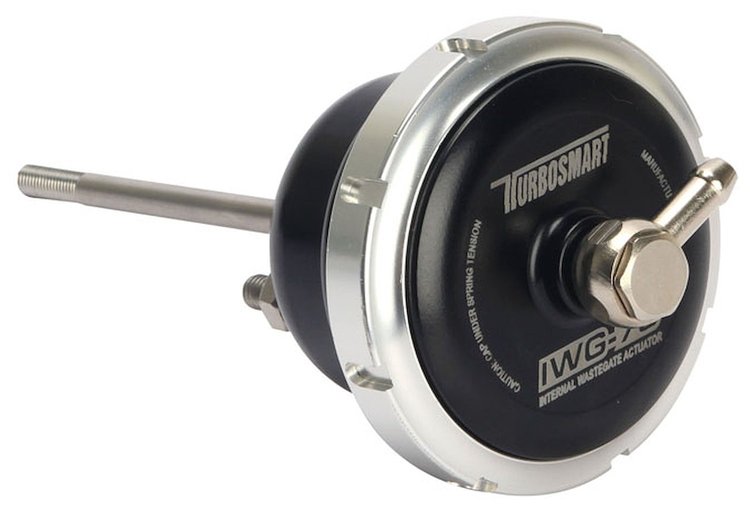

IWG75 Internal Wastegate Actuator Ford Focus ST 2.0L Ecoboost
InfoVehicle Info Needed
TURBOSMARTPART NUMBER: 911-TS-0622-5072

IWG75 Internal Wastegate Actuator Ford Focus ST 2.0L Ecoboost

$22949
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

10 PSI Outer Wastegate Spring for Turbosmart Ultra-Gate38, Comp-Gate40 and Hyper-Gate45 [Brown/Blue]

TURBOSMART

10 PSI Outer Wastegate Spring for Turbosmart Ultra-Gate38, Comp-Gate40 and Hyper-Gate45 [Brown/Blue]

Part Number : 911-TS-0505-2005
$3959
11 PSI Middle Wastegate Spring for Turbosmart Ultra-Gate38, Comp-Gate40 and Hyper-Gate45 [Brown/Red]

TURBOSMART

11 PSI Middle Wastegate Spring for Turbosmart Ultra-Gate38, Comp-Gate40 and Hyper-Gate45 [Brown/Red]

Part Number : 911-TS-0505-2004
$3959
7 PSI Middle Wastegate Spring for Turbosmart Ultra-Gate38, Comp-Gate40 and Hyper-Gate45 [Brown/Purple]

TURBOSMART

7 PSI Middle Wastegate Spring for Turbosmart Ultra-Gate38, Comp-Gate40 and Hyper-Gate45 [Brown/Purple]

Part Number : 911-TS-0505-2003
$3959
3 PSI Inner Wastegate Spring for Turbosmart Ultra-Gate38, Comp-Gate40 and Hyper-Gate45 [Brown/Black]

TURBOSMART

3 PSI Inner Wastegate Spring for Turbosmart Ultra-Gate38, Comp-Gate40 and Hyper-Gate45 [Brown/Black]

Part Number : 911-TS-0505-2001
$3959

Ford
    IWG75 Internal Wastegate Actuator
  • Ford Focus ST 2.0L Ecoboost
  • 7 psi Spring Pressure
  • Black Anodized Finish

    Ford Focus ST 2.0L Ecoboost Internal Wastegate Actuator (IWG) provides better turbo response and greater sensitivity when managing boost pressures. Designed as a direct bolt-on replacement for the factory part, the Focus ST IWG is easy to install and requires no special tools or fabrication. Supplied with: Bracket and Fitting Hardware, Adjustment Nuts, Brown/Purple 7psi Middle Spring (installed).

    Features:
  • Silicone diaphragm with Nomex reinforcement to withstand high temperatures
  • High grade, billet aluminum construction
  • Stainless steel rods and connecting clevis for corrosion resistance
  • Locking Collar design cap allows for quick spring changes
  • Ideal for use with any Turbosmart boost controller


    Click Here to see Wastegate PSI/Bar/Kpa Spring Pressure Chart

Providing better turbo response and greater sensitivity when managing boost pressures, Turbosmart Vehicle Specific Wastegate Actuators provide better turbo response and greater sensitivity when managing boost pressures. Designed as a direct bolt-on replacement for the factory part, the actuator is easy to install and requires no special tools or fabrication. It can't get any easier!

What is an internal wastegate actuator? On an internally wastegated turbo, the wastegate valve is built into the turbine housing. The wastegate valve is controlled by an internal wastegate actuator. As boost rises the actuator controls the position of the wastegate valve, which in turn controls the exhaust gas flow to the turbine.

Show More

The Turbosmart wastegate actuator range has been designed as a stronger, more reliable replacement for OEM parts. Like all Turbosmart parts, billet construction means they are stronger and more durable than a stock actuator, while Turbosmart's focus on performance means boost comes on faster and hold on longer.

Features:

  • Designed for Specific Vehicle Applications
  • Bolt-On Replacement, No Modifications
  • Base Spring Pressure Available from 3psi to 26psi
  • Stable Boost Control
  • Improved Boost Response
  • Flatter Boost Curve in the Top End
Part TypeTurbocharger Wastegate Actuator
Product LineTurbosmart Vehicle Specific Internal Wastegate Actuators
BrandTURBOSMART
Package Height3.3
Package Width3.7
Package Length11.2
Weight1.0 PG
Part CategoryPerformance Parts
Part FitmentDirect Fit
Vendor Part NumberTS-0622-5072
Package Qty1
Package TypeEA
