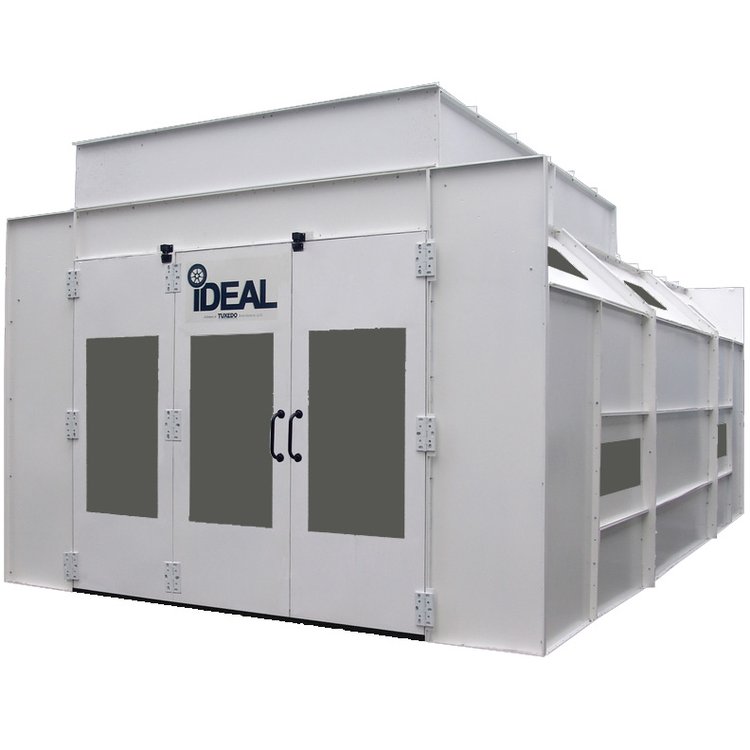

Semidowndraft paint booths pull in filtered from the ceiling and filter out the exhaust air through the back of the booth, providing a pressurized downdraft airflow.

Features

• Side downdraft airflow style
• Commercial-grade heavy-duty 18-gauge precision-cut Hip panel design
• Durable white powder-coated finish inside and outside
• Lighting provided by (10) High-quality LDPi Industrial Lighting UL Listed light fixtures with (4) bulbs per fixture (Light Bulbs Included)
• High-quality Air Filtration Co. intake and exhaust filters
• Tri-fold doors with viewing windows
• NEMA rated Dayton tube axial fan with spark resistant aluminum blades
• Fan powered by 3 HP single-phase 230 volts AC-60 Hz motor
• Rammstein Air deluxe control panel UL Lister
• Installed by 5/16 in. nuts and bolts
• Includes filters, lights, and fan

Specs

• Inside Dimensions: 26 ft. Length x 14 ft. Width x 9 ft. 3 in. Height
• Outside Dimensions: 29 ft. 4 in. Length x 14 ft. 4 in. Width x 9 ft. 7 in. Height
• CFM: 12,220 at 0.5 static pressure

Note: Ductwork not included, images shown with optional canopy plenum (not included)
