![SMOOTHIE 510 Series Size: 17 x 10" Bolt Pattern: 5x4.5/4.75 [Gloss Black]](https://www.jegs.com/images/mini_750/900/947/947-510-8010.jpg)
Vehicle Info NeededU.S. WHEELPART NUMBER: 947-510-8010

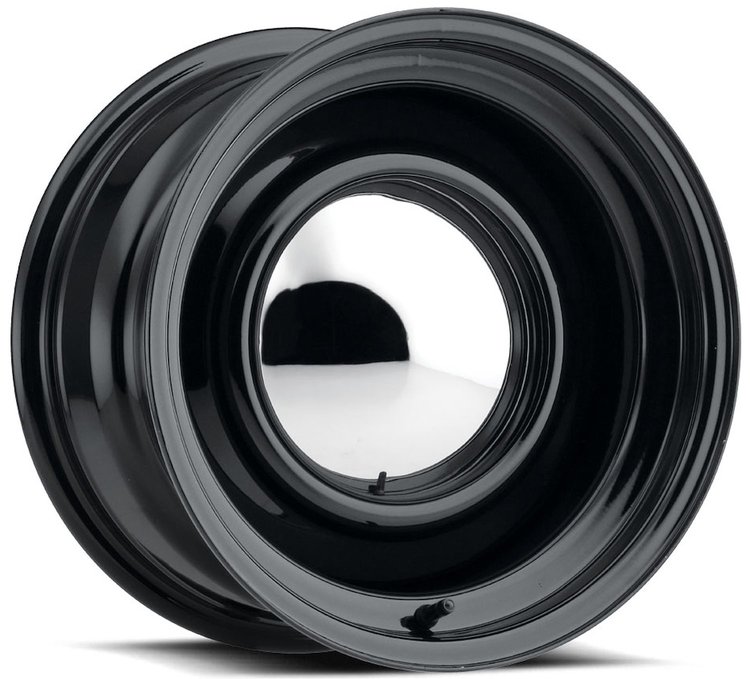

SMOOTHIE 510 Series Size: 17 x 10" Bolt Pattern: 5x4.5/4.75 [Gloss Black]
$28299
Ships on 10/30/2026
Lowest Price Guarantee17" Wheels
SMOOTHIE 510 Series Size: 17X10 " Bolt Pattern: 5x4.5/4.75 Back Spacing: 6.00" Offset: 13 mm Hub Bore: 81.03 mm Load Rating: 1700 lbs. Finish: Gloss Black
JEGS How to Measure Wheel Fitment: Click Here
510-8010 Features:
- All-steel 2-piece construction provides strength and durability
- The powder-coated finish adds a stylish appearance and protection
Notes:
- Lug nuts & center cap are not included
- Trim ring not included
All-Steel Gloss Black Wheels
U.S. Wheel 510-Series Smoothie Wheels feature all-steel construction and come in a gloss black powder-coated finish. They are available in the most popular sizes to fit your hot rod or rat rod car or truck.
Part TypeWheel
Product LineU.S. Wheel 510-Series Gloss Black Smoothie Wheels
BrandU.S. WHEEL
Package Height12.0
Package Width20.0
Package Length20.0
Weight41.0 PG
Part CategoryPerformance Parts
Valve Stems IncludedNo
Wheel Size17 x 10 in.
Lug Nut Seat TypeConical
Load Rating (Lbs.)1,700
Quantity1
Wheel MaterialSteel
Wheel FinishGloss Black
Wheel Construction2-piece
Back Spacing6 in (152.4 mm)
Bolt Pattern5 x 4.5 in., 5 x 4.75 in.
Offset0.511 in.
Backspacing6 in.
Valve Stem IncludedNo
Center Bore Diameter3.19 in.
Wheel Bolt Pattern5 x 4 1/2 & 5 x 4 3/4
Center Cap IncludedNo
Lug Nut Seat StyleConical
Load Rating1700 lbs.
Wheel Diameter17 in.
Wheel Offset13 mm (.5118 in)
Wheel TypeCar Street Wheels
Part FitmentUniversal
Wheel Width10 in.
Vendor Part Number510-8010
Package Qty1
Package TypeEA
