Vehicle Info NeededUMI PERFORMANCEPART NUMBER: 236-2661
Front Extended Coilover Mount for 1970-1981 GM F-Body
$22999
Ships on Sep 03, 2026
Lowest Price GuaranteeGM F-Body
- Extended Coilover Mount
- 1970-1981 GM F-Body
- Front

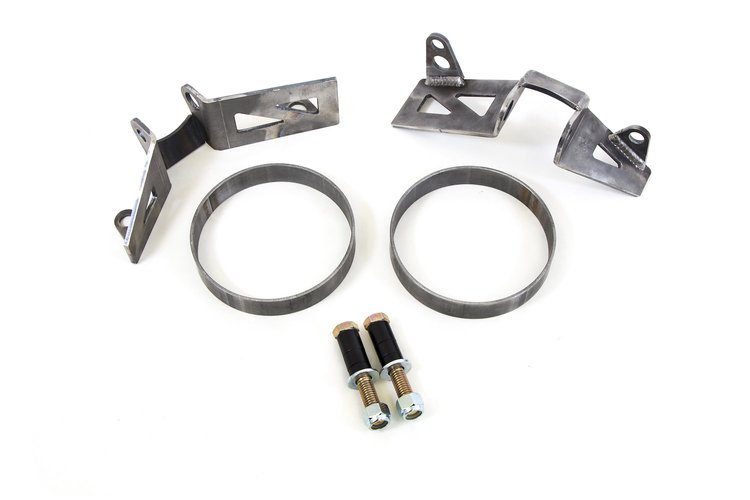

970-1981 Camaro and Firebird Extended Coilover Mount is used to mount a true racing coilover into the front of your 2nd Gen F-Body. This weld-in upper coilover mount kit locates a 2-½" racing coilover in the proper location for use with UMI's adjustable lower arm or most aftermarket coilover compatible arms. The kit features strong 3/16" laser cut construction, quick-align mounting bolt, a 5-1/2" reinforcement ring and templates for trimming the frame. Cutting and welding is required and installation by an experienced fabricator is recommended.

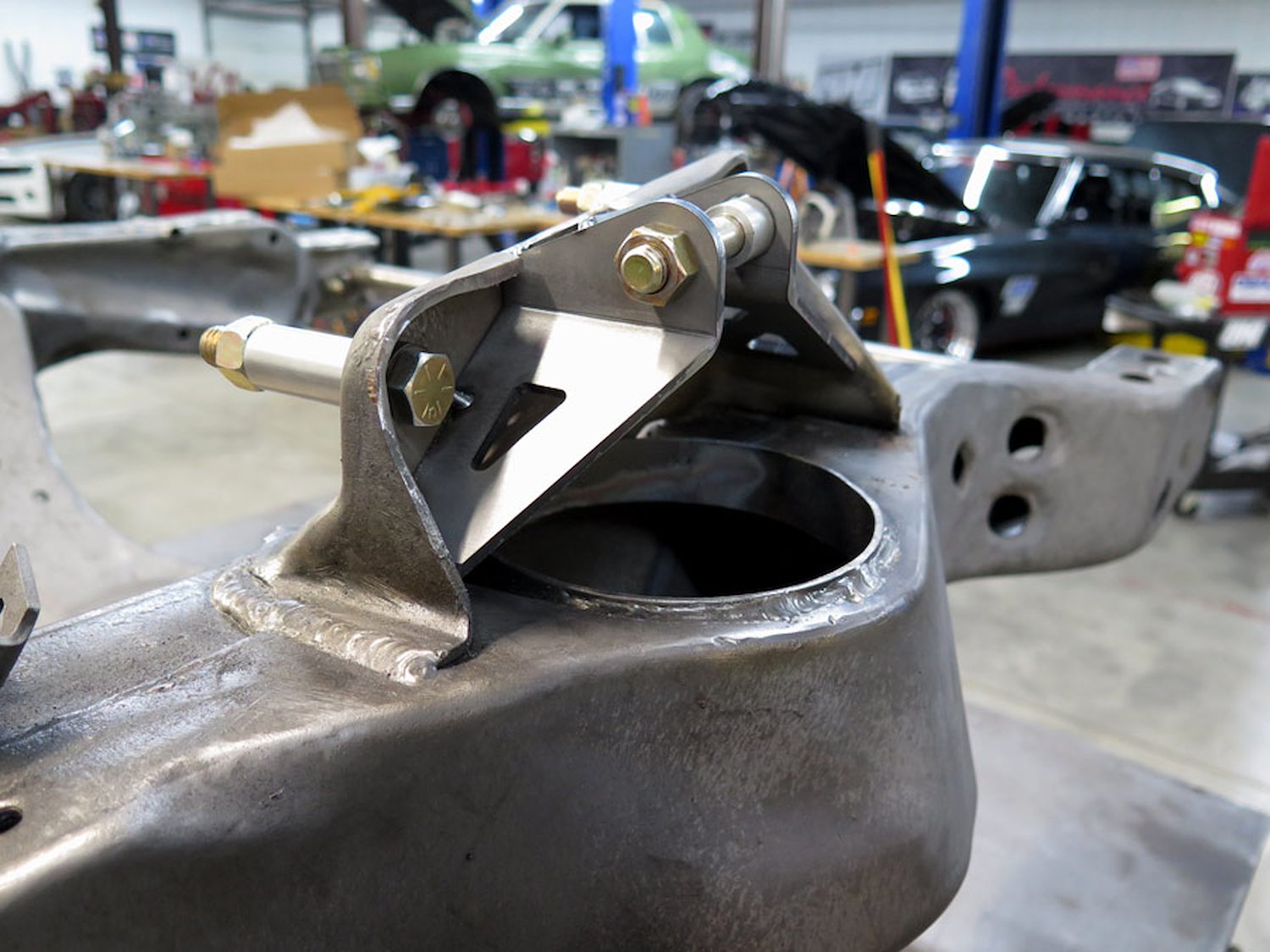

- UMI Performance Weld-In Front Coil-Over Conversion Brackets are intended for use on high-end, high-performance Pro-Touring applications. They provide a double shear upper attachment point for a true 2-1/2" racing coil-over shock and spring. Brackets bolt to the upper A-arm mount in order to properly locate the unit for welding.Features
- For High-End, High-Performance Pro-Touring Applications
- Provides Double Shear Upper Attachment Point
- Weld-In
Part TypeShock Absorber Housing Bracket
Product LineUMI Performance Weld-In Front Coil-Over Conversion Brackets
BrandUMI PERFORMANCE
Package Height6.7
Package Width12.2
Package Length16.7
Weight5.03 PG
Part CategoryPerformance Parts
Part FitmentDirect Fit
Vendor Part Number2661
Package Qty1
Package TypeEA
