Made in USA
303133-R Front Upper & Lower A-Arm Kit 1978-1988 GM G-Body
InfoVehicle Info Needed
UMI PERFORMANCEPART NUMBER: 236-303133-R

303133-R Front Upper & Lower A-Arm Kit 1978-1988 GM G-Body

Color:

Red
$1,32999
ShippingShips on 12/30/2026
Lowest PriceLowest Price Guarantee

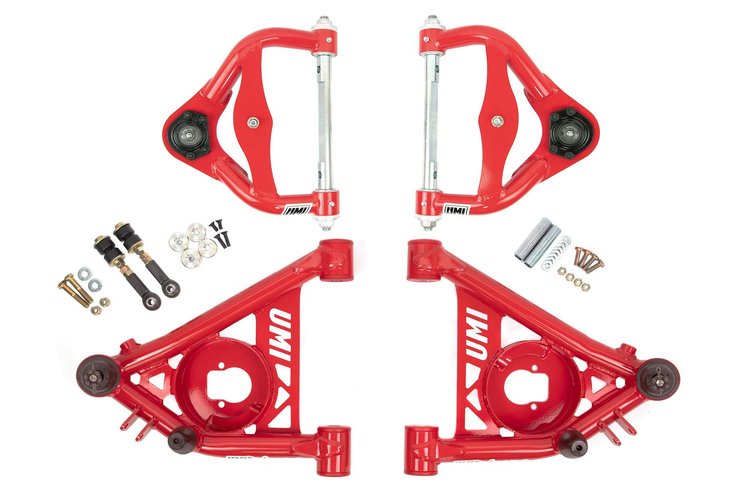

Front Upper & Lower A-Arm Kit
Front Upper & Lower A-Arm Kit
  • 1978-1988 GM G-Body
  • Standard Ball Joints
  • Red
    Includes:
  • (1) Set Tubular Lower A-Arms
  • (1) Set Tubular Upper A-Arms

    303133-R Notes:

    • Only works with QA1, Viking, or Aldan coil-overs with T-bar style bottom.
  • Precise Handling & Smooth Suspension

    Improve the performance of your vehicle with UMI Performance Upper & Lower Tubular A-Arms. The lower a-arms work with most popular springs and coil-overs with tubular construction with greaseable polyurethane bushings for precise handling and smooth suspension. Optional Delrin bushings offer additional precision and decreased friction. The ball joint mount is angled to permit usage with lowered vehicles along with additional wheel clearance. The upper a-arms include Delrin bushings with billet chromoly cross shafts. The relocated ball joint mounting pad increases caster, steering feel and stability without excessive shims and can be loaded with 1/2" taller upper ball joints for improve camber performance. Available powdercoated red or black.

    Show More

    Features:

    • Tubing is Precision Bent & CNC Machined
    • Jig Built & TIG Welded
    • New premium ball joints installed
    • Greaseable & fluted polyurethane bushings
    • Polyurethane bump stops & spring isolators
    • Easy Bolt-on Installation
    • Powdercoated Finish
    Part TypeControl Arm Kit
    Product LineUMI Performance Tubular Front Upper & Lower A-Arms
    BrandUMI PERFORMANCE
    Package Height16.1
    Package Width16.8
    Package Length20.2
    Weight48.75 PG
    Part CategoryPerformance Parts
    Grease Fitting IncludedYes
    Pre-GreasedNo
    Ball Joint IncludedYes
    ConstructionTubular
    Bushing ColorRed
    ColorRed
    Mounting Hardware IncludedNo
    MaterialSteel
    Mounting MethodBolt On
    AdjustableNo
    Upper Bushing MaterialDelrin
    Suspension Grade TypePerformance
    Lower Bushing MaterialPolyurethane
    Part FitmentDirect Fit
    FinishRed Powdercoated
    Bushings IncludedYes
    Vendor Part Number303133-R
    Package Qty1
    Package TypeEA
