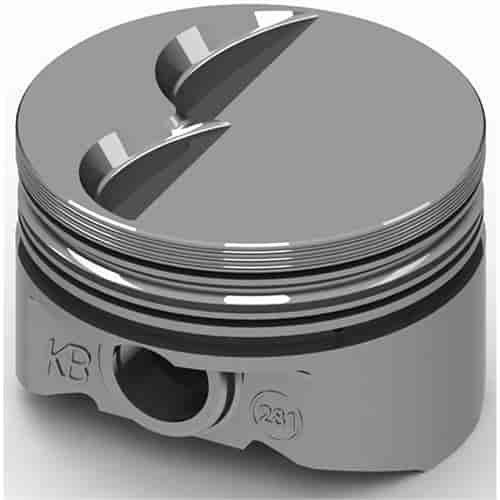

Ford 302ciFlat Top Pistons
Ford 302ci Hypereutectic Piston and King KitFlat Top Lightweight 4.060'' Bore (.060") Use w/5.090'' Connecting Rod & 3.000'' Crank Stroke Comp. Ratio: 10.0/54cc; 9.6/58cc; 9.0/64cc; 8.5/69cc 8/pkg
Technical Specs:
- Alloy: Hypereutectic 390
- Bore: 4.060'
- Crankshaft Stroke: 3.000'
- Connecting Rod Length: 5.090'
- Deck Height: 8.206'
- Compression Height: 1.608'
- Pin Size: 0.9122'
- Pin Location: Centered
- Flat Top: -6.5cc 2V Relief
- Intake Valve Relief: 0.257' Depth / 2.120' Diameter
- Exhaust Valve Relief: 0.247' Depth / 1.880' Diameter
- Top Landing Height: 0.275'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 517/107
- Compression Ratio: 10.0:1 w/54cc Heads; 9.6:1 w/58cc Heads; 9.0:1 w/64cc Heads; 8.5:1 w/69cc Heads
- Includes cast iron moly ring set 648-4000AM8
Part TypePiston Set with Rings
BrandUNITED ENGINE MACHINE
Package Height8.0
Package Width11.5
Package Length23.5
Weight14.955 PG
Part CategoryPerformance Parts
Vendor Part NumberKB281KTM.060
Package Qty1
Package TypeEA
