US MOTOR WORKSPART NUMBER: 275-USEP2059

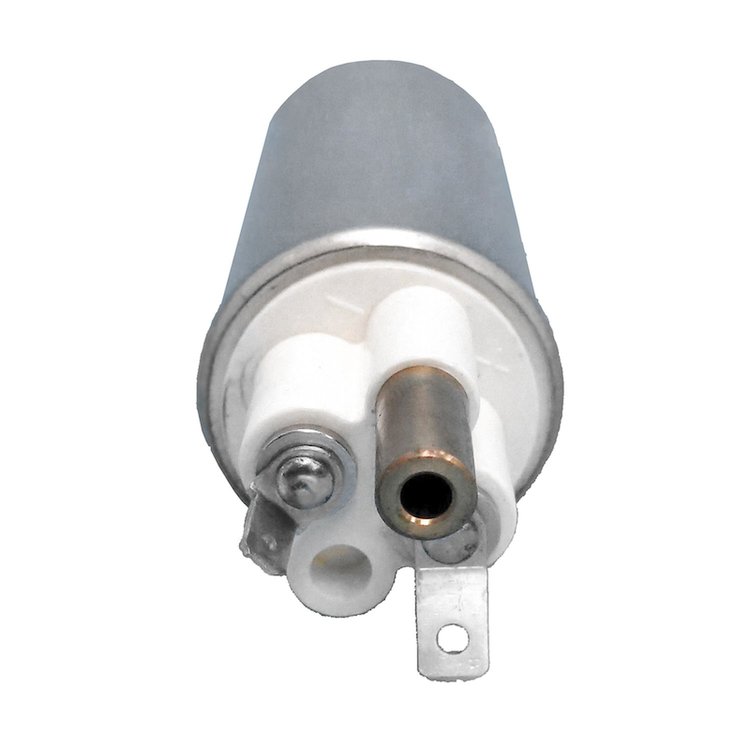

USEP2059 Fuel Pump
$4999
Fuel Pump
US Motor Works USEP2059 Features:
US Motor Works fuel pump kits are designed with quality in mind. All pumps are designed and tested to meet or exceed original equipment specifications.
- Includes all parts for proper installation
- Manufactured from the highest quality new materials for long life and trouble-free performance
- Pressure Min: 100.0 PSI
- Flow Rate Min: 155.0 LPH
- Includes: Hardware Kit. New Strainer included for in tank applications.
- Voltage: 12.0 VDC
- Pressure Max: 110.0 PSI
- Part Interchange Numbers: F1UZ 9H307-AA, F67Z 9H307-AC, F6TZ 9A407-KB, E9TZ 9H307-D, F57Z 9H307-C, F6TZ 9A407-EB, F4TZ 9A407-S, F6TZ 9A407-BA, F6TZ 9A407-AA, E9TZ 9H307-DA, F6PZ 9H307-EC, F1UZ 9H307-A, F3TZ 9A407-A, F0TZ 9H307-M, F67Z 9H307-BB, F7PZ 9H307-BE, F57Z 9H307-CA, F6TZ 9A407-DA, F6TZ 9A407-CA, F4TZ 9A407-D, F6TZ 9A407-BB, F4TZ 9A407-P, F2VZ 9A407-EB, F6TZ 9A407-AB, F2VZ 9A407-EA, F67Z 9H307-AA, F6TZ 9A407-KA, F6TZ 9A407-EA, F57Z 9H307-B, F6TZ 9A407-DB, F57Z 9H307-BA, F4TZ 9A407-R, F6TZ 9A407-CC, F4TZ 9A407-N, F6PZ 9H307-EB, F67Z 9H307-BA, F7PZ 9H307-BA, E2059
- CAUTION! A fuel pump is more susceptible to failure if installed without a new strainer and filter. Warranty valid only if the strainer is replaced at the same time as the fuel pump.
Part TypeFuel Pump
BrandUS MOTOR WORKS
Package Width2.0
Weight2.0 PG
Part CategoryReplacement Parts
Minimum Flow Rating155.0 LPH
Voltage12.0 VDC
Minimum Pressure100 PSI
Part FitmentDirect Fit
Maximum Pressure110 PSI
Package Qty1
Package TypeEA
