Van Compass 7128 Features:

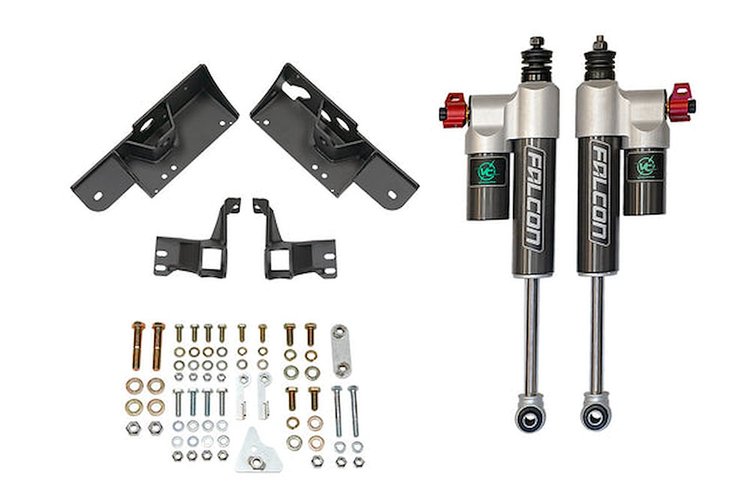

4x4 Sprinters are very capable and versatile vehicles, however many owners have now experienced the stiff factory ride over small bumps and extreme swaying on uneven ruts. Van Compass has developed a custom tuned Falcon shock kit to improve the Sprinters handling both on and off the trail. Our custom tuned Falcon shocks smooth out the harshness experienced on washboard roads and sharp, abrupt impacts. The bounce experienced over large bumps is reduced and the side-to-side sway over uneven surfaces is minimized. Each set of Falcon shocks are specifically to your van weight range.

Aluminum bodied, 2.315" diameter piggy back reservoir shocks offer a huge range of adjustment. The 3.3 fast adjust knob offer quick and easy compression adjustment when the shock is installed. Position one is the lightest setting, great for blasting down washboard roads or rough city streets. Position 2 is a mid-setting with 8 micro adjustments, a great way to dial in the ride and handling setting for driver preference. Position 3 is the firmest setting, used for occasional heavy loads or when driving conditions require the most control. The shocks are manufactured as left and right pairs. The 3.3 fast adjust knob is placed in a spot that is easy to see and adjust.

• High pressure nitrogen charge ensures cavitation free operation
• 10 compression damping settings with the 3.3 fast adjust knob
• Reduced sway and wind buffeting
• Full 2" Damper piston (238% increase over stock)
• 100% bolt on with basic tools
• Controls large and small bumps more effectively than factory shocks
• Increase in comfort and vehicle control
• Internal SP2 free bleed adjustment allows for 2 distinct tune profiles
• Enhanced cornering stability
• 2.3" aluminum body dissipates heat and resists corrosion.
• 3/4" diameter hard chromed shaft resists impact and corrosion.
• Adjustable: Yes
• Adjustable Compression: Yes
• Adjustable Rebound: No
• Boot Included: No
• Bore Diameter: 2 in.
• Gas Charged: Yes
• Grade Type: Performance
• Internal Construction Type: Monotube
• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Recommended Shop Labor Time: 4 hr
• Reservoir Style: Piggyback
• Shaft Diameter: .75 in.
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Shoulder of Stem
• Shock Absorber Rod End Measuring Point: Center of Eyelet
• Shock Mounts Included: Yes
• Tube Outside Diameter: 2.3 in.
• Upper Mount Type: Stem
