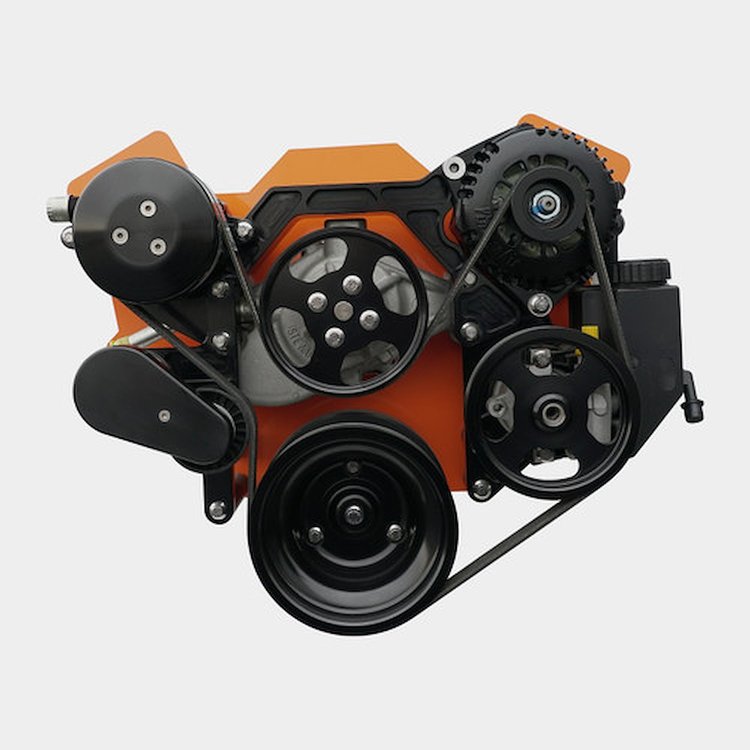

174031 Front Runner Engine Accessory Drive System, Small Block Chevy, Black, w/Power Steering, w/Black Compressor & Alternator
Vintage Air 174031 Front Runner Drive System Features:
- Fits Chevy small-block engines with power steering
- Engineered for maximum performance first
- The essence of form following function, not merely appearance or dress-up components
Vintage Air 174031 Front Runner Drive System Includes:
- (1) Bracket, Main, Anodized
- (1) Bracket, Tensioner, Anodized
- (1) Bracket, Power Steering, Anodized
- (4) Spacer, .409” Length, Anodized
- (1) Spacer, .290” Length, Anodized
- (2) Spacer, .330” Length, Anodized
- (2) Standoff, Tensioner, Anodized
- (2) Standoff, Power Steering Bracket, Anodized
- (1) Tensioner Spacer
- (1) Dowel Pin, 1/4” x 3/4”
- (1) Pulley, Water Pump, Hardcoat
- (1) Pulley, Crankshaft/Harmonic Balancer, Hardcoat
- (1) Pulley, Power Steering, Hardcoat
- (1) Tensioner
- (1) Hardware Kit
- (1) Water Pump with 5/8” Pilot (Reverse Rotation)
- (1) Belt, 61 ½” Serpentine
- (1) Washer, Hat
- (1) Compressor, 6.1 CID Drilled Multi-Groove, Black
- (1) Alternator, 170-Amp, Black
- (1) Power Steering Pump with Integrated Reservoir
- (1) Heater Fitting, 5/8” x 1/2” NPT x 4 ½”, 45°
- (1) Clutch Cover Assembly, Black
- (1) Tensioner Cover Assembly, Black
- (1) Compressor Block, 7B10, Black
- (1) Alternator Cable Kit
- (1) Instruction, SBC Front Runner with and without PS
Vintage Air 174031 Front Runner Drive System Note:
- Designed for OEM-style timing covers, this system may interfere with aftermarket timing covers, which could require slight modification to provide clearance
- On Chevrolet ZZ4 and other crate engines, the composite timing cover may require modification or replacement with a steel timing cover (GM Part # 10243967 or equivalent) to accommodate the standard short water pump included with this kit
- Not compatible with Gen 2 and 5 LT1 engines
One of the most misunderstood and underappreciated components in any automotive drivetrain is the engine accessory drive system. The accessory drive system operates at rotating speeds even higher than the engine's crankshaft. No matter how well built or powerful your engine may be, the engine accessory drive is its life support system. The Vintage Air Front Runner Engine Drive System goes beyond the traditional mounting points on the front of the engine by relocating all accessories onto a component mounting bracket for an integrated mounting approach.
Show More
By eliminating all mounting points beyond the engine block itself and designing a super-compact component package, any intake, exhaust or cylinder head clearance problem becomes non-existent. With a more compact compressor and alternator, as well as standardizing to a high-performance water pump, Vintage Air created the smallest drive package ever commercially available. With a Front Runner Accessory Drive System, any engine swap will be much easier because of improved clearances all around. Front Runner brackets are designed to become an integral part of your engine's block, with a solid, totally rigid platform that virtually eliminates the kind of harmonic vibration that can destroy a conventional engine drive bracket.
Systems come in a variety of colors and finishes, and are available for:
- GM LS
- Small Block Chevy
- Big Block Chevy
- Small Block Ford
- Ford Coyote
Each drive system comes as a complete kit for everything you need in a functioning rotating assembly. Be sure to reference the parts checklist on each kit to see every part included in the system.
Note: the Front Runner Engine Accessory Drive Systems listed on this page are displayed mounted on engines for illustrative purposes only. Vintage Air does not sell complete crate engines. Engines are not included with the sale of a Vintage Air Front Runner Engine Accessory Drive System.
