Vehicle Info Needed175035 Front Runner Engine Accessory Drive System, GM LS7, Dry-Sump, Black/Chrome, with Power Steering
Ships on 10/19/2026
Lowest Price GuaranteeVintage Air 175035 Front Runner Drive System Features:
- Designed for new GM LS crate engine installs
- Front Runner unit increases intake/throttle-body clearance
- Achieves clearance by lowering the water pump and tightening accessory positions
- Elegant, compact mounting for A/C, alternator, and power steering
- System includes a power steering pump with natural finish pump housing, chrome compressor and alternator, hardcoat black pulleys, black clutch and tensioner covers
- USA made, precision cast A356-T6 alloy, water pump housing with integrated compressor, alternator and power steering pump mounting points
- Low profile casting designed to clear OEM and most aftermarket throttle bodies, eliminating need for wedge spacers
- Passages engineered for optimal coolant flow
- Every housing 100% pressure tested
- No modification required to install OEM timing solenoid and related hardware
- Housing tapped for M12 boss for OEM temperature sender
- Includes 6061-T6 billet aluminum water pump cartridge with high performance stamped steel impeller, OEM spec seal, ball roller bearings and steel hub
- Genuine Sanden compressor with machined billet, one-piece compressor O-ring adapter block
- Thermostat housing bore design for LS2 style thermostat
- Casting NPT tapped for side or bottom exit heater hose outlets, moved inboard for increased frame and suspension clearance
- Reduced diameter ATI harmonic balancer for additional clearance below system
- Detroit Speed aluminum body power steering pump
- Mechman 170 amp alternator (140 amp at idle) - 320 amp option available
- Precision machined 6061-T6 billet pulleys
- ARP 12-point stainless steel bolt and hardware kit
- OEM type belt tensioner with cover
- High-performance serpentine drive belt
- Remote-reservoir power steering pump option available

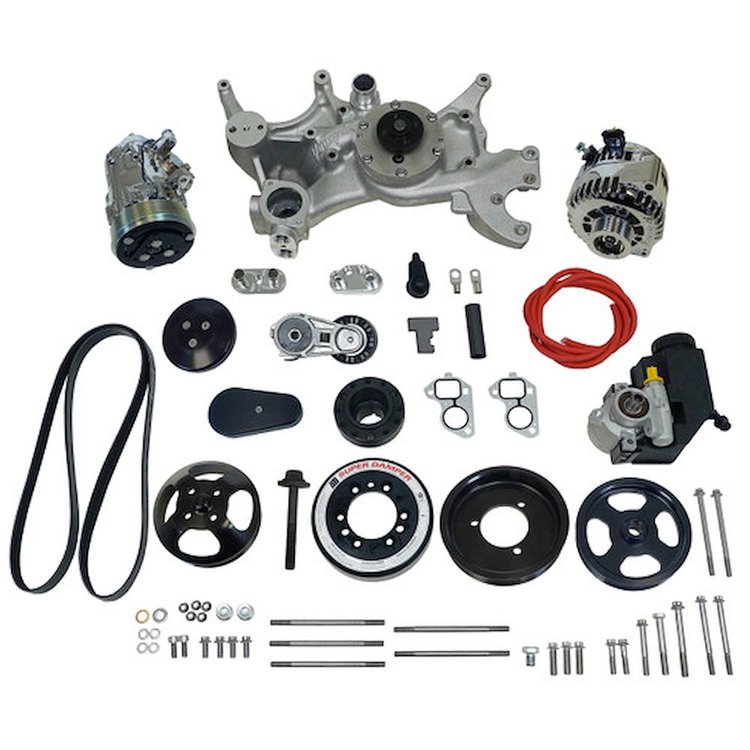

Vintage Air 175035 Front Runner Drive System Includes:
- (1) Casting, Front Runner, LS with Water Pump Cartridge
- (1) Pulley, Water Pump, Black
- (1) Damper, Front Runner
- (1) Pulley, Crankshaft, Black
- (1) Power Steering Pump with Integrated Reservoir
- (1) Pulley, Power Steering, Black
- (1) Tensioner
- (1) Tensioner Cover Assembly, Black
- (1) Alternator, 170-Amp, Chrome
- (1) Alternator Cable Kit
- (1) Compressor, 6.1 CID Drilled Multi-Groove, Chrome
- (1) Compressor Block, Polished
- (1) Clutch Cover Assembly, Black
- (1) Belt, 68” Outer Circumference Serpentine
- (2) Gasket, Water Pump
- (1) Bolt, LS7 Damper
- (1) Heater Barb Block Fitting Kit
- (1) Hardware Kit, Front Runner
- (1) Instructions, LS Front Runner
One of the most misunderstood and underappreciated components in any automotive drivetrain is the engine accessory drive system. The accessory drive system operates at rotating speeds even higher than the engine's crankshaft. No matter how well built or powerful your engine may be, the engine accessory drive is its life support system. The Vintage Air Front Runner Engine Drive System goes beyond the traditional mounting points on the front of the engine by relocating all accessories onto a component mounting bracket for an integrated mounting approach.
Show More
By eliminating all mounting points beyond the engine block itself and designing a super-compact component package, any intake, exhaust or cylinder head clearance problem becomes non-existent. With a more compact compressor and alternator, as well as standardizing to a high-performance water pump, Vintage Air created the smallest drive package ever commercially available. With a Front Runner Accessory Drive System, any engine swap will be much easier because of improved clearances all around. Front Runner brackets are designed to become an integral part of your engine's block, with a solid, totally rigid platform that virtually eliminates the kind of harmonic vibration that can destroy a conventional engine drive bracket.
Systems come in a variety of colors and finishes, and are available for:
- GM LS
- Small Block Chevy
- Big Block Chevy
- Small Block Ford
- Ford Coyote
Each drive system comes as a complete kit for everything you need in a functioning rotating assembly. Be sure to reference the parts checklist on each kit to see every part included in the system.
Note: the Front Runner Engine Accessory Drive Systems listed on this page are displayed mounted on engines for illustrative purposes only. Vintage Air does not sell complete crate engines. Engines are not included with the sale of a Vintage Air Front Runner Engine Accessory Drive System.
