![ST1G3583 Gen2 67/62 CAST GT-Series Turbocharger, 2.50 in. V-Band Inlet Flange, 0.83 A/R Ratio [External Wastegate]](https://www.jegs.com/images/mini_750/600/661/661-st1g3583.jpg)
Vehicle Info NeededVS RACINGPART NUMBER: 661-ST1G3583

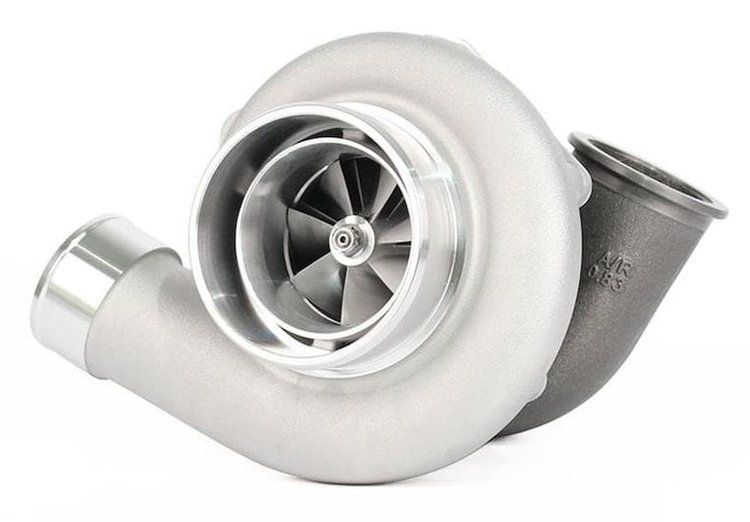

ST1G3583 Gen2 67/62 CAST GT-Series Turbocharger, 2.50 in. V-Band Inlet Flange, 0.83 A/R Ratio [External Wastegate]
$37710$419.00You Save$41.90
Ships on 09/16/2026
Lowest Price GuaranteeGT-Series
Gen2 67/62 CAST GT-Series TurbochargerInlet Flange: 2.50 in. V-Band Outlet Flange: 3 in. V-Band A/R Ratio: 0.83 Compressor Wheel Inducer: 67 mm Turbine Wheel Exducer: 62 mm Oil Cooled External Wastegate Natural Finish
VS Racing ST1G3583 Features:
- Works well for single turbo 4-cylinder builds or twin turbo V8 engine combinations
- Rated to 700 flywheel HP
- Bearing Style: Journal Bearing
- Volute Type: Open
- Compressor Outlet Style: Slip Fit
- Ported Compressor Housing: Yes
- Wastegate Actuator Included: No
- Exhaust Adapter Included: No
- Intake Adapter Included: No
- Oil Adapters Included: No
- Compressor Housing Material: Aluminum
- Turbine Housing Material: Cast Iron
- Sold Individually
VS Racing ST1G3583 Notes:
- 7/16 in.-24 inverted flare to 4an oil feed. GT35 drain flange
Part TypeTurbocharger
BrandVS RACING
Package Height12.1
Package Width13.7
Package Length19.5
Weight19.77 PG
Part CategoryPerformance Parts
Wastegate Actuator IncludedNo
Compressor Outlet StyleSlip Fit
Ported Compressor HousingYes
Compressor Housing MaterialAluminum
Oil Adapters IncludedNo
Bearing TypeJournal Bearing
QuantitySold Individually
Center Housing Cooling TypeOil
Part FitmentUniversal
Volute TypeOpen
Turbine Housing MaterialCast Iron
Maximum Horsepower700
Vendor Part NumberST1G3583
Package Qty1
Package TypeEA
