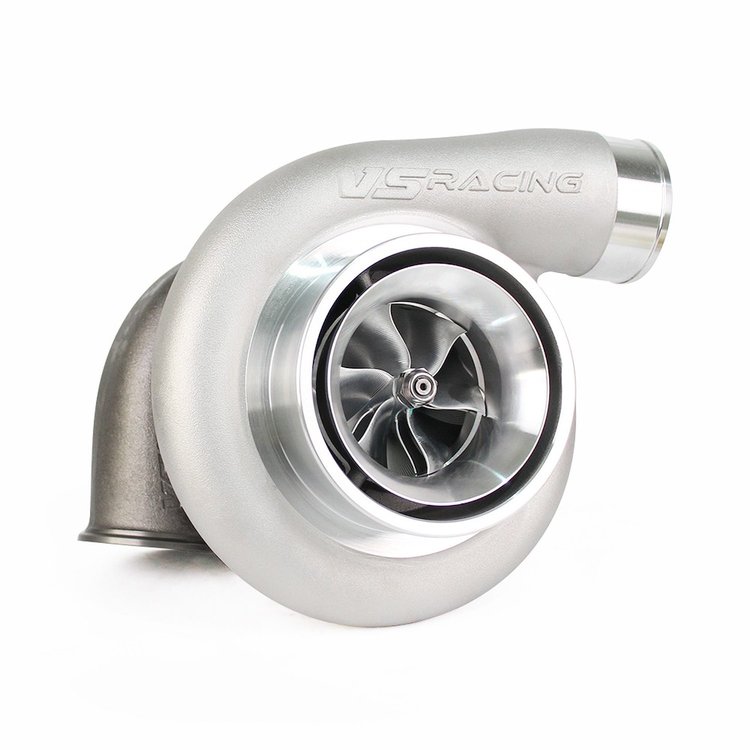

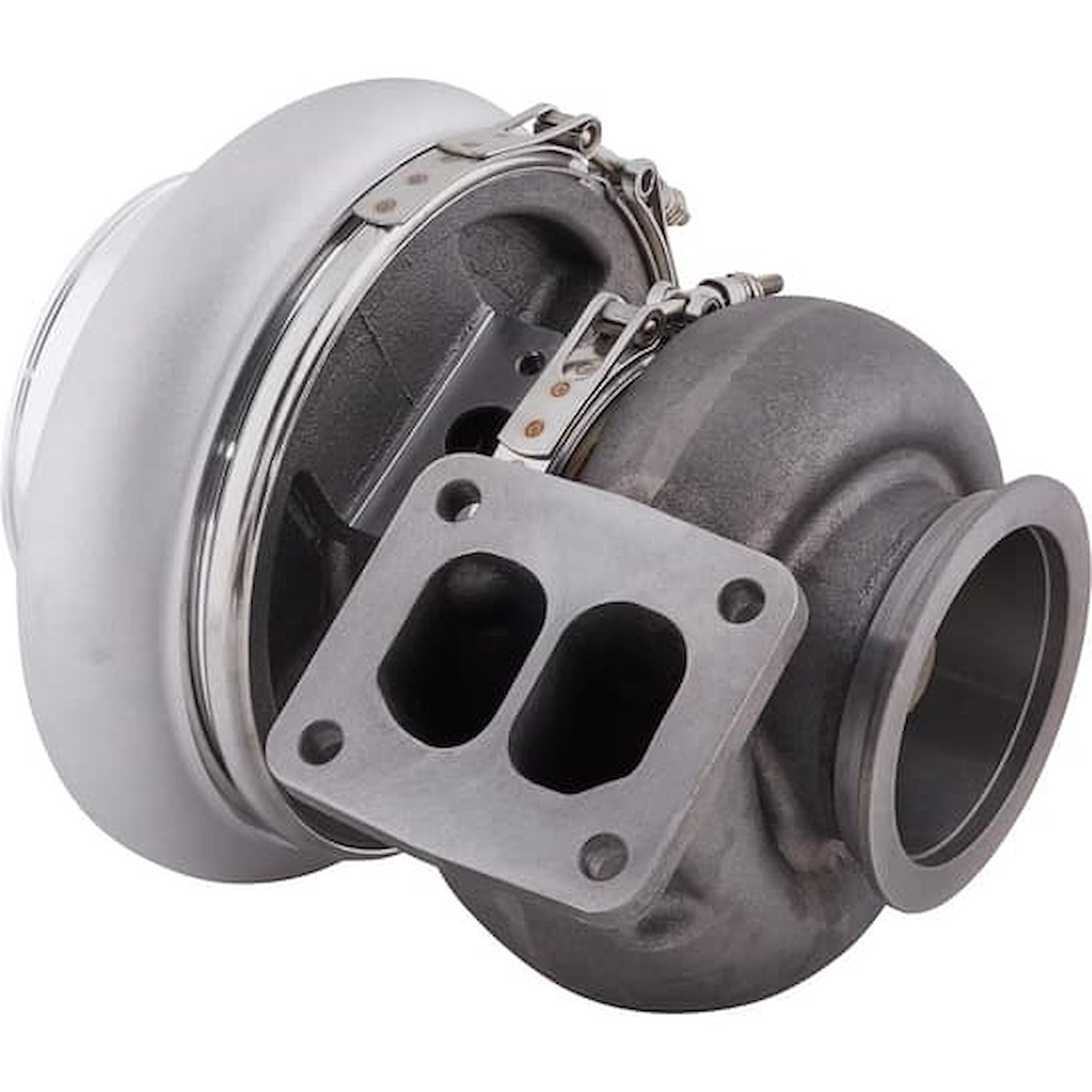

VSR85T6BLT 85 mm Billet S400 Series Turbocharger, T6 Inlet Flange, 1.32 A/R Ratio [External Wastegate]
InfoVehicle Info Needed
VS RACINGPART NUMBER: 661-VSR85T6BLT

VSR85T6BLT 85 mm Billet S400 Series Turbocharger, T6 Inlet Flange, 1.32 A/R Ratio [External Wastegate]

$89900
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Stainless Steel Quick Release V-Band Clamp & Flanges 5 in.

JEGS

Stainless Steel Quick Release V-Band Clamp & Flanges 5 in.

Part Number : 555-30866
$4799$51.79
You Save$3.80
Boost Gauge LED Digital [Black Bezel, Black Face, Red Numbers]

JEGS

Boost Gauge LED Digital [Black Bezel, Black Face, Red Numbers]

Part Number : 555-41463
$8999$98.99
You Save$9.00
123-Piece Tool Set with Carry Case

JEGS

123-Piece Tool Set with Carry Case

Part Number : 555-80427
$3199$51.99
You Save$20.00
Fender Cover with Pocket [23 in. W x 31 1/2 in. L]

JEGS

Fender Cover with Pocket [23 in. W x 31 1/2 in. L]

Part Number : 555-65010
$839$16.99
You Save$8.60

S400-Series
85 mm Billet S400 Series Turbocharger
  • Inlet Flange: T6
  • Outlet Flange: 5 in. V-Band
  • A/R Ratio: 1.32
  • Compressor Wheel Inducer: 85 mm
  • Turbine Wheel Exducer: 88 mm
  • Oil Cooled
  • External Wastegate
  • Natural Finish

    VS Racing VSR85T6BLT Features:

    • Works well for single turbo GM LS swap builds or most any V8 engine combination
    • Rated to 1,350 flywheel HP
    • Bearing Style: Journal Bearing
    • Volute Type: Divided
    • Compressor Outlet Style: Slip Fit
    • Ported Compressor Housing: Yes
    • Wastegate Actuator Included: No
    • Exhaust Adapter Included: No
    • Intake Adapter Included: No
    • Oil Adapters Included: No
    • Compressor Housing Material: Aluminum
    • Turbine Housing Material: Cast Iron
    • Sold Individually

    VS Racing VSR85T6BLT Notes:

    • Marmon-style flange
    • Not All Turbo's are Created Equal

      VS Racing provides a diverse selection of turbochargers designed to power your custom engine build, swap, or upgrade to the finish line. Engineered for high performance and reliability, these turbochargers feature precision-machined housings, lightweight compressor wheels, premium bearings, and user-friendly inlet/outlet connections for seamless installation. With options supporting 500 to over 1,000 horsepower, you can find the perfect turbo to match your performance goals.

    Part TypeTurbocharger
    Product LineVS Racing Turbochargers
    BrandVS RACING
    Package Height16.0
    Package Width16.0
    Package Length16.0
    Weight49.0 PG
    Part CategoryPerformance Parts
    Wastegate Actuator IncludedNo
    Compressor Outlet StyleSlip Fit
    Ported Compressor HousingYes
    Compressor Housing MaterialAluminum
    Oil Adapters IncludedNo
    Bearing TypeJournal Bearing
    QuantitySold Individually
    Center Housing Cooling TypeOil
    Part FitmentUniversal
    Volute TypeDivided
    Turbine Housing MaterialCast Iron
    Maximum Horsepower1,350
    Vendor Part NumberVSR85T6BLT
    Package Qty1
    Package TypeEA
