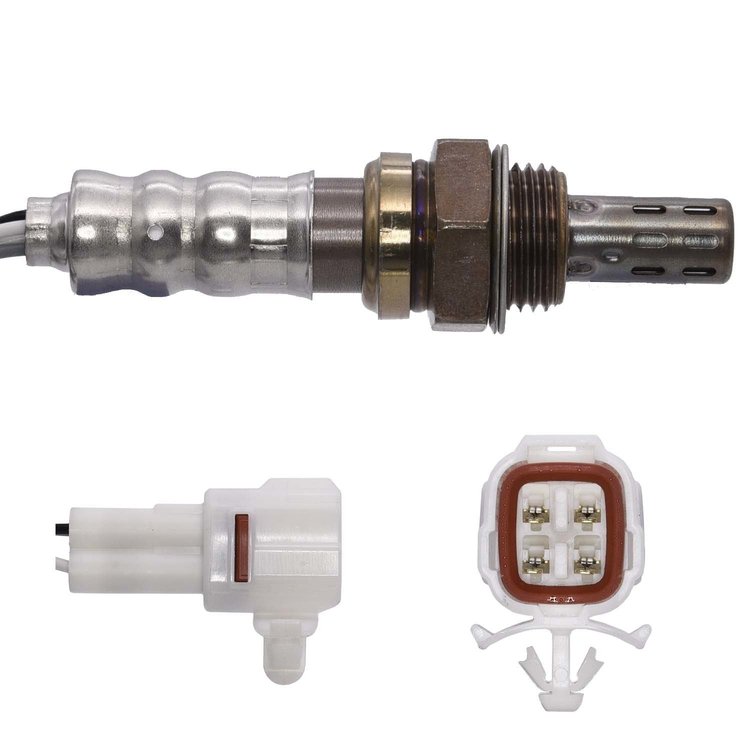

Oxygen Sensor2001-2004 Chevy Tracker, 2001-2005 Suzuki Grand Vitara, 2004 Suzuki Vitara 2.5L V6 Engine 4-Wire Narrow-Band Heated M18x1.5 Thread 600 mm (23.6 in.) Overall Length Female Square Connector Sold Individually
The oxygen sensor installs in the downstream position on 2001-2004 Chevy Tracker, 2001-2005 Suzuki Grand Vitara and 2004 Suzuki Vitara with the 2.5L V6 engine. It signals whether the exhaust is running rich or lean so the engine computer can trim fuel delivery. A built-in heater brings the element to operating temperature quickly after a cold start.
Walker Products 250-241120 Oxygen Sensor Features:
- Fits 2001-2004 Chevy Tracker; 2001-2005 Suzuki Grand Vitara; 2004 Suzuki Vitara with the 2.5L V6 engine
- 4-wire narrow-band oxygen sensor
- Built-in heater for fast warm-up
- M18x1.5 threaded mounting with a 22 mm hex, 600 mm (23.6 in.) overall length
- Female square connector at the harness end with 4 spade terminals
- Platinum electrode layer with a protective coating against combustion residue
Part TypeOxygen Sensor
BrandWALKER PRODUCTS
Package Height1.85
Package Width2.12
Package Length5.75
Weight0.26 PG
Part CategoryReplacement Parts
Wrench Size22
Universal Or Specific FitSpecific
Wire Quantity4
Wire Gauge Measurement20
Terminal TypeSpade
Connector GenderFemale
Overall Length23.62 in. (600mm)
Thread SizeM18 - 1.5
Mounting TypeThreaded
Connector ShapeSquare
Terminal GenderMale
Sensor TypeNarrow-Band
HeatedYes
Terminal Quantity4
Part FitmentDirect Fit
Vendor Part Number250-241120
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
