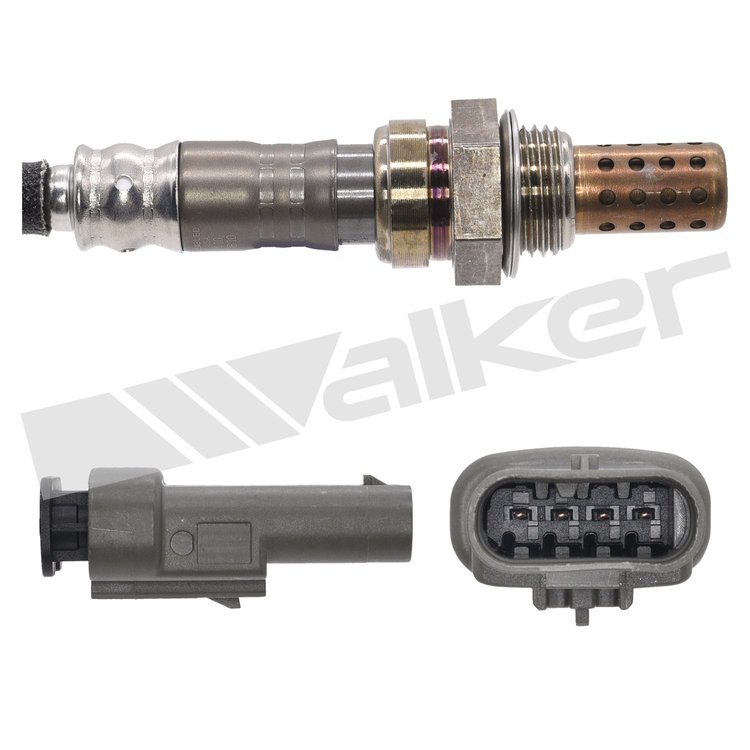

Oxygen Sensor2017-2024 Buick, Cadillac, Chevy, GMC Applications Downstream, Upstream Position 4-Wire Narrow-Band Heated M18x1.5 Thread Female Oblong Connector Sold Individually
The oxygen sensor installs on select 2017-2024 Buick, Cadillac, Chevy and GMC applications. It signals whether the exhaust is running rich or lean so the engine computer can trim fuel delivery. A built-in heater brings the element to operating temperature quickly after a cold start.
Walker Products 250-241268 Oxygen Sensor Features:
- Fits 2017-2019 Buick LaCrosse; 2018-2020 Buick Regal Sportback
- Fits 2021-2024 Cadillac Escalade, Escalade ESV, Chevy Express 3500, Express 4500, Suburban, Tahoe, GMC Savana 2500, Savana 3500, Savana 4500, Yukon, Yukon XL
- Also fits select Buick, Cadillac, Chevy and GMC applications
- Sensor locations by application: B1S1, B2S1 (bank and sensor number)
- Used in both upstream and downstream positions, depending on application
- 4-wire narrow-band oxygen sensor
- Built-in heater for fast warm-up
- M18x1.5 threaded mounting with a 22 mm hex
- Female oblong connector at the harness end with 4 pin terminals
- Platinum electrode layer with a protective coating against combustion residue
Part TypeOxygen Sensor
BrandWALKER PRODUCTS
Package Height2.62
Package Width2.81
Package Length5.12
Weight0.31 PG
Part CategoryReplacement Parts
Wrench Size22
Universal Or Specific FitSpecific
Wire Quantity4
Terminal TypePin
Connector GenderFemale
Thread SizeM18 - 1.5
Connector ShapeOblong
Terminal GenderMale
Sensor TypeNarrow-Band
HeatedYes
Terminal Quantity4
Part FitmentDirect Fit
Vendor Part Number250-241268
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
