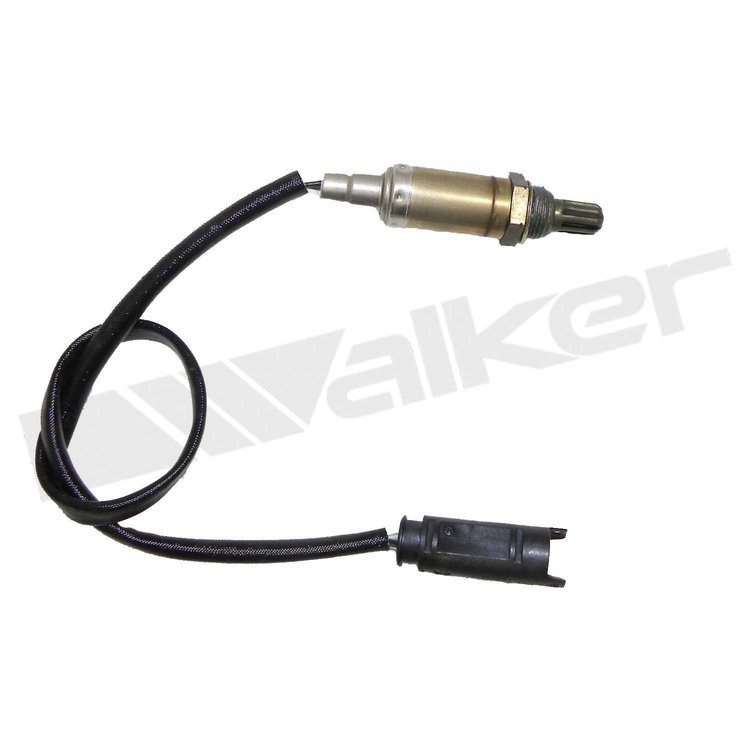

Oxygen Sensor1995-2003 BMW 750iL, 850Ci, 740iL, 840Ci, Z3, 540i, 740i, M5, Z8 4-Wire Narrow-Band Heated M18x1.5 Thread 555 mm (21.9 in.) Overall Length Female Circle Connector Sold Individually
The oxygen sensor installs in the downstream position on select 1995-2003 BMW applications. It signals whether the exhaust is running rich or lean so the engine computer can trim fuel delivery. A built-in heater brings the element to operating temperature quickly after a cold start.
Walker Products 350-34045 Oxygen Sensor Features:
- Fits 1995-1998 BMW 750iL; 1995-1999 BMW 850Ci; 1996-2001 BMW 740iL; 1996-1997 BMW 840Ci; 1996-1998 BMW Z3; 1997-2003 BMW 540i; 1997-2001 BMW 740i; 1999-2003 BMW M5
- Fits 2000-2003 BMW Z8
- Engine coverage includes 1.9L I4, 4.4L V8, 4.8L V8, 4.9L V8, 5.0L V8, 5.4L V12 applications
- Sensor location by application: B1S2 (bank and sensor number)
- 4-wire narrow-band oxygen sensor
- Built-in heater for fast warm-up
- M18x1.5 threaded mounting with a 22 mm hex, 555 mm (21.9 in.) overall length
- Female circle connector at the harness end with 4 bullet terminals
- Platinum electrode layer with a protective coating against combustion residue
Part TypeOxygen Sensor
BrandWALKER PRODUCTS
Package Height1.85
Package Width2.12
Package Length5.75
Weight0.25 PG
Part CategoryReplacement Parts
Wrench Size22
Universal Or Specific FitSpecific
Wire Quantity4
Wire Gauge Measurement20
Terminal TypeBullet
Connector GenderFemale
Overall Length21.85 in. (555mm)
Thread SizeM18 - 1.5
Mounting TypeThreaded
Connector ShapeCircle
Terminal GenderMale
Sensor TypeNarrow-Band
HeatedYes
Wiring Harness Length21.85 in. (555mm)
Terminal Quantity4
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part Number350-34045
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
