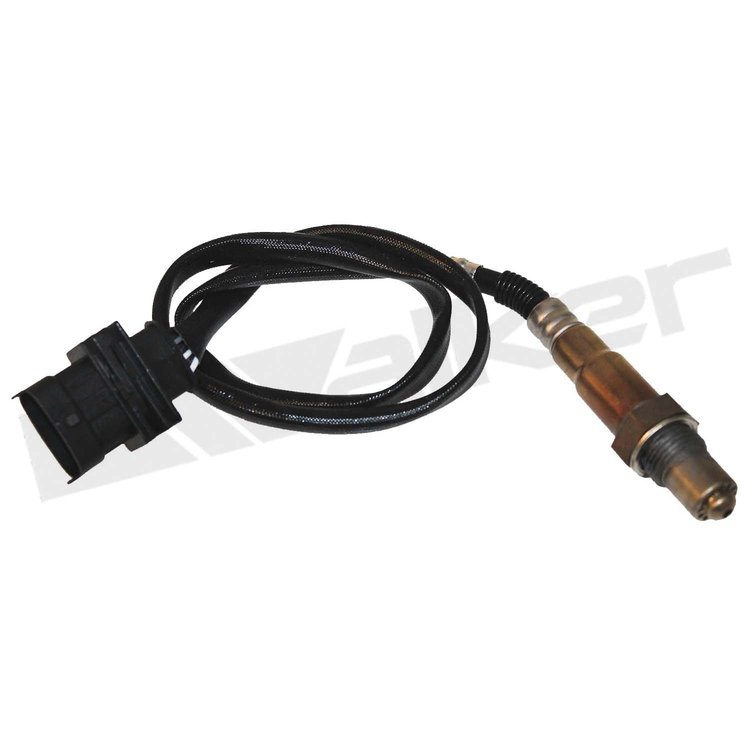

Oxygen Sensor2004-2008 Chevy Astra, 2006-2008 Chevy Vectra 4-Wire Narrow-Band Heated M18x1.5 Thread 700 mm (27.6 in.) Overall Length Female Rectangle Connector Sold Individually
This 4-wire narrow-band oxygen sensor fits 2004-2008 Chevy Astra and 2006-2008 Chevy Vectra in the downstream position and signals whether the exhaust is running rich or lean so the engine computer can trim fuel delivery. A built-in heater brings the element to operating temperature quickly after a cold start.
Walker Products 350-34146 Oxygen Sensor Features:
- Fits 2004-2008 Chevy Astra; 2006-2008 Chevy Vectra
- Engine coverage includes 1.8L I4, 2.0L I4, 2.4L I4, 2.8L V6 applications
- Sensor location by application: B1S2 (bank and sensor number)
- 4-wire narrow-band oxygen sensor
- Built-in heater for fast warm-up
- M18x1.5 threaded mounting with a 22 mm hex, 700 mm (27.6 in.) overall length
- Female rectangle connector at the harness end with 4 spade terminals
- Platinum electrode layer with a protective coating against combustion residue
Part TypeOxygen Sensor
BrandWALKER PRODUCTS
Package Height1.85
Package Width2.12
Package Length5.75
Part CategoryReplacement Parts
Wrench Size22
Universal Or Specific FitSpecific
Wire Quantity4
Wire Gauge Measurement20
Terminal TypeSpade
Connector GenderFemale
Overall Length27.56 in. (700mm)
Thread SizeM18 - 1.5
Mounting TypeThreaded
Connector ShapeRectangle
Terminal GenderMale
Sensor TypeNarrow-Band
HeatedYes
Wiring Harness Length700
Terminal Quantity4
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part Number350-34146
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
