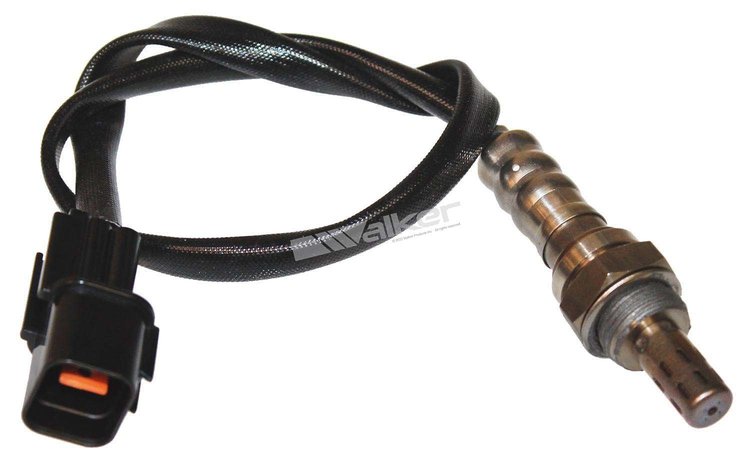

Oxygen Sensor2010-2012 Hyundai Genesis Coupe, 2020 Hyundai Starex Front, Upstream Position 4-Wire Narrow-Band Heated M18x1.5 Thread 475 mm (18.7 in.) Overall Length Male Square Connector Sold Individually
The 4-wire narrow-band oxygen sensor is a replacement sensor for 2010-2012 Hyundai Genesis Coupe and 2020 Hyundai Starex. It signals whether the exhaust is running rich or lean so the engine computer can trim fuel delivery. A built-in heater brings the element to operating temperature quickly after a cold start.
Walker Products 350-34161 Oxygen Sensor Features:
- Fits 2010-2012 Hyundai Genesis Coupe; 2020 Hyundai Starex
- Engine coverage includes 2.0L I4, 2.4L I4 applications
- Sensor location by application: B1S1 (bank and sensor number)
- Used in both upstream and downstream positions, depending on application
- 4-wire narrow-band oxygen sensor
- Built-in heater for fast warm-up
- M18x1.5 threaded mounting with a 22 mm hex, 475 mm (18.7 in.) overall length
- Male square connector at the harness end
- Platinum electrode layer with a protective coating against combustion residue
Part TypeOxygen Sensor
BrandWALKER PRODUCTS
Package Height1.85
Package Width2.12
Package Length5.75
Weight0.28 PG
Part CategoryReplacement Parts
Wrench Size22
Universal Or Specific FitSpecific
Wire Quantity4
Wire Gauge Measurement20
Terminal TypeSpade
Connector GenderMale
Overall Length18.7 in. (475mm)
Thread SizeM18 - 1.5
Mounting TypeThreaded
Connector ShapeSquare
Terminal GenderMale
Sensor TypeNarrow-Band
HeatedYes
Wiring Harness Length475
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part Number350-34161
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
