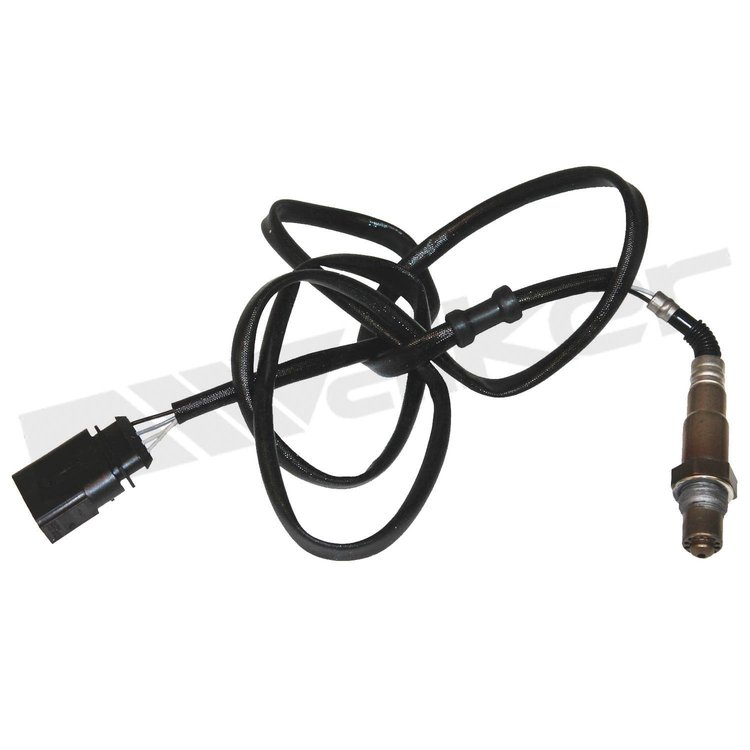

Oxygen Sensor2003-2009 Audi, Bentley, Seat, Volkswagen Applications 4-Wire Narrow-Band Heated M18x1.5 Thread 1525 mm (60 in.) Overall Length Male Oblong Connector Sold Individually
The oxygen sensor installs in the downstream position on select 2003-2009 Audi, Bentley, Seat and Volkswagen applications. It signals whether the exhaust is running rich or lean so the engine computer can trim fuel delivery. A built-in heater brings the element to operating temperature quickly after a cold start.
Walker Products 350-34194 Oxygen Sensor Features:
- Fits 2003 Audi Allroad Quattro, Bentley Continental; 2005-2009 Audi A8 Quattro; 2003-2007 Seat Cordoba; 2005-2008 Seat Ibiza; 2003-2004 Volkswagen R32
- Fits 2004-2007 Volkswagen Touareg
- Engine coverage includes 1.8L I4, 2.0L I4, 3.2L V6, 4.2L V8, 6.0L W12 applications
- Sensor location by application: B1S2 (bank and sensor number)
- 4-wire narrow-band oxygen sensor
- Built-in heater for fast warm-up
- M18x1.5 threaded mounting with a 22 mm hex, 1525 mm (60 in.) overall length
- Male oblong connector at the harness end with 4 spade terminals
- Platinum electrode layer with a protective coating against combustion residue
Part TypeOxygen Sensor
BrandWALKER PRODUCTS
Package Height2.05
Package Width3.9
Package Length5.7
Weight0.26 PG
Part CategoryReplacement Parts
Wrench Size22
Universal Or Specific FitSpecific
Wire Quantity4
Wire Gauge Measurement22
Terminal TypeSpade
Connector GenderMale
Overall Length60.04 in. (1525mm)
Thread SizeM18 - 1.5
Mounting TypeThreaded
Connector ShapeOblong
Terminal GenderMale
Sensor TypeNarrow-Band
HeatedYes
Wiring Harness Length1525
Terminal Quantity4
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part Number350-34194
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
