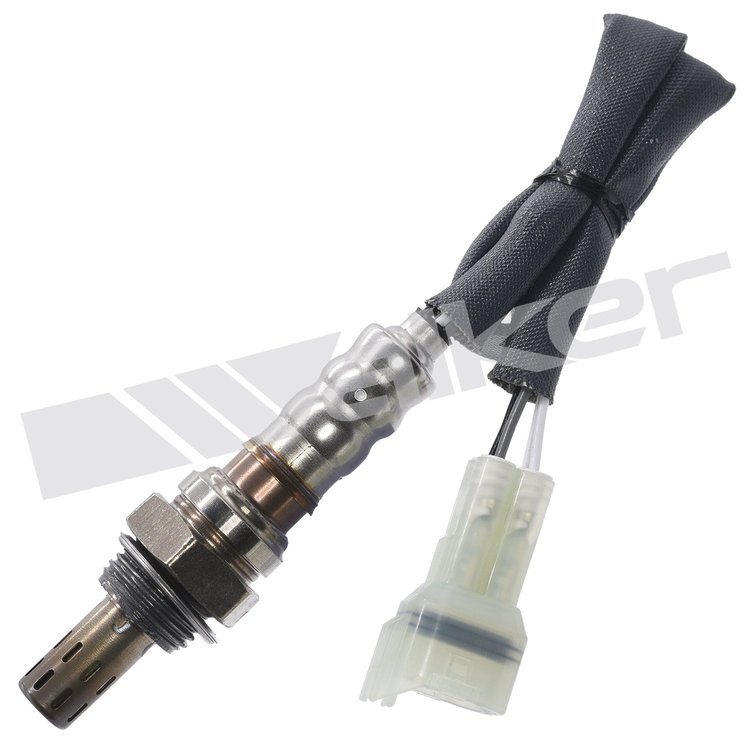

Oxygen Sensor1999-2007 Chevy Tracker, Suzuki Esteem, Grand Vitara, Aerio, Vitara 4-Wire Narrow-Band Heated M18x1.5 Thread 350 mm (13.8 in.) Overall Length Female Square Connector Sold Individually
The 4-wire narrow-band oxygen sensor is a replacement sensor for 2001-2004 Chevy Tracker, 1999-2002 Suzuki Esteem, 2001-2005 Suzuki Grand Vitara, 2002-2007 Suzuki Aerio and 2004 Suzuki Vitara in the upstream position. It signals whether the exhaust is running rich or lean so the engine computer can trim fuel delivery. A built-in heater brings the element to operating temperature quickly after a cold start.
Walker Products 350-34347 Oxygen Sensor Features:
- Fits 2001-2004 Chevy Tracker; 1999-2002 Suzuki Esteem; 2001-2005 Suzuki Grand Vitara; 2002-2007 Suzuki Aerio; 2004 Suzuki Vitara
- Engine coverage includes 1.8L I4, 2.0L I4, 2.3L I4, 2.5L V6 applications
- Sensor location by application: B1S1 (bank and sensor number)
- 4-wire narrow-band oxygen sensor
- Built-in heater for fast warm-up
- M18x1.5 threaded mounting with a 22 mm hex, 350 mm (13.8 in.) overall length
- Female square connector at the harness end
- Platinum electrode layer with a protective coating against combustion residue
Part TypeOxygen Sensor
BrandWALKER PRODUCTS
Package Height1.85
Package Width2.12
Package Length5.75
Weight0.23 PG
Part CategoryReplacement Parts
Wrench Size22
Universal Or Specific FitSpecific
Wire Quantity4
Wire Gauge Measurement20
Terminal TypeSpade
Connector GenderFemale
Overall Length13.78 in. (350mm)
Thread SizeM18 - 1.5
Mounting TypeThreaded
Connector ShapeSquare
Terminal GenderMale
Sensor TypeNarrow-Band
HeatedYes
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part Number350-34347
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
